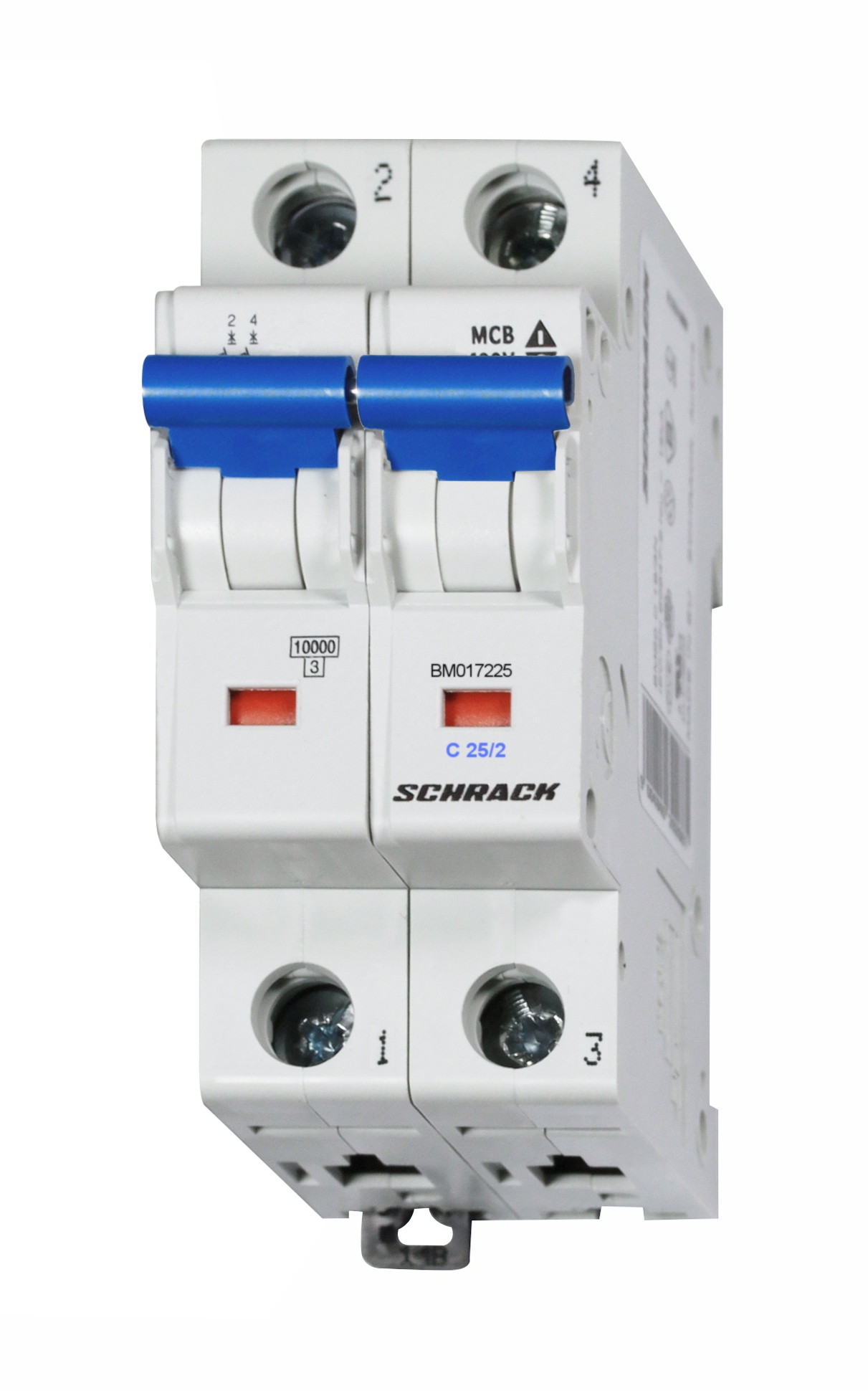

Automatic Circuit Breaker BM C25/2, 10kA

Automatic circuit breaker (modular protective switch) of the BMS0 series is designed to protect electrical circuits from overloads and short circuits. Rated current of 25A with two-pole execution provides protection for two-conductor circuits. Characteristic C determines tripping at a current of 5-10 times the nominal value, making the device universal for use in residential and commercial installations with moderate levels of inrush currents.

Key Parameters:

• Breaking capacity: 10 kA — ensures reliable arc extinction during short circuit
• Execution: AC-MCB (Alternating Current Miniature Circuit Breaker) — for operation in AC networks
• Operating temperature range: from -40°C to +75°C allows use in various climatic conditions
• Power loss: 6.40 W in nominal mode

Constructive Characteristics:

• Compact size: 35.6 × 83.0 × 74.9 mm (width × height × depth)
• Weight: 0.24 kg
• Standard DIN-rail width: 2 modules

Compliance with Standards: The device is designed in accordance with EN 60898-1:2019, EN 60947-2 (editions 2006, 2009, 2013, 2017, 2020) and EN 63000:2018, which guarantees reliability and safety in European standard networks.

Manufacturer: Schrack (Austria) — a well-known supplier of electrical equipment.
