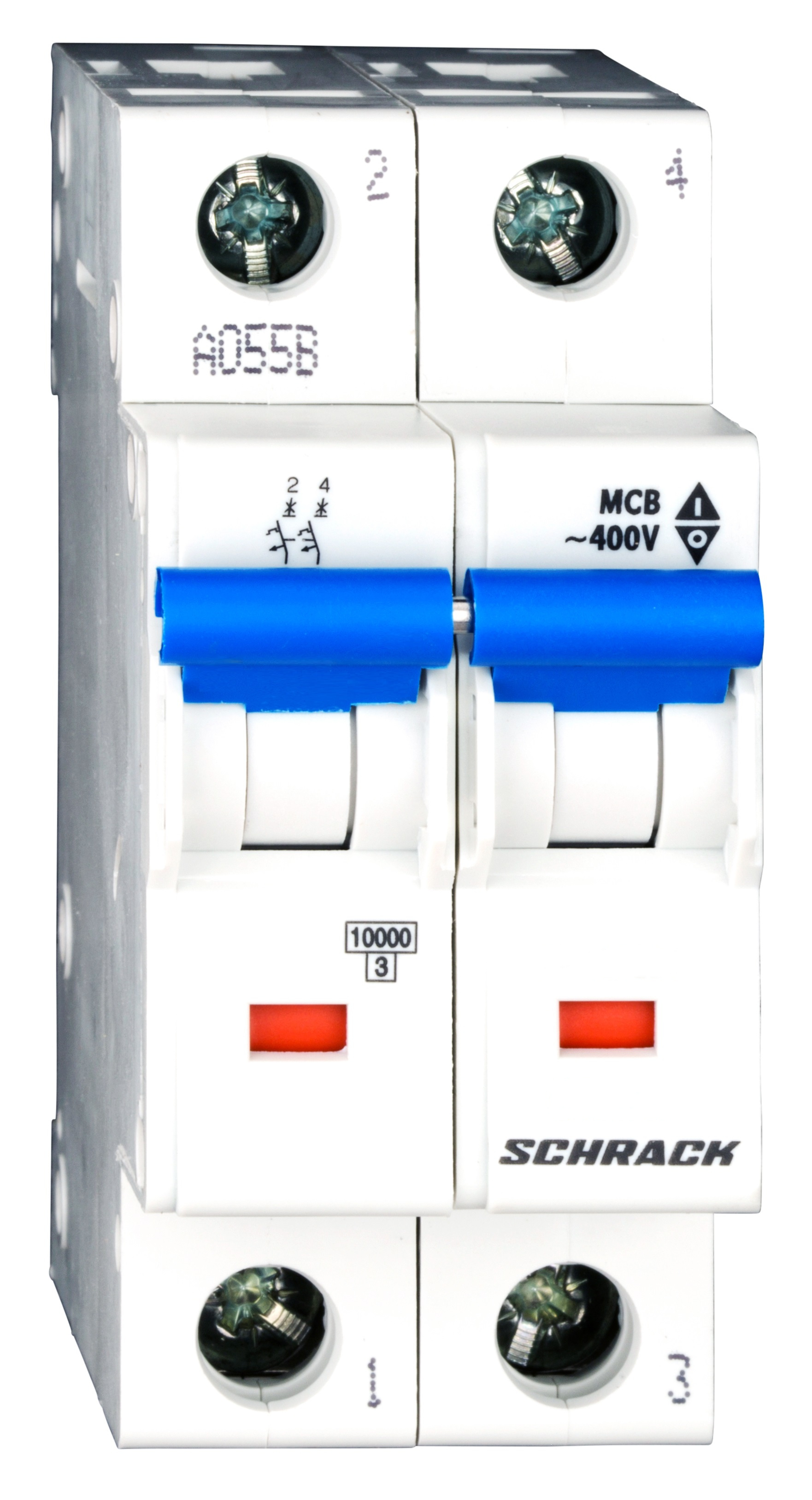

Automatic Circuit Breaker BM ME C40/2, 10kA

Automatic Circuit Breaker BM ME C40/2, 10kA

Article: BM017240ME

Автоматические выключатели BM

8 650 ₸

To order
WhatsAppTelegram

Two-pole automatic circuit breaker (modular MCB) of the BMS0 series manufactured by Schrack for protection of alternating current electrical circuits. Designed for switching and protection against overloads and short circuits in distribution boards and electrical panels.

Main Characteristics:

  • Rated Current: 40A
  • Trip Characteristic: C (for circuits with moderate inrush currents)
  • Breaking Capacity: 10 kA
  • Number of Poles: 2
  • Design: AC-MCB-ME (single-phase modular automatic switch with additional electronics)

Dimensions and Weight:

  • Width: 35.60 mm
  • Height: 83.00 mm
  • Depth: 74.90 mm
  • Net Weight: 0.24 kg

Electrical Parameters:

  • Power Loss: 7.50 W
  • Operating Temperature Range: from -40°C to +75°C

Compliance Standards:

  • EN 60898-1:2019 (Automatic circuit breakers for alternating current)
  • EN 60947-2:2006 + A1:2009 + A2:2013 (Low-voltage switchgear)
  • EN 60947-2:2017 + A1:2020 (Low-voltage switchgear, current edition)
  • EN 63000:2018 (Materials and substances)

Packaging Options: 1 pc., 6 pcs., 60 pcs.

EAN Code: 9004840527193

EAN Code9004840527193
Net Width35.60 mm
Net Height83.00 mm
Net Depth74.90 mm
Net Weight0.24 kg
Power Loss7.50 W
Min. Ambient Temperature-40°C
Max. Ambient Temperature75°C
CharacteristicC
Poles2
Rated Current40 A
TypeBMS0-ME
SeriesBMS0
Breaking Capacity10 kA
DesignAC-MCB-ME
StandardsEN 60898-1:2019, EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018
ManufacturerSchrack
Packaging1 pc., 6 pcs., 60 pcs.
