Automatic circuit breaker BM C50/1+N, 10kA
Article: BM017650--
30 430 ₸
To order

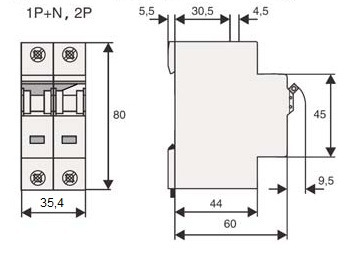

Automatic circuit breaker for protection of alternating current electrical circuits. Parameters: rated current 50 A, breaking capacity 10 kA, configuration 1+N (single-phase + neutral), tripping characteristic C (for mixed loads with elevated inrush currents). Technical data: power loss 5.40 W, operating temperature range from -40°C to +70°C, dimensions 35.6 × 83.0 × 74.9 mm, weight 0.21 kg. Compliance with standards: EN 60898-1:2019 (domestic and similar automatic switches), EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020 (low-voltage switchgear and control gear), EN 63000:2018 (hazardous substances). Mounted on standard DIN rail in distribution panels and switchboards.
| EAN-code | 9004840392586 |
|---|---|
| Width net | 35.60 mm |
| Height net | 83.00 mm |
| Depth net | 74.90 mm |
| Weight net | 0.21 kg |
| Power loss | 5.40 W |
| Min. ambient temperature | -40°C |
| Max. ambient temperature | 70°C |
| Characteristic | C |
| Poles | 1+N |
| Rated current | 50 A |
| Type | BMS0 |
| Series | BMS0 |
| Breaking capacity | 10 kA |
| Design | AC-MCB |
| Standard | EN 60898-1:2019, EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018 |
| Manufacturer | Schrack |
| Packaging | 1 pcs., 6 pcs., 60 pcs. |
