Automatic circuit breaker BM D2/3, 10kA
Article: BM019302--
27 060 ₸
To order
Three-pole automatic circuit breaker of the BMS0 series with a rated current of 2A and a switching capacity of 10kA. The device is designed to protect electrical circuits against overloads and short-circuit currents in AC networks.
Main parameters:
- Rated current: 2A
- Number of poles: 3
- Switching capacity: 10kA
- Trip characteristic: D (for circuits with increased inrush currents)
- Operating voltage: AC (alternating current)
- Power loss: 3.00W at rated current
- Operating temperature range: from -40°C to +75°C

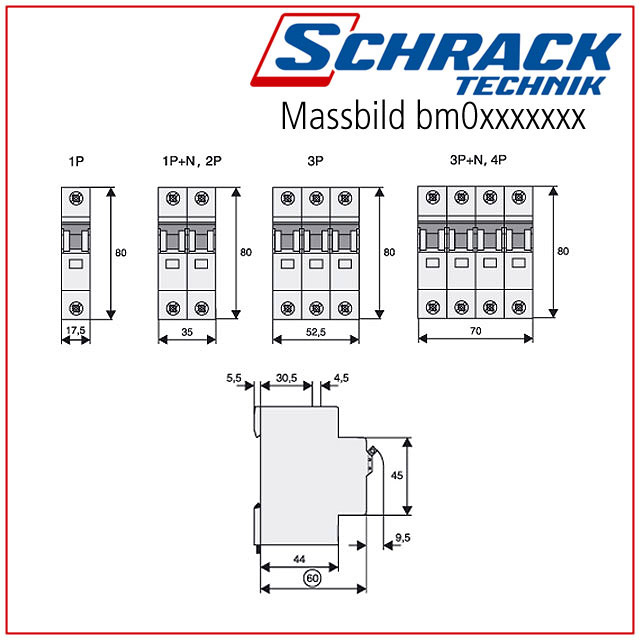

Constructive dimensions:
- Width: 53.40mm
- Height: 83.00mm
- Depth: 74.90mm
- Net weight: 0.37kg
Regulatory basis: Complies with standards EN 60898-1:2019, EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018.
Manufacturer: Schrack (Austrian company, leader in the production of electrical equipment).
Packaging options: 1 piece, 4 pieces, 40 pieces.
| EAN code | 9004840398359 |
|---|---|
| Width net | 53.40mm |
| Height net | 83.00mm |
| Depth net | 74.90mm |
| Net weight | 0.37kg |
| Power loss | 3.00W |
| Min. ambient temperature | -40°C |
| Max. ambient temperature | 75°C |
| Characteristic | D |
| Poles | 3 |
| Rated current | 2A |
| Type | BMS0 |
| Series | BMS0 |
| Switching capacity | 10kA |
| Design | AC-MCB |
| Standard | EN 60898-1:2019, EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018 |
| Manufacturer | Schrack |
| Packaging | 1 piece, 4 pieces, 40 pieces |
