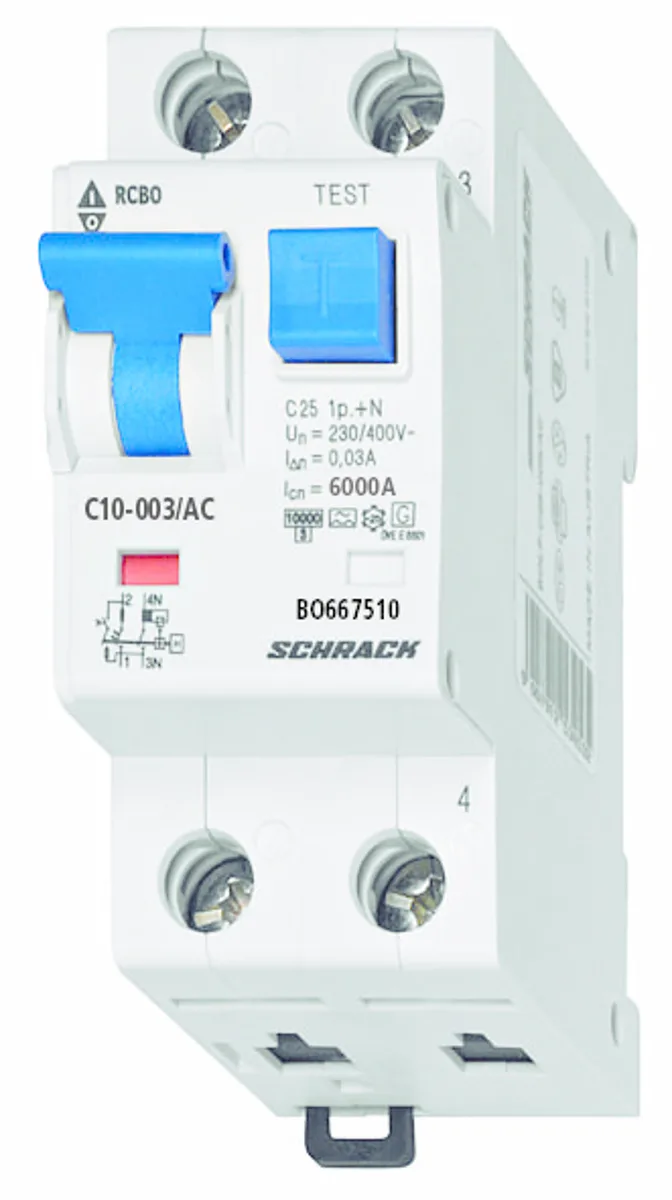

Residual Current Circuit Breaker (RCCB) designed to protect electrical circuits from leakage currents and overloads. The device operates at a residual current of 30 mA and provides reliable protection for personnel against electric shock hazards.
Technical Specifications:
- Rated Current: 10 A
- Configuration: 1+N (single-phase with neutral)
- Rated Sensitivity IΔn: 30 mA
- Trip Type: AC (sensitive to alternating residual current)
- Time Characteristic: C (for protection against impulse overloads)
- Breaking Capacity: 6 kA
- Tripping Capability: instantaneous upon setpoint reach
Dimensions and Parameters:
- Overall Dimensions: 73 × 35 × 86 mm (L × W × H)
- Weight: 0.20 kg
- Power Loss: 2.50 W
- Operating Temperature Range: from -35°C to +60°C
Certification and Standards:
- EN 61009-1:2012 + A12:2006 (safety and functional requirements)
- EN 61009-2-1:1994 + A11:1998 (functional and constructional specification)
Manufacturer: Schrack, BOLF Series
EAN Code: 9004840395556
Packaging Options: 1 piece or 60 pieces
| EAN Code | 9004840395556 |
|---|---|
| Length (net) | 73.00 mm |
| Width (net) | 35.00 mm |
| Height (net) | 86.00 mm |
| Weight (net) | 0.20 kg |
| Power Loss | 2.50 W |
| Min. Ambient Temperature | -35°C |
| Max. Ambient Temperature | 60°C |
| Standard | EN 61009-1:2012 + A12:2006, EN 61009-2-1:1994 + A11:1998 |
| Type | AC (sensitive to alternating current) |
| Trip Type | Instantaneous |
| Rated Sensitivity IΔn | 30 mA |
| Characteristic | C |
| Current Rating | 10 A |
| Poles | 1+N |
| Breaking Capacity | 6 kA |
| Series | BOLF |
| Manufacturer | Schrack |
| Packaging | 1 piece, 60 pieces |
