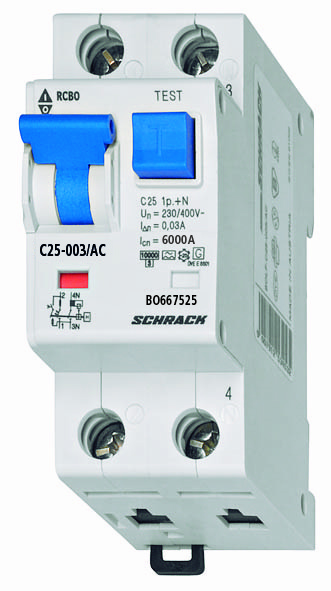

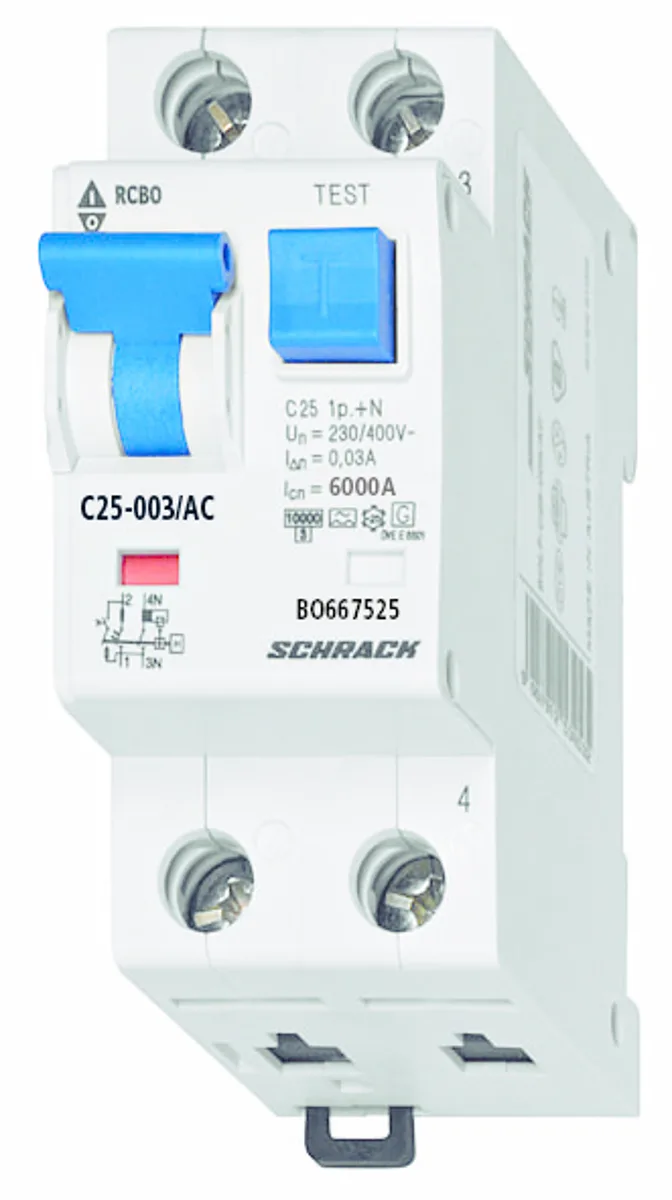

Residual current circuit breaker (RCCB) designed to provide simultaneous protection of electrical circuits against overcurrent and earth leakage. The device trips at rated residual current IΔn = 30 mA and ensures rapid disconnection without delay (instantaneous type). Rated current: 25 A, configuration 1+N (single-phase connection with neutral), breaking capacity 6 kA. Characteristic C indicates trip response at overload current in the range of 5-10 rated currents, making the device suitable for circuits with transient peak loads. Sensitivity type AC — responds to alternating sinusoidal residual currents. Power consumption of the device is 4.80 W. Operating temperature range: -35°C to +60°C. Complies with standards EN 61009-1:2012 + A12:2006 and EN 61009-2-1:1994 + A11:1998. Manufactured by Schrack, BOLF series. Compact dimensions allow mounting on standard DIN rail in distribution cabinets.
| EAN code | 9004840395587 |
|---|---|
| Length (net) | 73.00 mm |
| Width (net) | 35.00 mm |
| Height (net) | 86.00 mm |
| Weight (net) | 0.20 kg |
| Power consumption | 4.80 W |
| Min. ambient temperature | -35°C |
| Max. ambient temperature | 60°C |
| Standard | EN 61009-1:2012 + A12:2006, EN 61009-2-1:1994 + A11:1998 |
| Type | AC (sensitive to alternating current) |
| Type | instantaneous |
| Rated residual sensitivity IΔn | 30 mA |
| Characteristic | C |
| Current rating | 25 A |
| Poles | 1+N |
| Breaking capacity | 6 kA |
| Series | BOLF |
| Manufacturer | Schrack |
| Packaging | 1 pcs., 60 pcs. |
