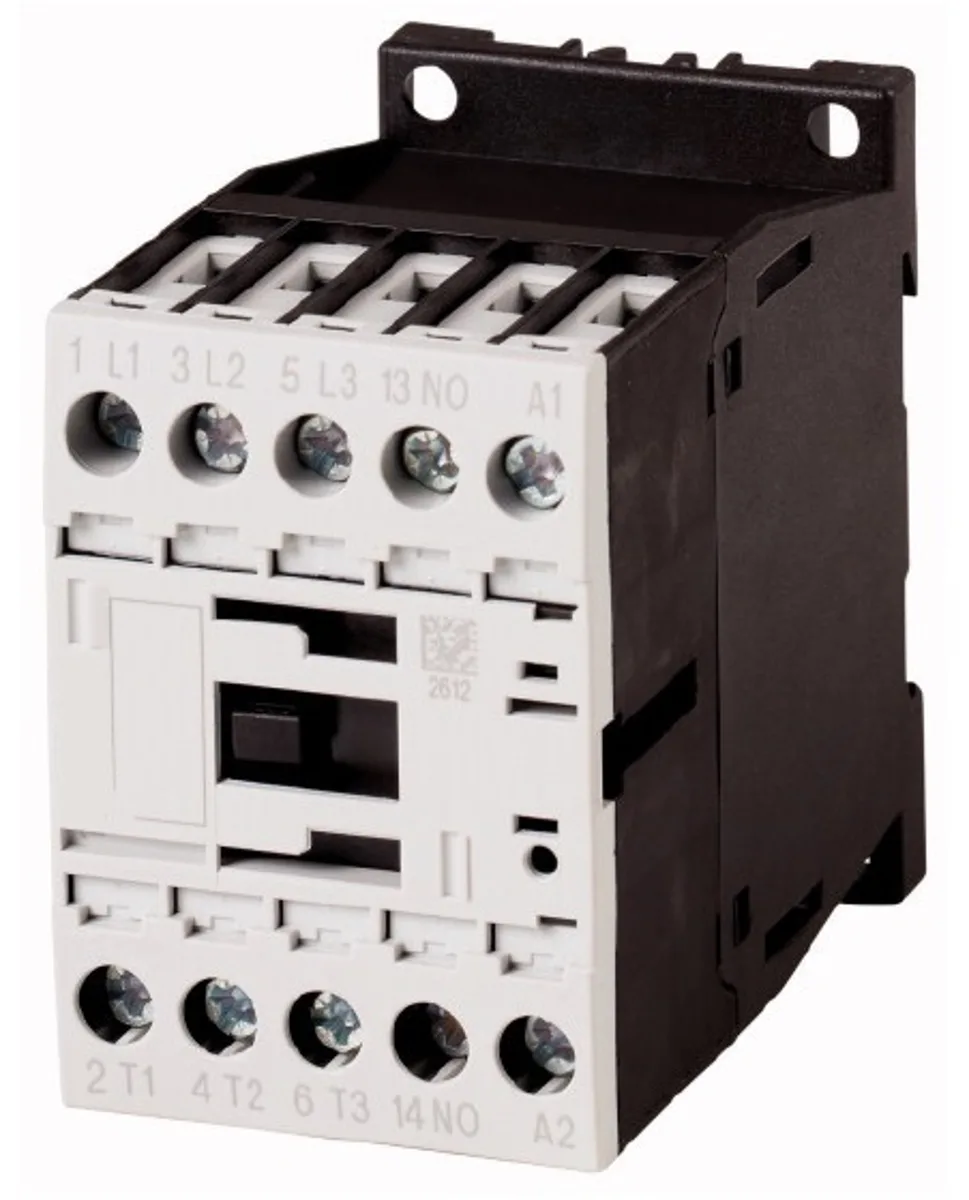

Contactor 7.5kW/400V/15.5A/1NO, 24VDC Coil

Power contactor designed for controlling three-phase asynchronous electric motors with a power rating of 7.5 kW at a voltage of 400 V and a current of 15.5 A. The switching capacity in the AC-3 category is 7.5 kW at 380-400 V.

Design and Contacts:

• Three normally open main contacts (3NO) for power circuit control
• One normally closed auxiliary contact (1NC) for interlocking and signaling functions
• Rated current: 15.5 A

Control and Electromagnetic Coil:

• Control voltage: 24 V direct current (DC)
• Coil power loss: 8.5 W

Dimensions and Weight:

• Width: 45 mm
• Height: 68 mm
• Depth: 75 mm
• Net weight: 0.30 kg

Manufacturer: Schrack

Packaging: supplied in packages of 1 or 102 units.

The contactor complies with industrial application standards and is recommended for direct starting of electric motors in electrical supply control systems.
