Automatic circuit breaker with RCD C20A/1+N, 6kA, 30mA, type A
Article: AK667620--
22 300 ₸
In stock
Two-pole automatic circuit breaker with integrated residual current protection (RCD). The device is designed to provide simultaneous protection of electrical circuits against overloads, short circuits, and dangerous leakage currents to earth.
Main parameters:
- Nominal current: 20 A
- Configuration: 1+N (one pole + neutral)
- Nominal breaking capacity: 6 kA
- Nominal sensitivity IΔn: 30 mA
- Trip characteristic: A (responds to alternating and pulsating DC current)
- Disconnect characteristic: C (instantaneous tripping on overload currents)
- Series: AMPARO
- Manufacturer: Schrack
Technical specifications:
- Complies with EN 61009-1:2012 and IEC 61009-1 standards
- Operating temperature range: -25°C to +60°C
- Power loss: 7.96 W
- Dimensions (L×W×H): 77 × 36 × 85 mm
- Weight: 0.21 kg
- EAN code: 9004840018400
The device provides reliable protection of people against electric shock from both direct and indirect contact, as well as protection of electrical equipment from damage when emergency conditions occur in the network.
| EAN code | 9004840018400 |
|---|---|
| Net length | 77.00 mm |
| Net width | 36.00 mm |
| Net height | 85.00 mm |
| Net weight | 0.21 kg |
| Power loss | 7.96 W |
| Min. ambient temperature | -25°C |
| Max. ambient temperature | 60°C |
| Standard | EN 61009-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2016, EN 61009-2-1:1994 + A11:1998, IEC 61009-1, IEC 61009-2-1 |
| Type (current sensitivity) | A (sensitive to pulsating DC) |
| Type (tripping) | Instantaneous |
| Nominal sensitivity IΔn | 30 mA |
| Characteristic | C |
| Pole | N+1 |
| Breaking capacity | 6 kA |
| Series | AMPARO |
| Manufacturer | Schrack |
| Packaging | 1 pc., 90 pc. |

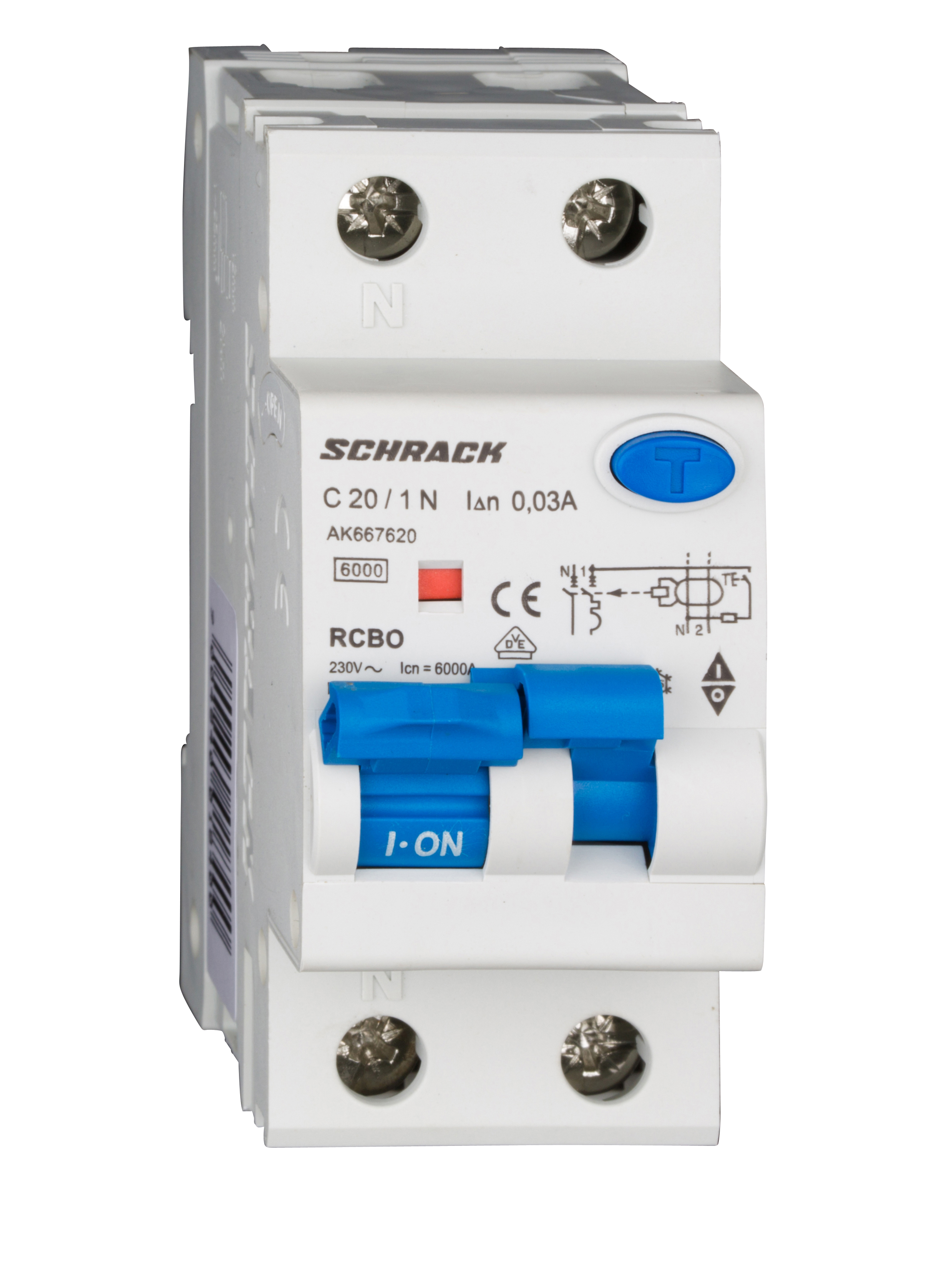

- Photo 1: Automatic circuit breaker with RCD C20A/1+N, 6kA, 30mA, type A (JPG, 1.5 MB)

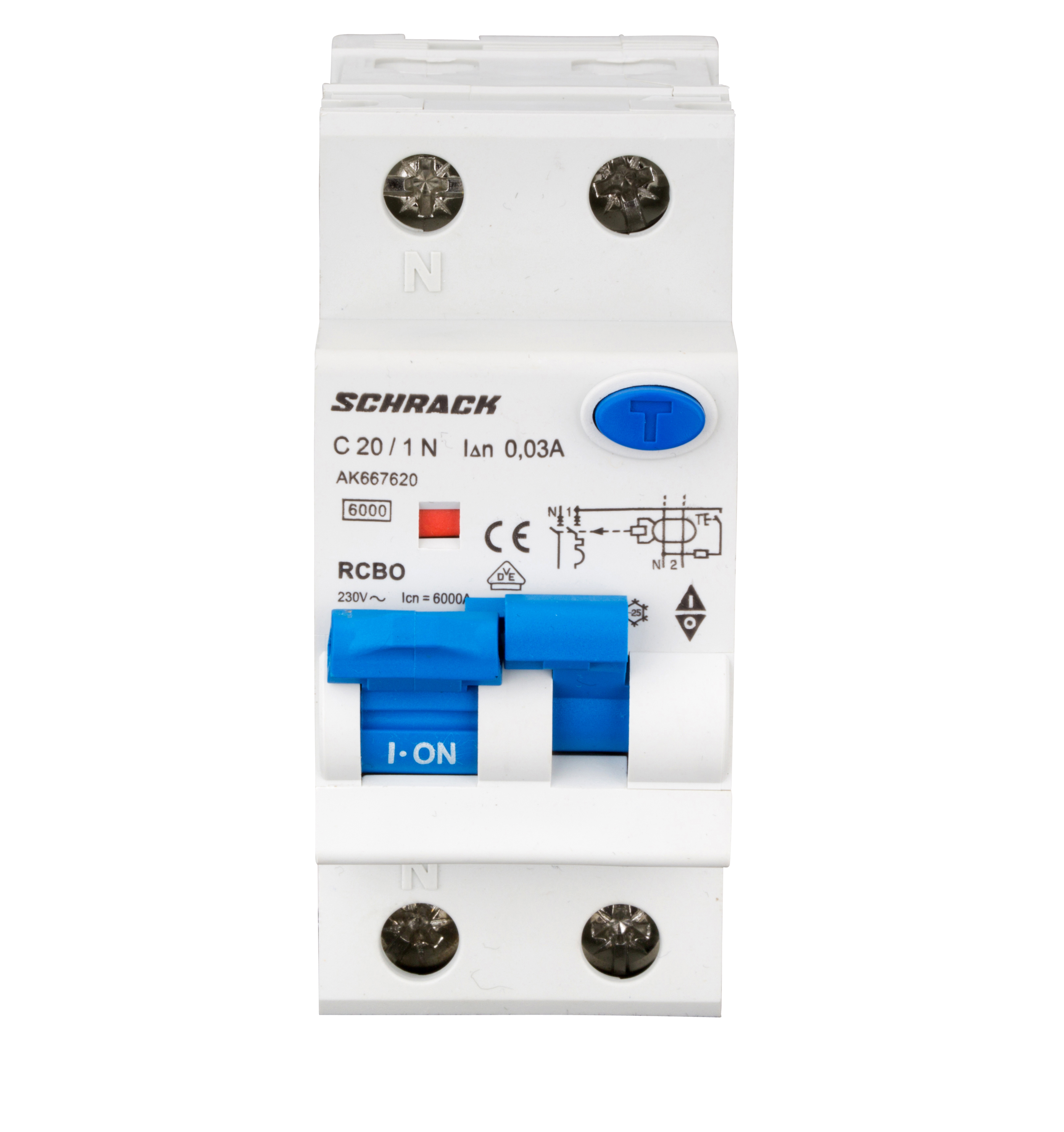

- Photo 2: Automatic circuit breaker with RCD C20A/1+N, 6kA, 30mA, type A (JPG, 1.4 MB)

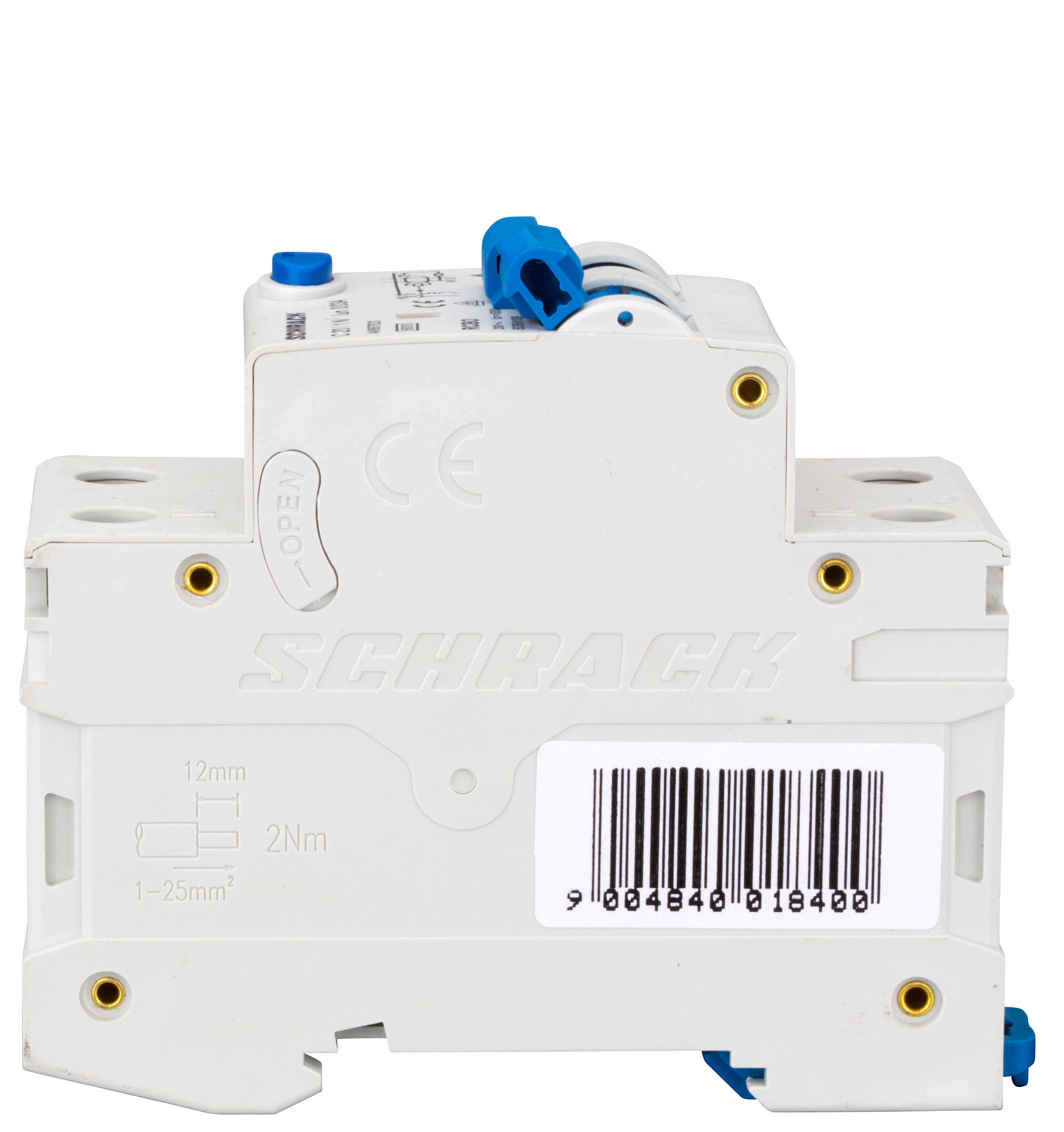

- Photo 3: Automatic circuit breaker with RCD C20A/1+N, 6kA, 30mA, type A (JPG, 2.3 MB)

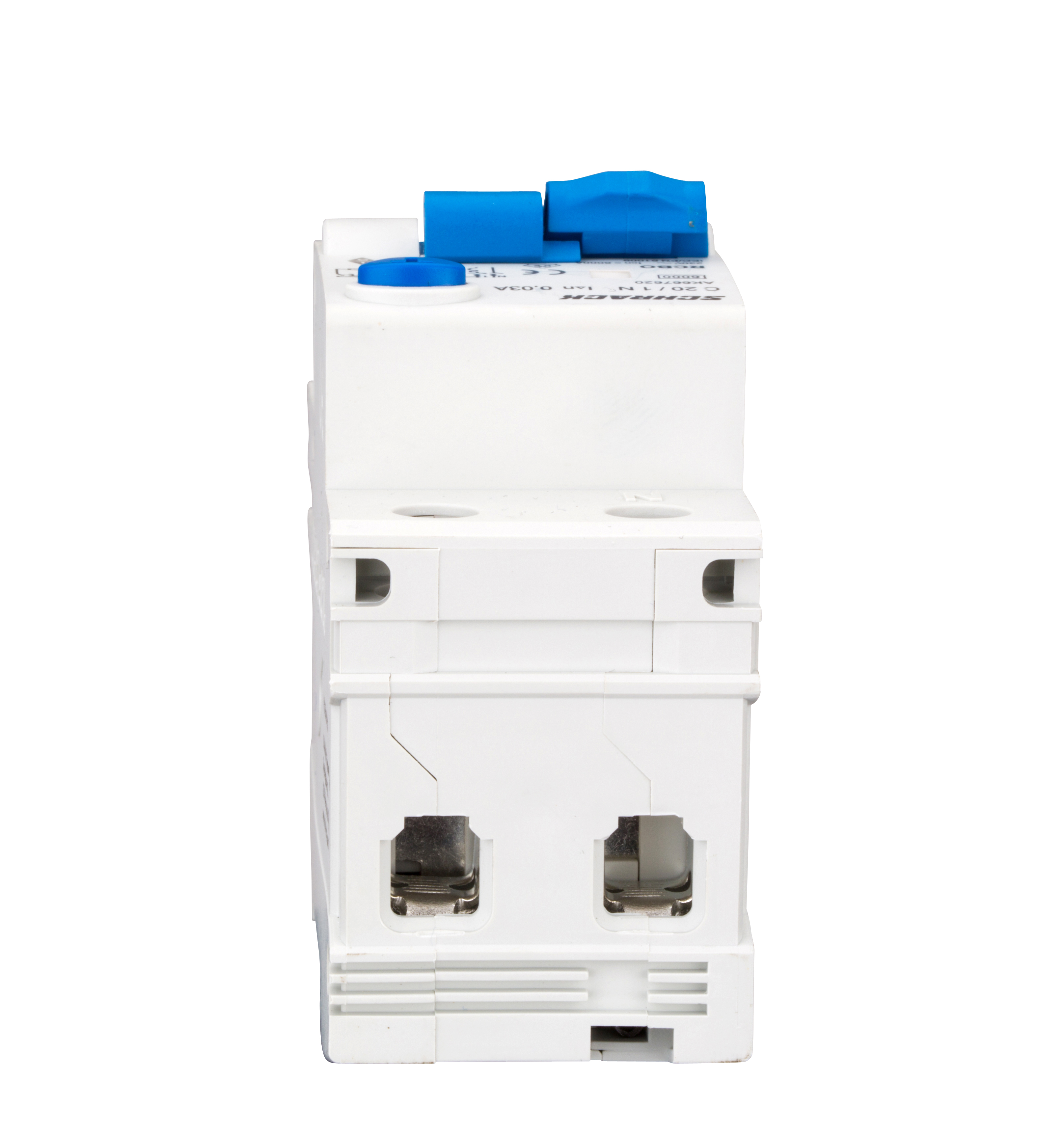

- Photo 4: Automatic circuit breaker with RCD C20A/1+N, 6kA, 30mA, type A (JPG, 1.3 MB)

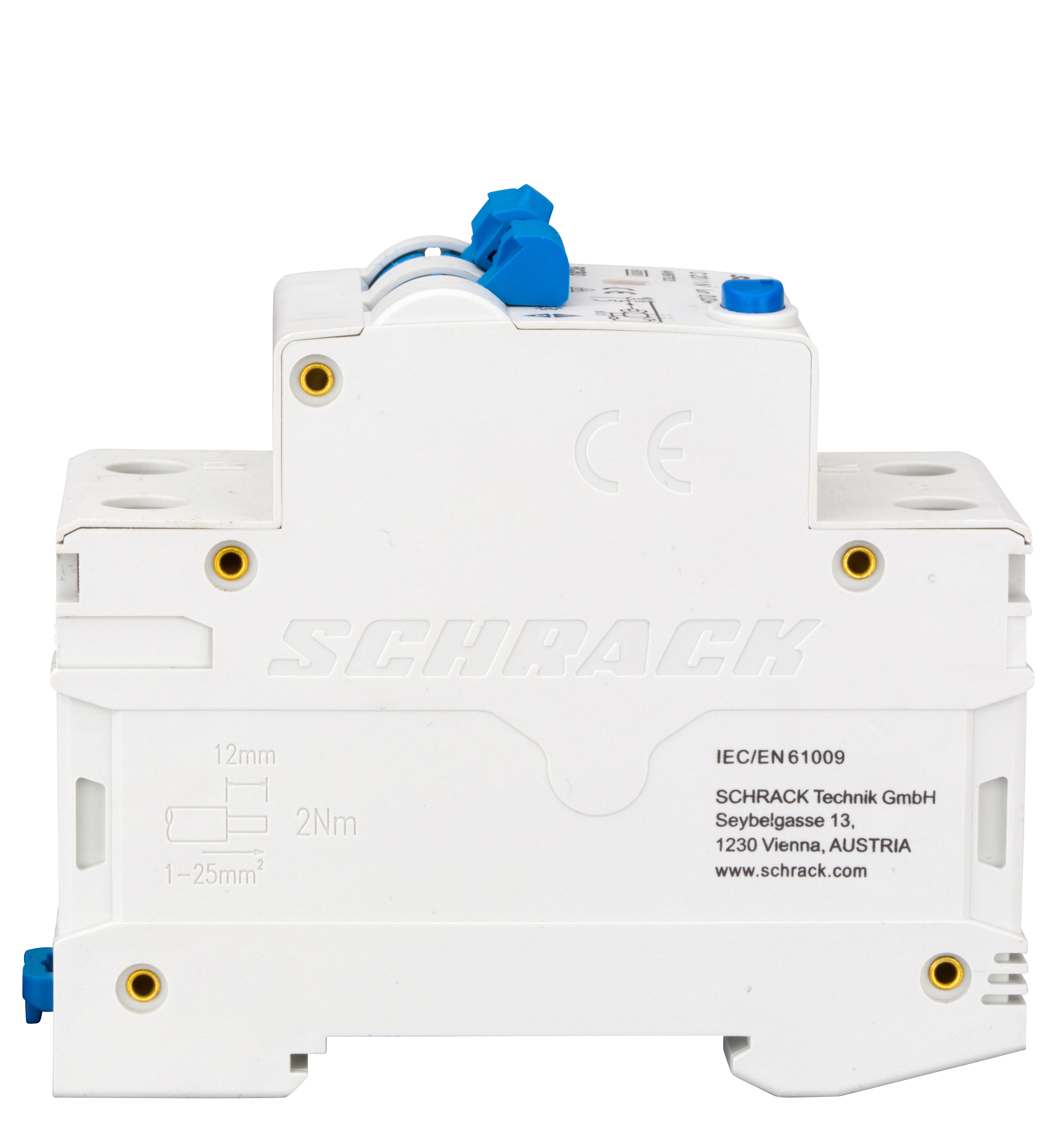

- Photo 5: Automatic circuit breaker with RCD C20A/1+N, 6kA, 30mA, type A (JPG, 2.4 MB)

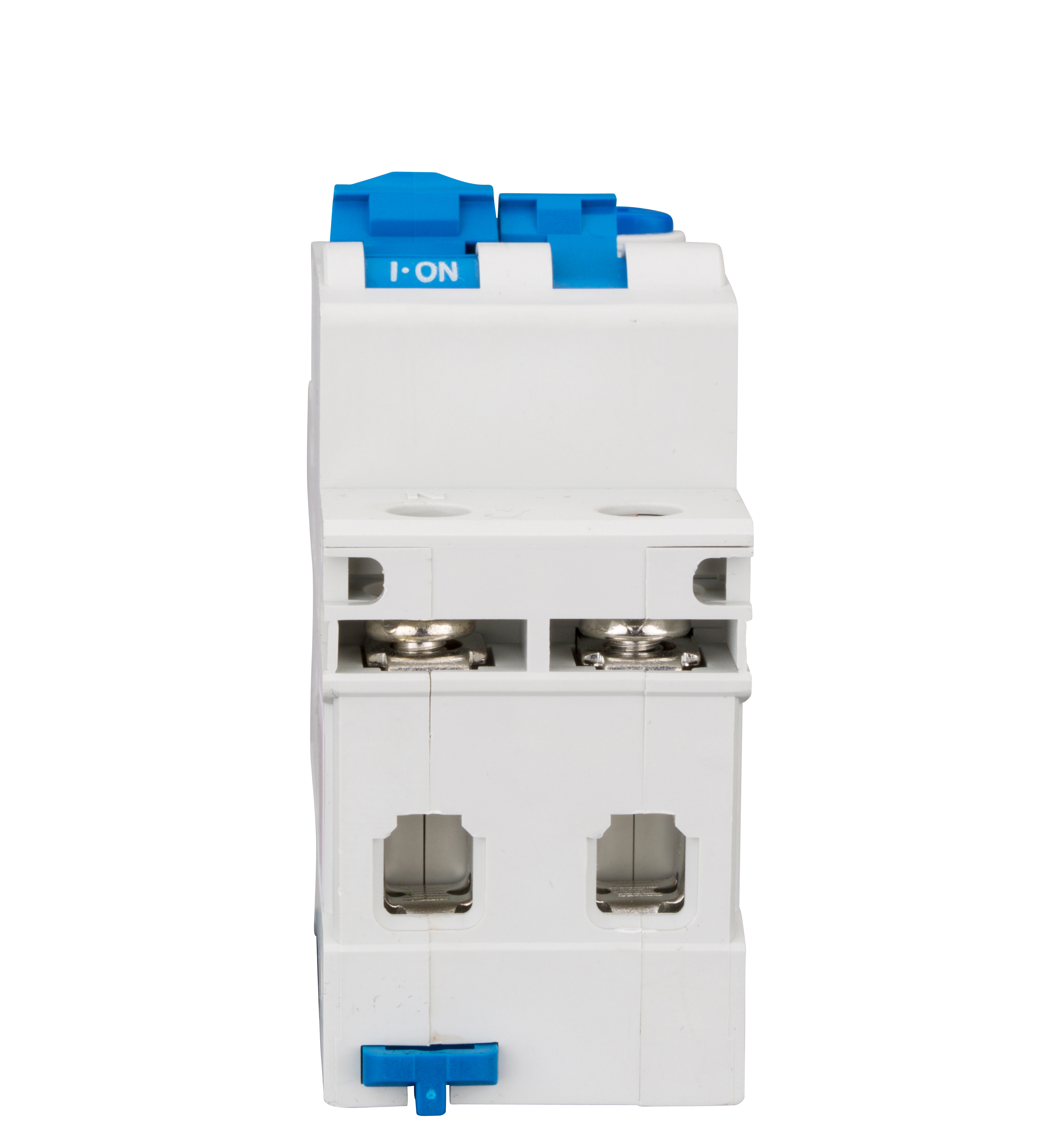

- Photo 6: Automatic circuit breaker with RCD C20A/1+N, 6kA, 30mA, type A (JPG, 1.3 MB)
