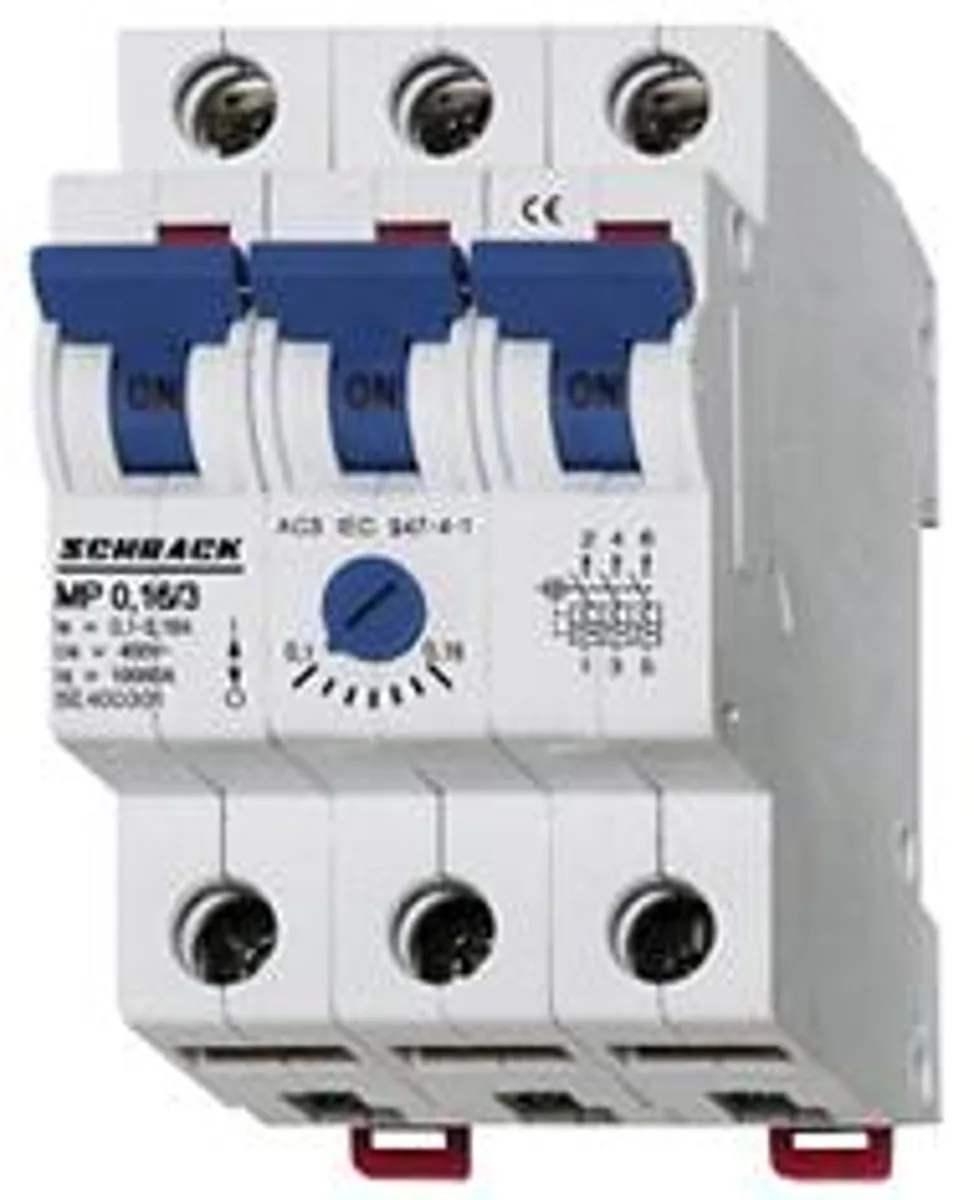

Motor Protection Switch 0.1-0.16A/3 BE4
Article: BE400301--
28 560 ₸
In stock
Motor protection switch designed to protect electric motors from overload and short-circuit conditions. The device is rated for a nominal current of 0.1-0.16 A and complies with the international standard EN 60947-2:2006 + A1:2009 + A2:2013.
Technical Specifications:
- Nominal Current: 0.1-0.16 A
- Design: 3
- Power Loss: 5.10 W
- Operating Temperature Range: -40°C to +70°C
- Dimensions (H×W×D): 80.00 × 53.40 × 71.00 mm
- Weight: 0.34 kg
- Manufacturer: Schrack
- EAN Code: 9004840266184
The device is intended for use in stationary conditions and provides reliable protection of low-voltage electric drives in industrial and commercial installations. Compact dimensions allow for easy integration of the automatic switch into distribution panels and control cabinets.
| EAN Code | 9004840266184 |
|---|---|
| Net Width | 53.40 mm |
| Net Height | 80.00 mm |
| Net Depth | 71.00 mm |
| Net Weight | 0.34 kg |
| Power Loss | 5.10 W |
| Min. Ambient Temperature | -40°C |
| Max. Ambient Temperature | 70°C |
| Design | 3 |
| Rated Current | 0.1-0.16 A |
| Standard | EN 60947-2:2006 + A1:2009 + A2:2013 |
| Manufacturer | Schrack |
| Packaging | 1 pcs., 4 pcs. |
