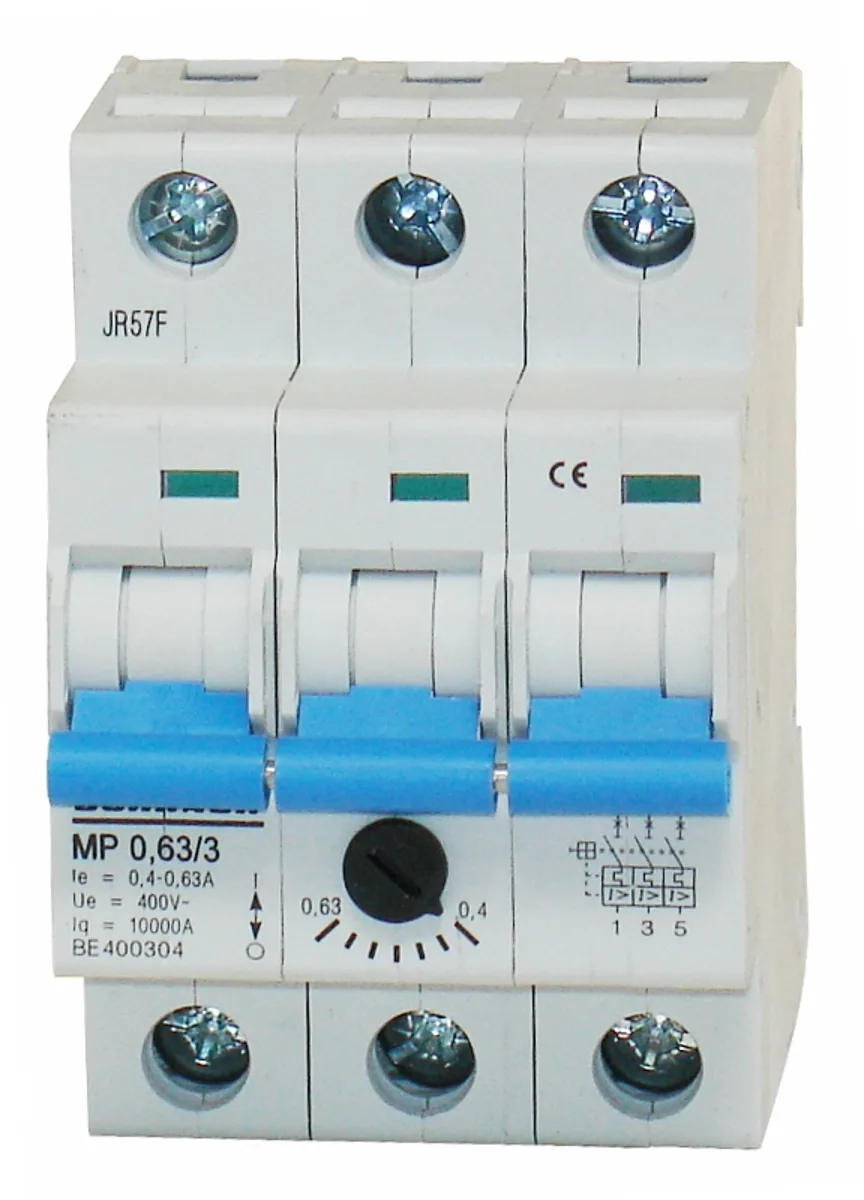

Motor Protection Circuit Breaker 0.40-0.63A/3 BE4
Article: BE400304--
28 560 ₸
In stock
Motor Protection Circuit Breaker is designed to protect electric motors from overloads and short circuits. The device provides reliable circuit disconnection in case of emergency situations.
Main Parameters:
- Current adjustment range: 0.40-0.63A
- Number of poles: 3 (three-pole design)
- Manufacturer: Schrack
- Compliance standard: EN 60947-2:2006 + A1:2009 + A2:2013
Technical Characteristics:
- Power loss: 5.30 W
- Ambient temperature operating range: -40°C to +70°C
- Overall dimensions: 53.40 mm (width) × 80.00 mm (height) × 71.00 mm (depth)
- Net weight: 0.34 kg
- EAN code: 9004840266214
Packaging options: 1 pc., 4 pc., 40 pc.
The device complies with all requirements of European safety standards and is designed for installation on DIN rail in industrial equipment distribution cabinets.
| EAN code | 9004840266214 |
|---|---|
| Net width | 53.40mm |
| Net height | 80.00mm |
| Net depth | 71.00mm |
| Net weight | 0.34kg |
| Power loss | 5.30W |
| Min. ambient temperature | -40°C |
| Max. ambient temperature | 70°C |
| Design | 3 |
| Current rating | 0.40-0.63A |
| Standard | EN 60947-2:2006 + A1:2009 + A2:2013 |
| Manufacturer | Schrack |
| Packaging | 1 pc., 4 pc., 40 pc. |
