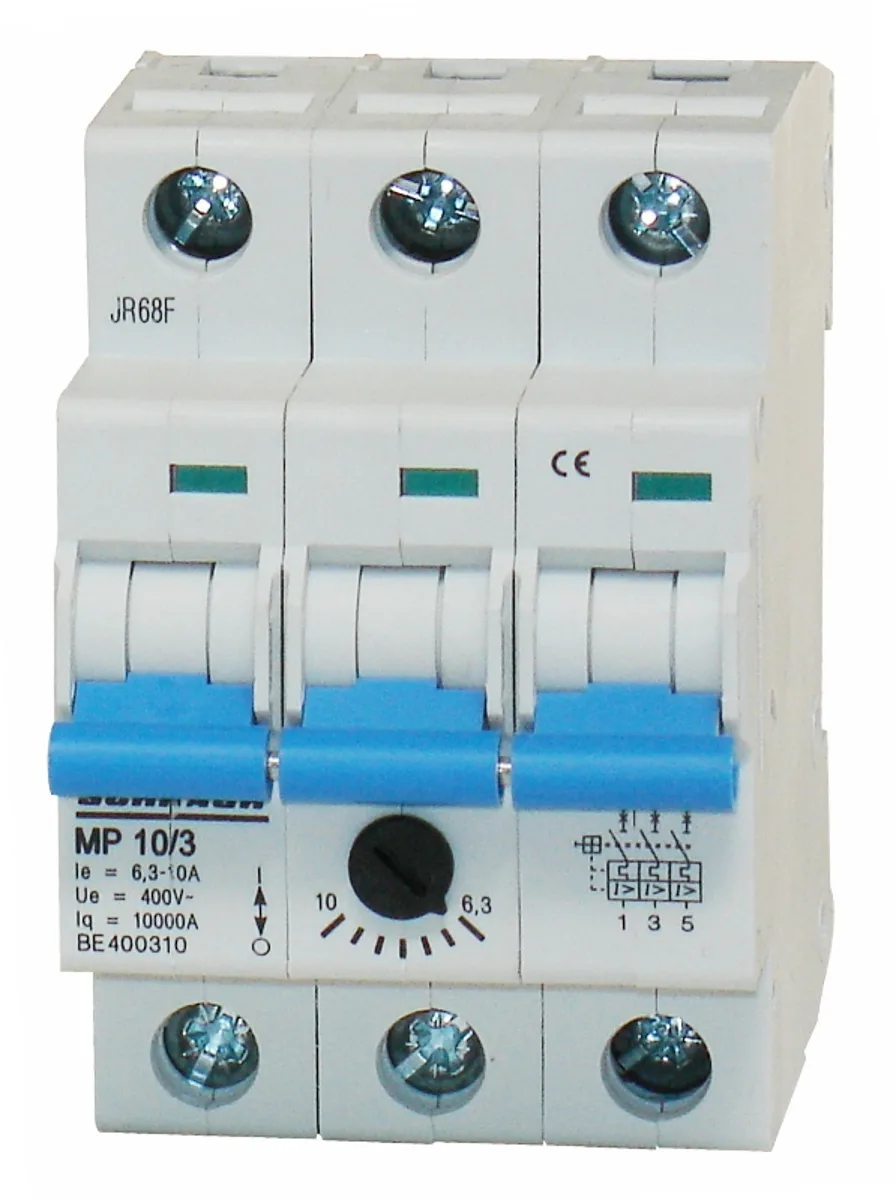

Motor Protection Switch 6.3-10.0A/3 BE4
Article: BE400310--
23 370 ₸
In stock
Motor protection switch designed for automatic disconnection of electric motors in case of overload and short circuit. The device ensures reliable protection of asynchronous motors in three-phase alternating current networks.
Main characteristics:
- Current adjustment range: 6.3–10.0A (rated), 6.3–16A (tripping range)
- Design: 3-pole
- Standard: EN 60947-2:2006 + A1:2009 + A2:2013
- Power loss: 7.00W at rated current
- Operating temperature range: from –40°C to +70°C
- Manufacturer: Schrack (reliable European electrical equipment manufacturer)
Physical parameters:
- Width: 53.40mm
- Height: 80.00mm
- Depth: 71.00mm
- Net weight: 0.34kg
- EAN code: 9004840266276
Packaging options: 1 pc., 4 pcs., 40 pcs.
The device is designed for installation in distribution cabinets and motor control panels. Due to its compact dimensions and low weight, it provides space-saving installation efficiency.
| EAN code | 9004840266276 |
|---|---|
| Width (net) | 53.40mm |
| Height (net) | 80.00mm |
| Depth (net) | 71.00mm |
| Net weight | 0.34kg |
| Power loss | 7.00W |
| Min. ambient temperature | –40°C |
| Max. ambient temperature | 70°C |
| Design | 3-pole |
| Current rating | 6.3–16A |
| Standard | EN 60947-2:2006 + A1:2009 + A2:2013 |
| Manufacturer | Schrack |
| Packaging | 1 pc., 4 pcs., 40 pcs. |
