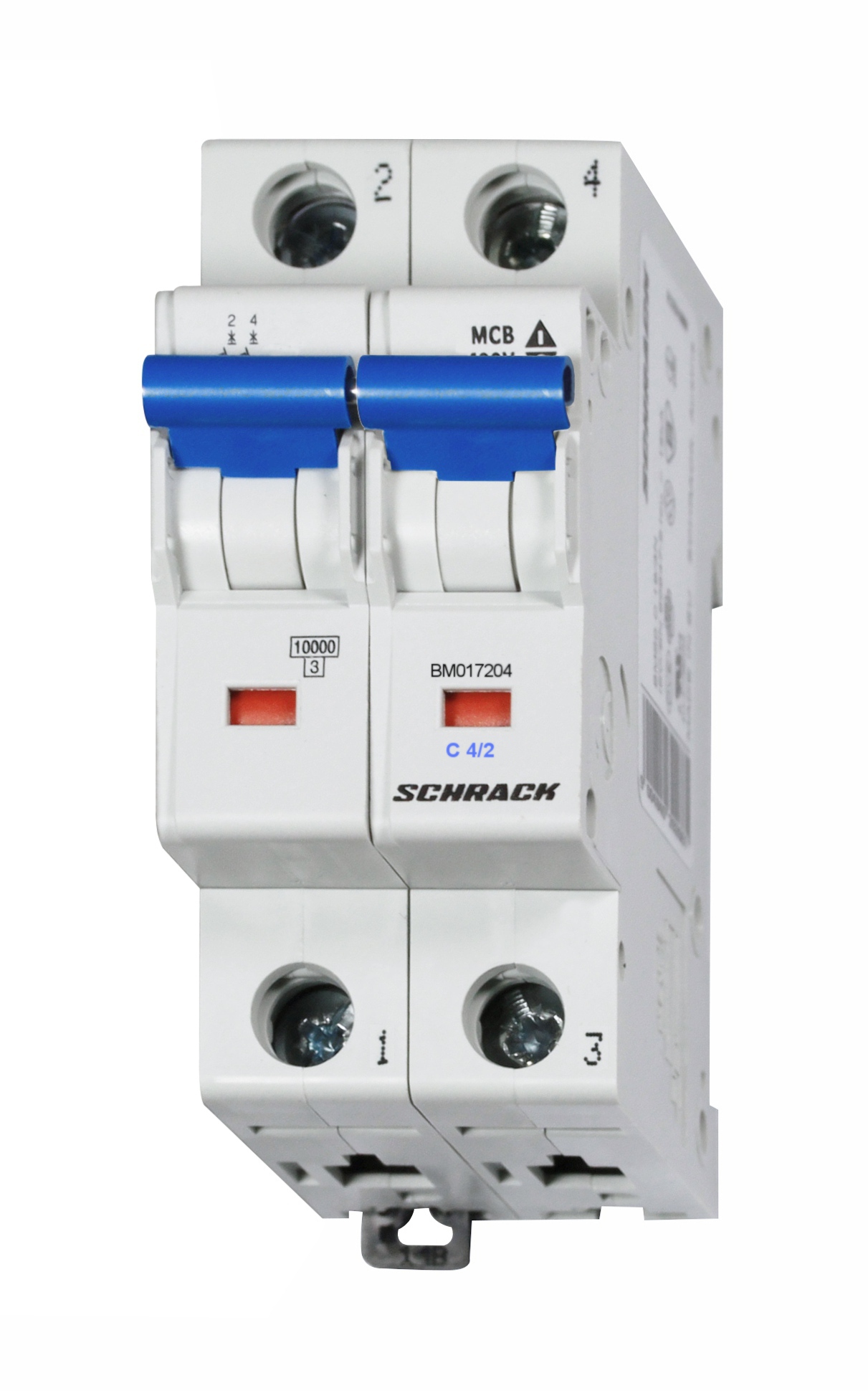

Automatic Circuit Breaker BM C4/2 10kA

Two-pole automatic circuit breaker of the BMS0 series with a nominal current of 4A and a breaking capacity of 10kA. Designed to protect AC electrical circuits from overloads and short circuits.

Main parameters:

• Trip characteristic: C (for circuits with moderate inrush currents)
• Type of design: AC-MCB (automatic circuit breaker for alternating current)
• Number of poles: 2
• Rated voltage: in accordance with EN 60898-1:2019
• Power consumption: 2.90W

Operating conditions:

• Ambient temperature range: from -40°C to +75°C
• Overall dimensions: width 35.60 mm, height 83.00 mm, depth 74.90 mm
• Net weight: 0.24kg
• Modular design for mounting on DIN rail

Standards compliance: EN 60898-1:2019 (household and similar circuit breakers), EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020 (low-voltage switchgear), EN 63000:2018 (hazardous substances)

Manufacturer: Schrack (Austria)

Packaging options: single unit, per 6 units, per 60 units
