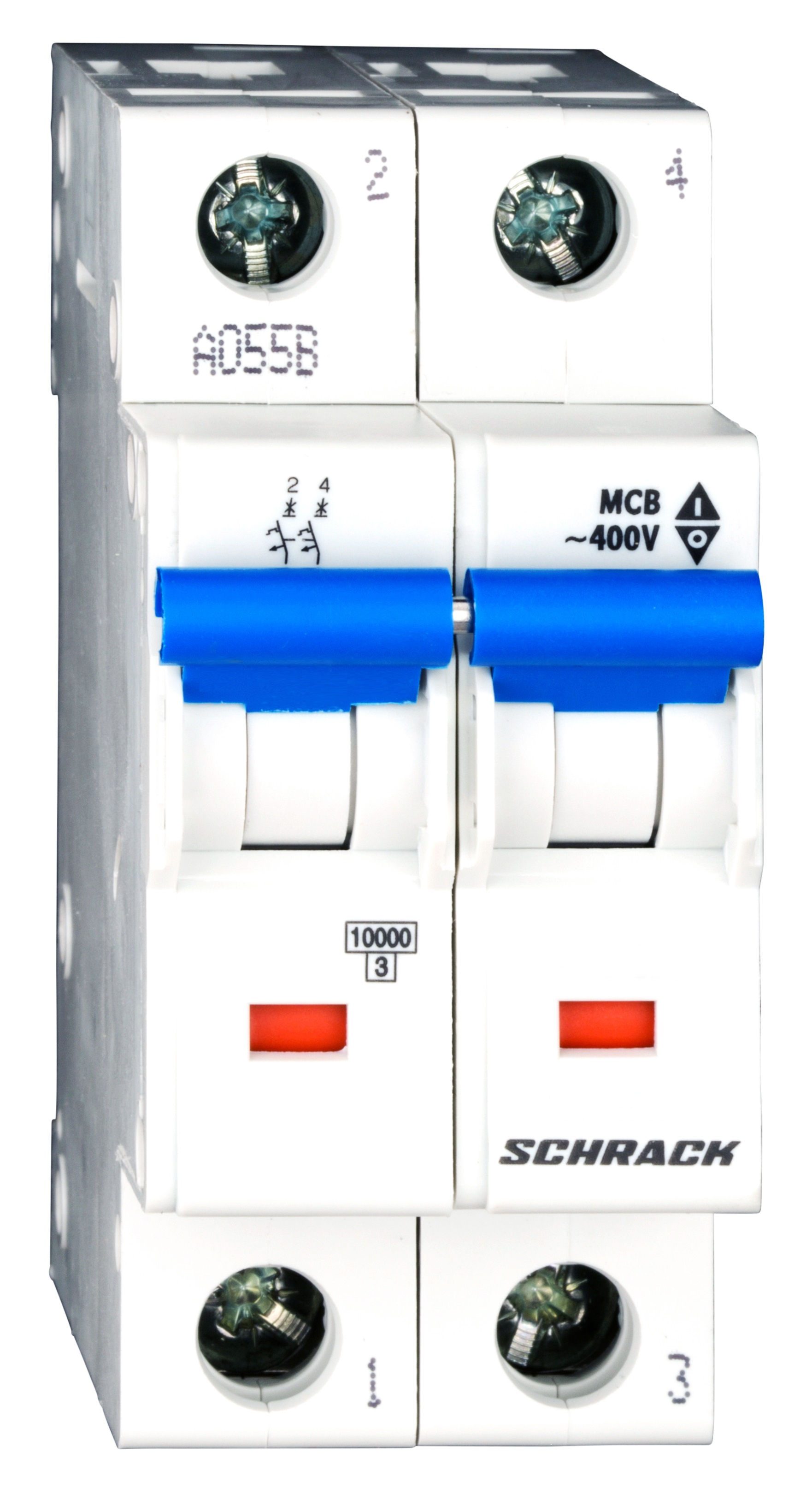

Automatic Circuit Breaker BM ME C32/2, 10kA
Article: BM017232ME
8 280 ₸
To order
BM ME C32/2 Automatic Circuit Breaker is designed to protect electrical circuits from overloads and short-circuit currents. The device is manufactured in AC-MCB-ME execution (modular automatic circuit breaker for alternating current) and complies with the requirements of modern electrical safety standards.
Key Parameters:
- Rated Current: 32 A
- Number of Poles: 2
- Trip Characteristic: C (time-current characteristic for standard loads)
- Breaking Capacity: 10 kA
- Type: BMS0-ME
- Series: BMS0
Technical Specifications:
- Power Dissipation: 8.10 W at rated current
- Operating Temperature Range: from -40°C to +75°C
- Overall Dimensions (net): 35.60 × 83.00 × 74.90 mm
- Weight: 0.24 kg
Conformity Standards: EN 60898-1:2019, EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018
Manufacturer: Schrack Electro (Austria)
Packaging Options: 1 pc., 6 pc., 60 pc.
The circuit breaker is used in distribution boards of residential, commercial, and industrial facilities for reliable protection of electrical networks.
| EAN Code | 9004840527186 |
|---|---|
| Width (net) | 35.60 mm |
| Height (net) | 83.00 mm |
| Depth (net) | 74.90 mm |
| Weight (net) | 0.24 kg |
| Power Dissipation | 8.10 W |
| Minimum Temperature | -40°C |
| Maximum Temperature | 75°C |
| Characteristic | C |
| Poles | 2 |
| Rated Current | 32 A |
| Type | BMS0-ME |
| Series | BMS0 |
| Breaking Capacity | 10 kA |
| Execution | AC-MCB-ME |
| Standard | EN 60898-1:2019, EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018 |
| Manufacturer | Schrack |
| Packaging | 1 pc., 6 pc., 60 pc. |
