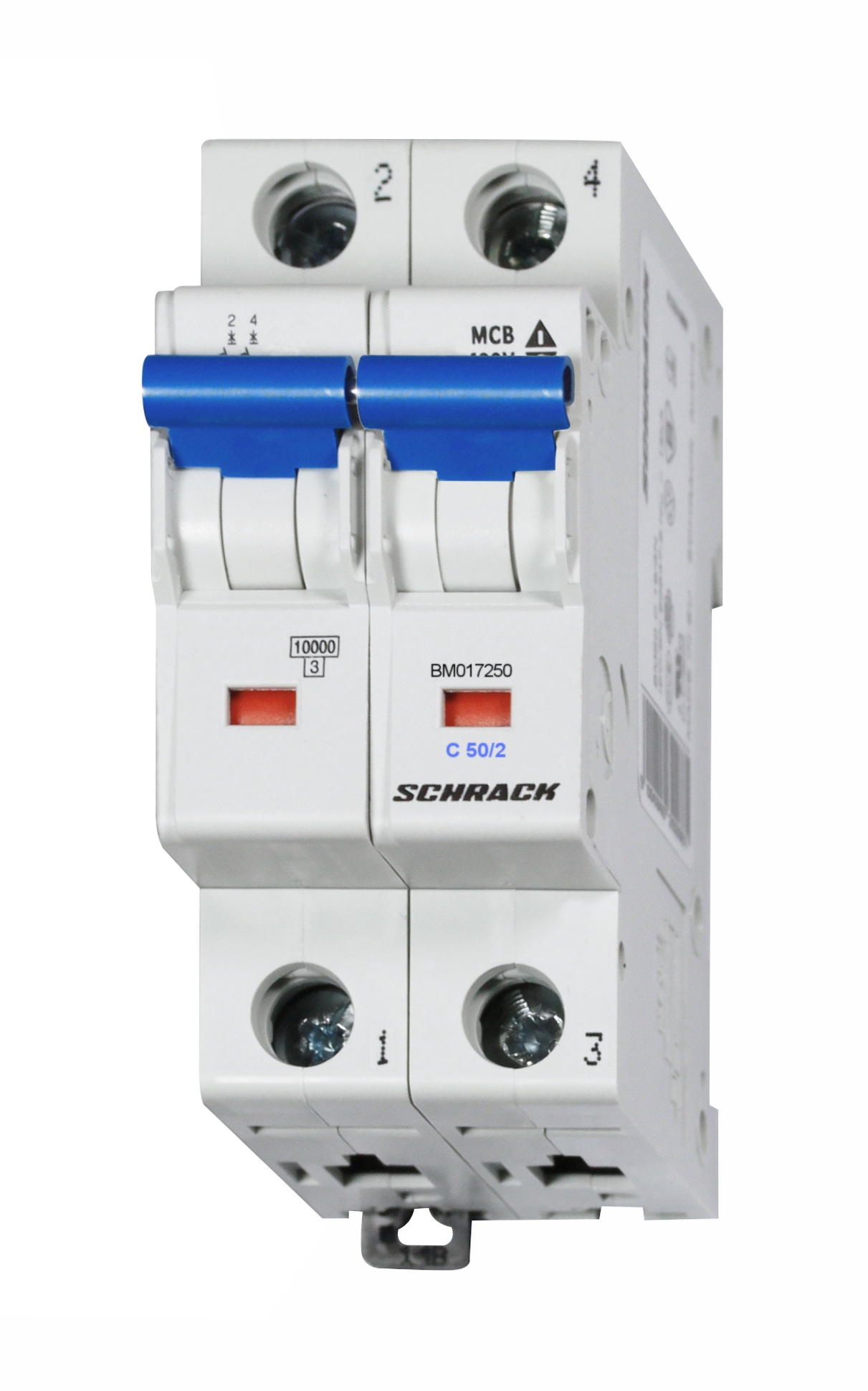

Automatic Circuit Breaker BM C50/2, 10kA

Two-pole automatic circuit breaker of the BMS0 series with nominal current 50A and switching capacity 10kA. Designed to protect electrical circuits against overloads and short circuits in residential and commercial installations.

Main Characteristics:

• Nominal Current: 50A
• Number of Poles: 2
• Trip Characteristic: C (for circuits with mixed loads)
• Switching Capacity: 10kA (AC)
• Operating Voltage: 230/400V AC
• Temperature Range: -40°C to +75°C
• Power Loss: 9.90W
• Type of Execution: AC-MCB (miniature automatic circuit breaker for alternating current)

Physical Dimensions:

• Width: 35.60mm
• Height: 83.00mm
• Depth: 74.90mm
• Weight: 0.24kg

Normative Basis:

The automatic circuit breaker complies with the requirements of international standards: EN 60898-1:2019, EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018.

Manufacturer: Schrack (quality Austrian electrical equipment)

Packaging Options: individual units (1 pc.), in packages of 6 and 60 pcs.
