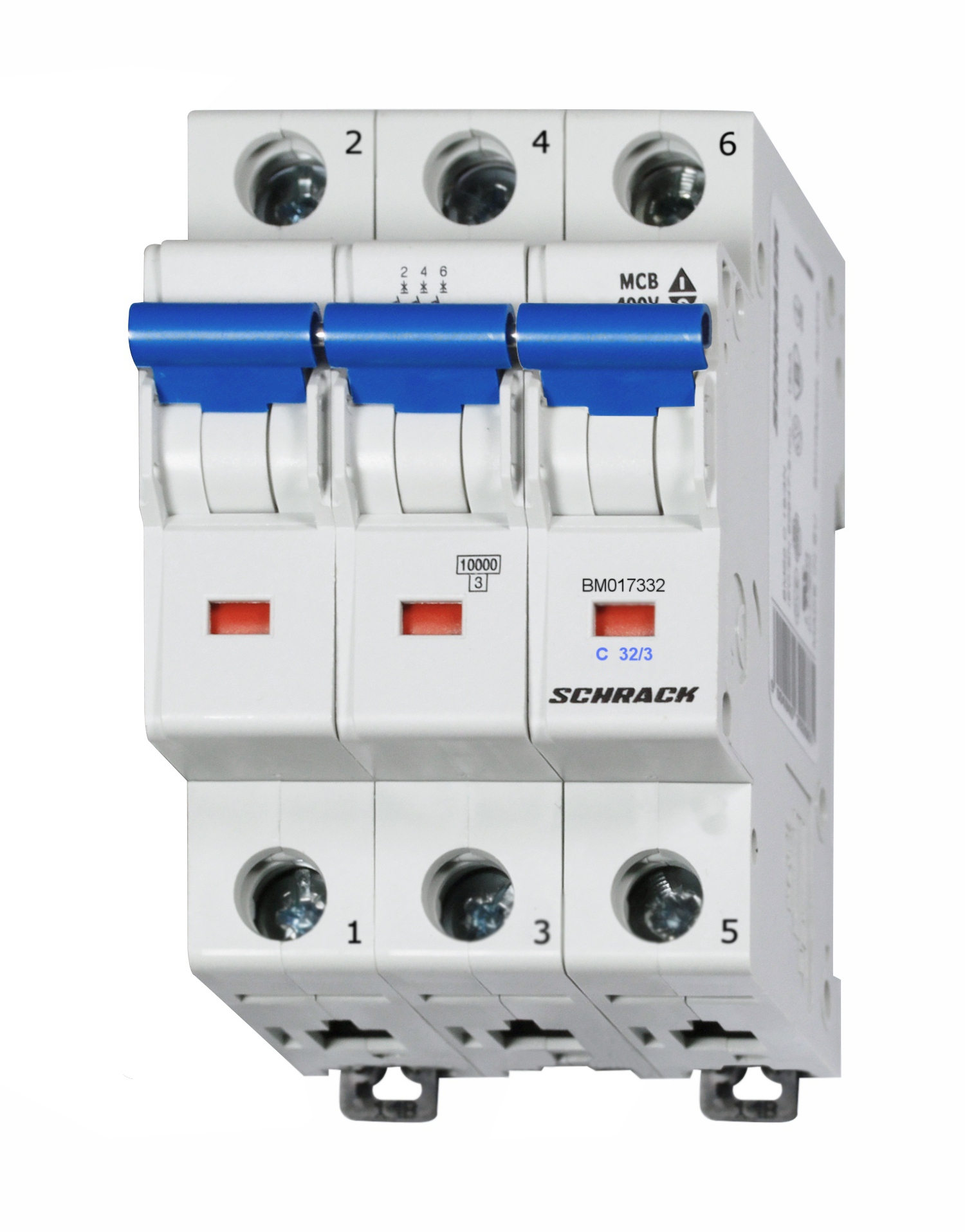

Automatic Circuit Breaker BM C32/3, 10kA
Article: BM017332--
24 890 ₸
To order
Three-pole automatic circuit breaker from Schrack's BMS0 series, designed to protect AC electrical circuits from overloads and short-circuit currents.
Main parameters:
- Rated current: 32 A
- Switching capacity: 10 kA
- Trip characteristic: C (for circuits with moderate inrush currents)
- Number of poles: 3
- Design: alternating current (AC-MCB)
- Type: BMS0
Operating conditions:
- Ambient temperature range: from -40 °C to +75 °C
- Power loss: 12.10 W
Dimensions and weight:
- Width: 53.40 mm
- Height: 83.00 mm
- Depth: 74.90 mm
- Weight: 0.37 kg
Regulatory compliance: Complies with EN 60898-1:2019, EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018.
Packaging options: 1 pc., 4 pc., 40 pc.
| EAN code | 9004840392036 |
|---|---|
| Net width | 53.40 mm |
| Net height | 83.00 mm |
| Net depth | 74.90 mm |
| Net weight | 0.37 kg |
| Power loss | 12.10 W |
| Min. ambient temperature | -40 °C |
| Max. ambient temperature | 75 °C |
| Characteristic | C |
| Poles | 3 |
| Rated current | 32 A |
| Type | BMS0 |
| Series | BMS0 |
| Switching capacity | 10 kA |
| Design | AC-MCB |
| Standard | EN 60898-1:2019, EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018 |
| Manufacturer | Schrack |
| Packaging | 1 pc., 4 pc., 40 pc. |
