Automatic Circuit Breaker BM D4/3, 10kA
Article: BM019304--
27 060 ₸
To order
Three-pole automatic circuit breaker with rated current 4A and breaking capacity 10kA. Designed for protection of alternating current electrical circuits in residential and industrial installations.
Technical Parameters:
- Tripping Characteristic: D (for circuits with high inrush currents)
- Number of Poles: 3
- Design: AC-MCB (miniature circuit breaker for alternating current)
- Power Dissipation: 4.40W
- Operating Temperature Range: -40°C to +75°C

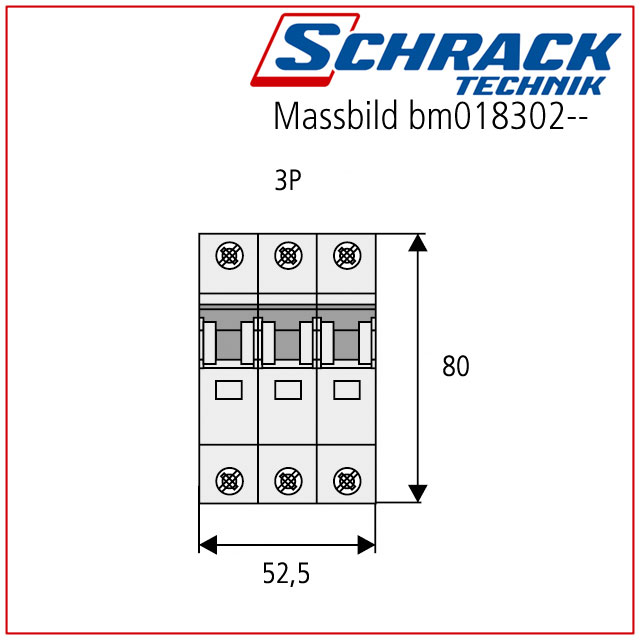

Dimensions and Weight:
- Width: 53.40 mm
- Height: 83.00 mm
- Depth: 74.90 mm
- Net Weight: 0.36 kg
Standards Compliance:
The electrical apparatus complies with the requirements of:
- EN 60898-1:2019 (Automatic circuit breakers for overcurrent protection)
- EN 60947-2:2006 + A1:2009 + A2:2013 (Low-voltage switchgear and controlgear)
- EN 60947-2:2017 + A1:2020
- EN 63000:2018 (Hazardous substances)
Manufacturer: Schrack
Packaging Options: 1 pc., 4 pcs., 40 pcs.
| EAN Code | 9004840398366 |
|---|---|
| Net Width | 53.40 mm |
| Net Height | 83.00 mm |
| Net Depth | 74.90 mm |
| Net Weight | 0.36 kg |
| Power Dissipation | 4.40W |
| Min. Ambient Temperature | -40°C |
| Max. Ambient Temperature | 75°C |
| Characteristic | D |
| Poles | 3 |
| Rated Current | 4A |
| Type | BMS0 |
| Series | BMS0 |
| Breaking Capacity | 10kA |
| Design | AC-MCB |
| Standard | EN 60898-1:2019, EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018 |
| Manufacturer | Schrack |
| Packaging | 1 pc., 4 pcs., 40 pcs. |
