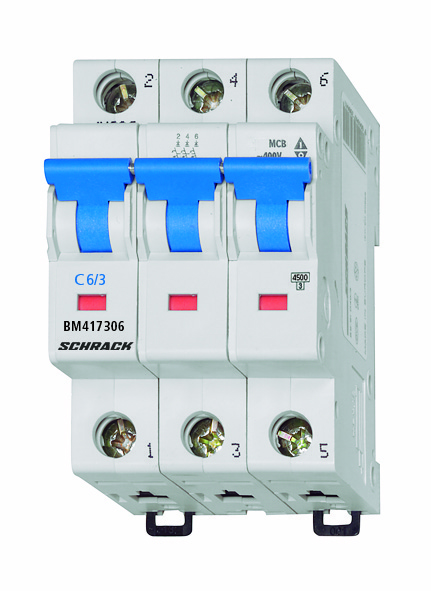

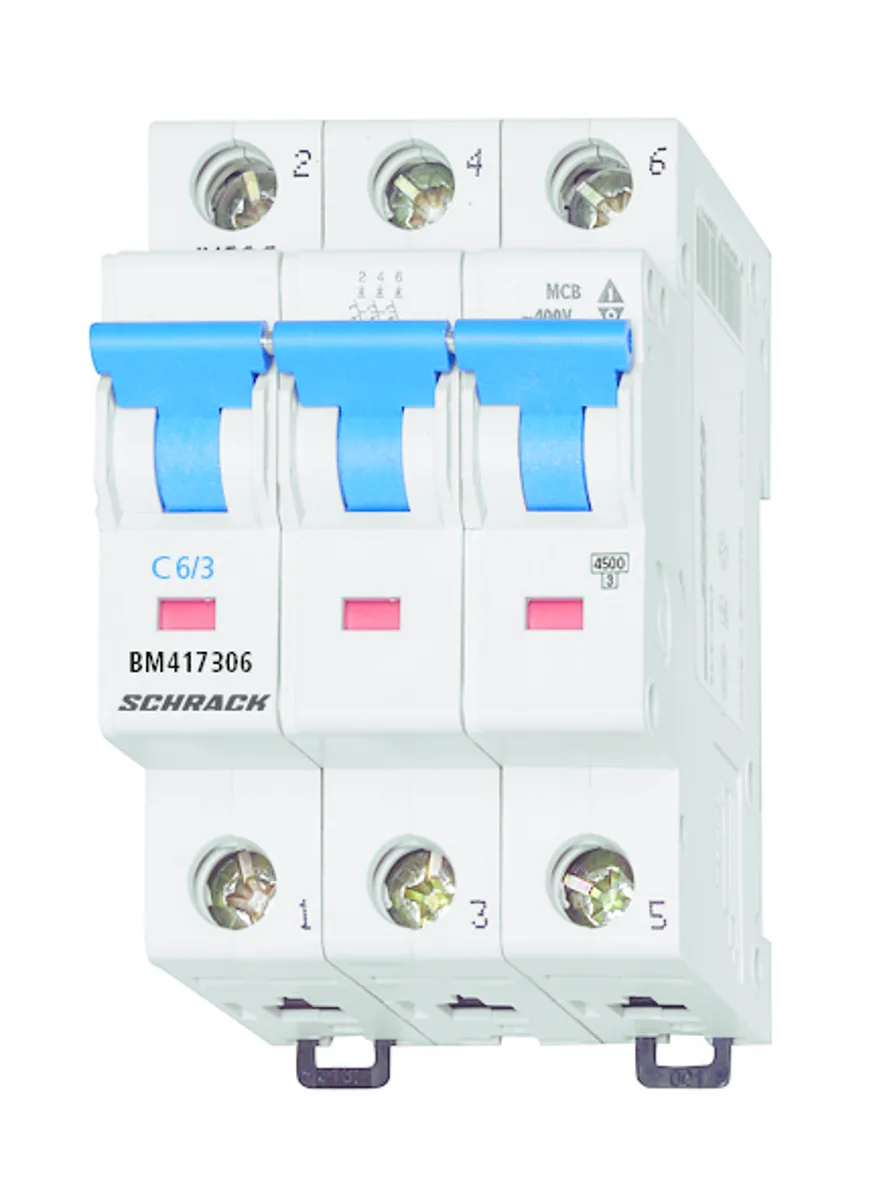

Automatic Circuit Breaker BM C6/3, 4.5kA
Article: BM417306--
10 100 ₸
In stock
Automatic Circuit Breaker BM C6/3 is designed to protect electrical circuits from overloads and short circuits. Three-pole modular device with rated current 6 A and breaking capacity 4.5 kA, trip characteristic type C.
Key Parameters:
- Rated current: 6 A
- Number of poles: 3
- Breaking capacity: 4.5 kA
- Characteristic: C (for protection of electronic devices and mixed-type circuits)
- Design: AC-MCB (alternating current)
- Power loss: 4.40 W
Operating Conditions:
- Ambient temperature range: -40°C to +75°C
Physical Characteristics:
- Width: 53.40 mm
- Height: 85.00 mm
- Depth: 75.00 mm
- Weight: 0.37 kg
Normative Basis: Conforms to standards EN 60898-1:2019, EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018.
Manufacturer: Schrack
Available Packaging: 1 pcs., 4 pcs., 40 pcs.
| EAN Code | 9004840390834 |
|---|---|
| Width (net) | 53.40 mm |
| Height (net) | 85.00 mm |
| Depth (net) | 75.00 mm |
| Weight (net) | 0.37 kg |
| Power loss | 4.40 W |
| Min. ambient temperature | -40°C |
| Max. ambient temperature | 75°C |
| Characteristic | C |
| Poles | 3 |
| Rated current | 6 A |
| Type | BMS4 |
| Series | BMS4 |
| Breaking capacity | 4.5 kA |
| Design | AC-MCB |
| Standard | EN 60898-1:2019, EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018 |
| Manufacturer | Schrack |
| Packaging | 1 pcs., 4 pcs., 40 pcs. |
