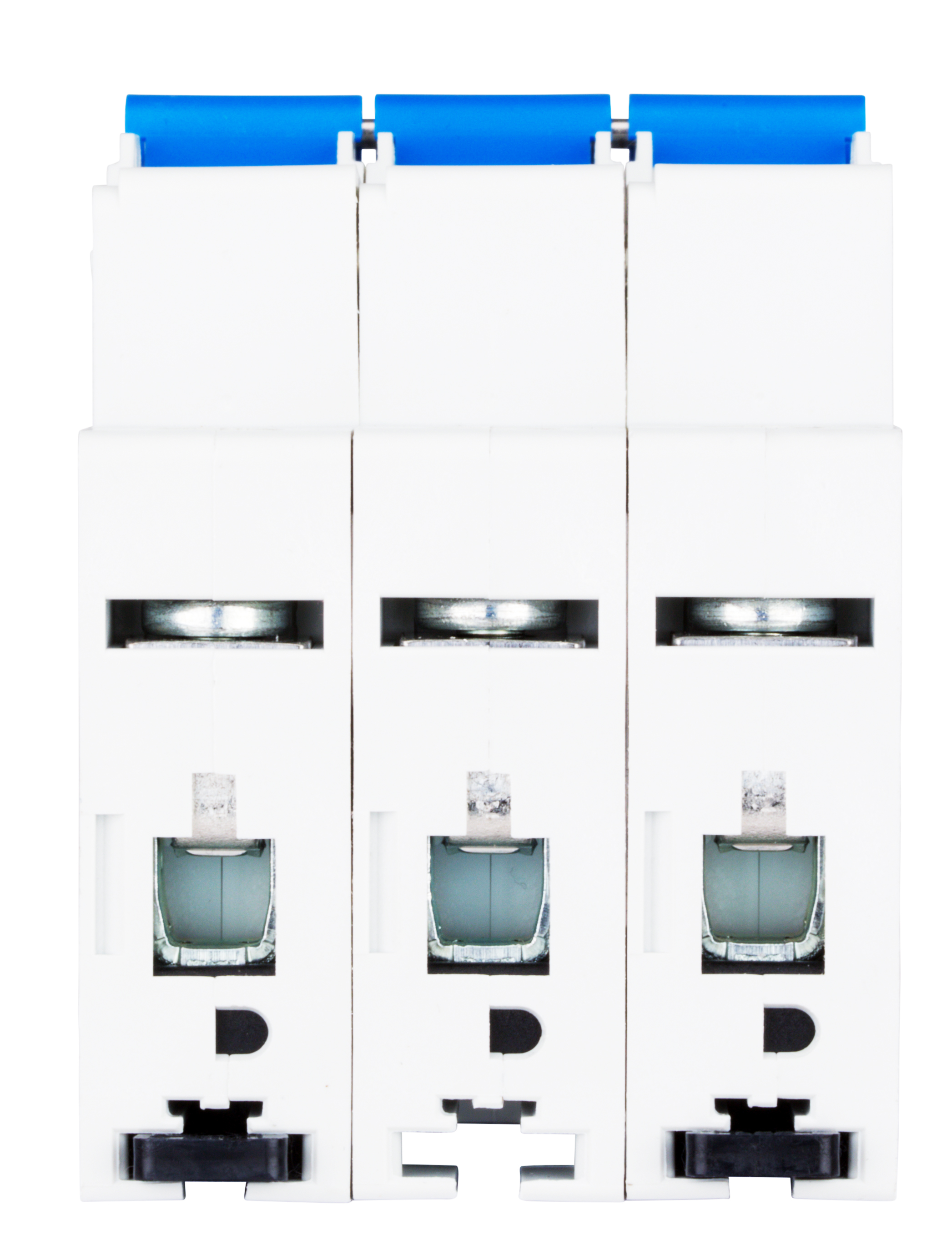

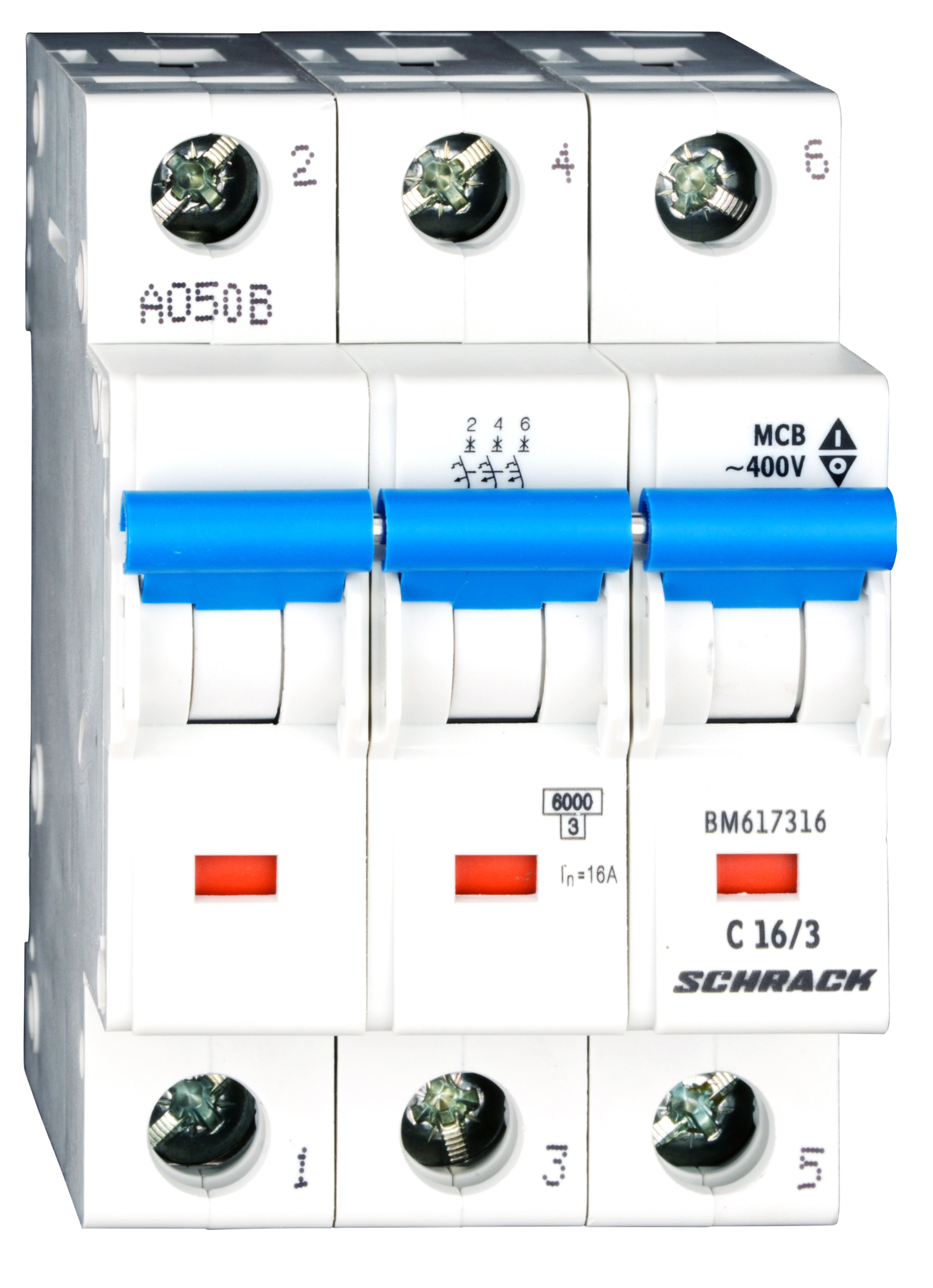

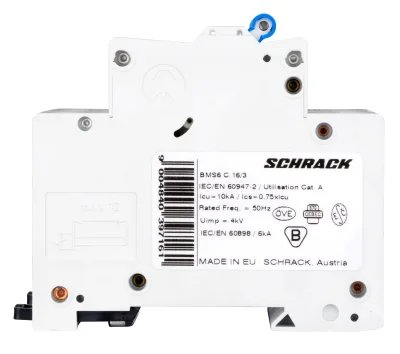

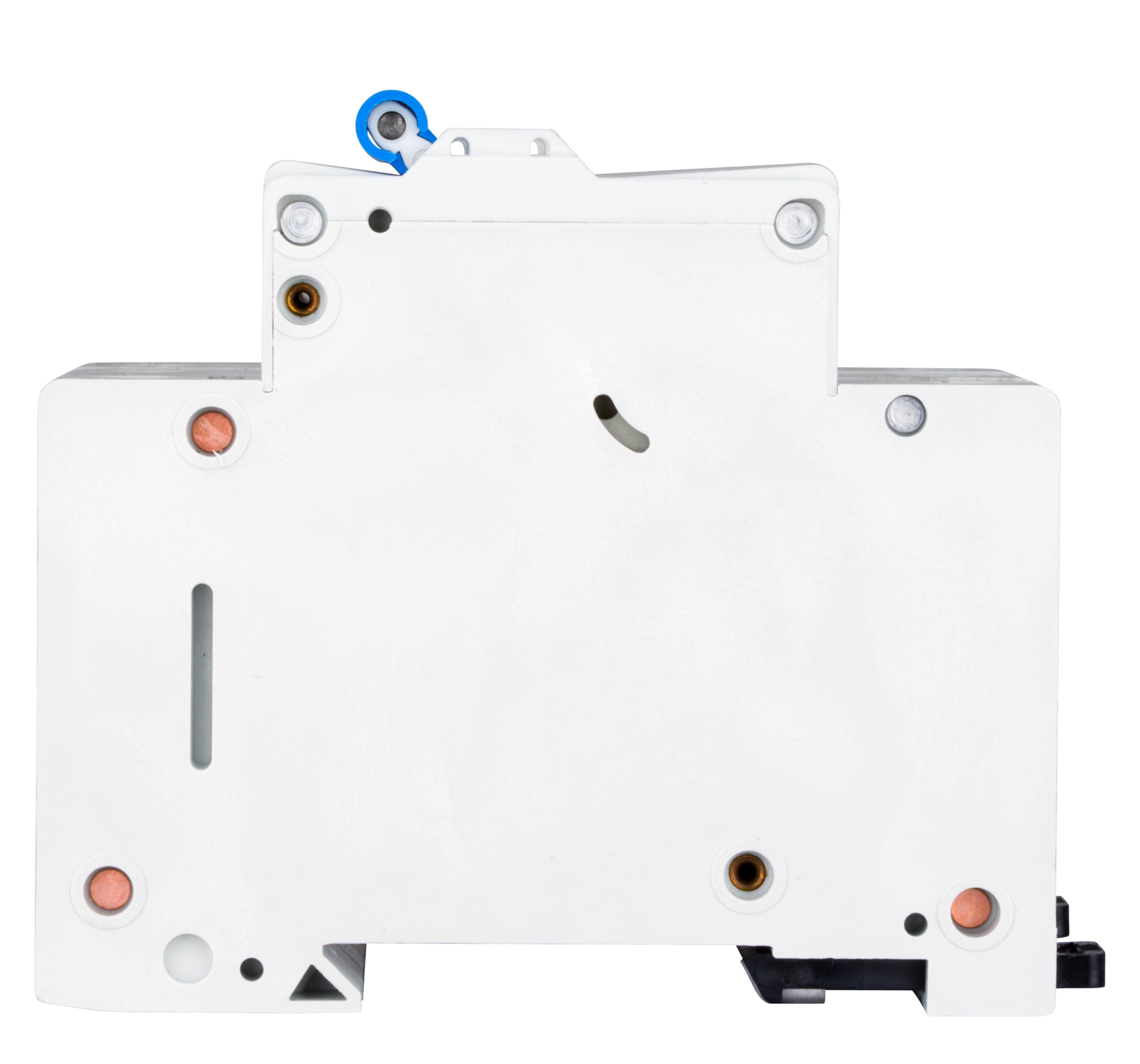

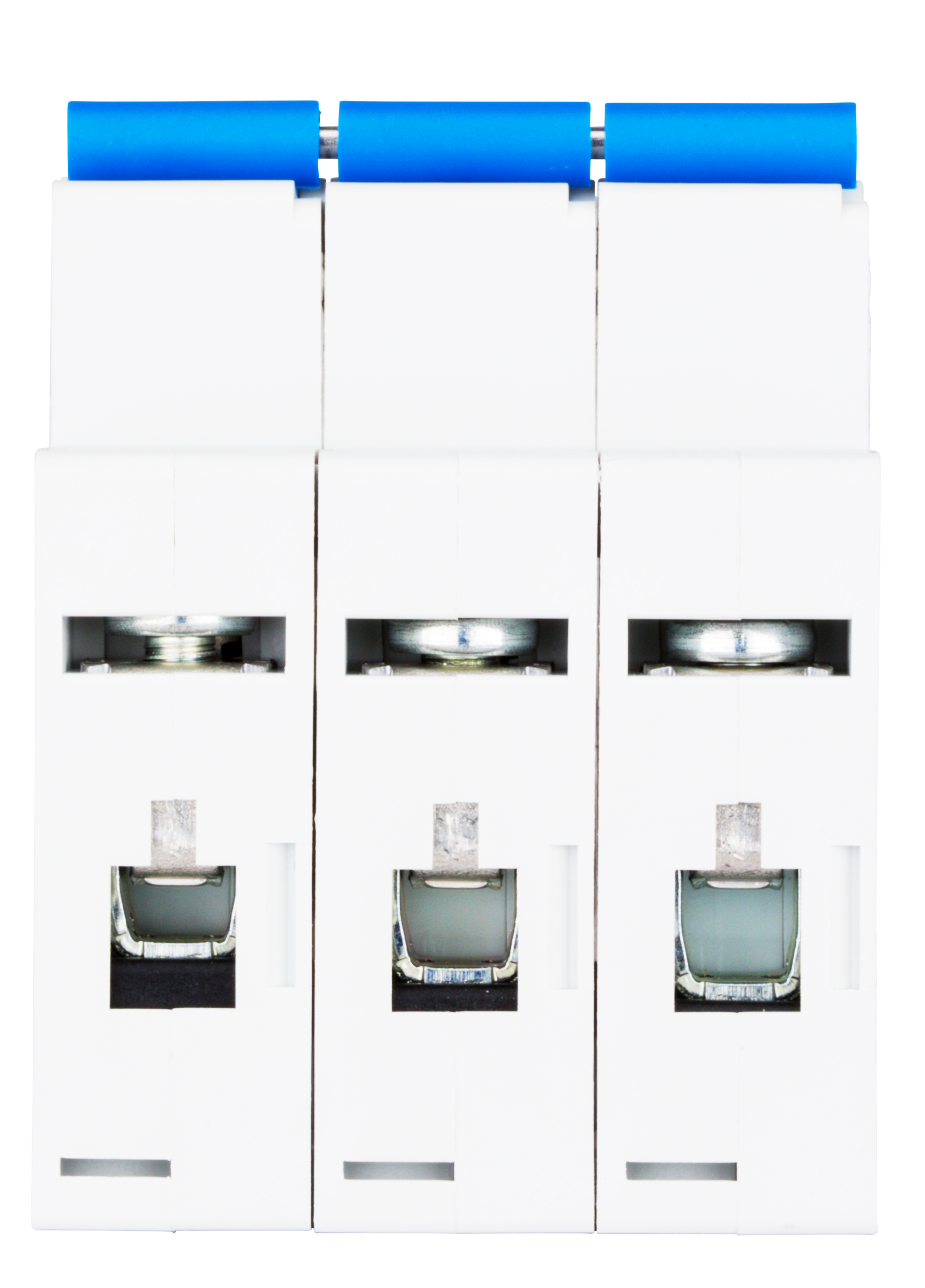

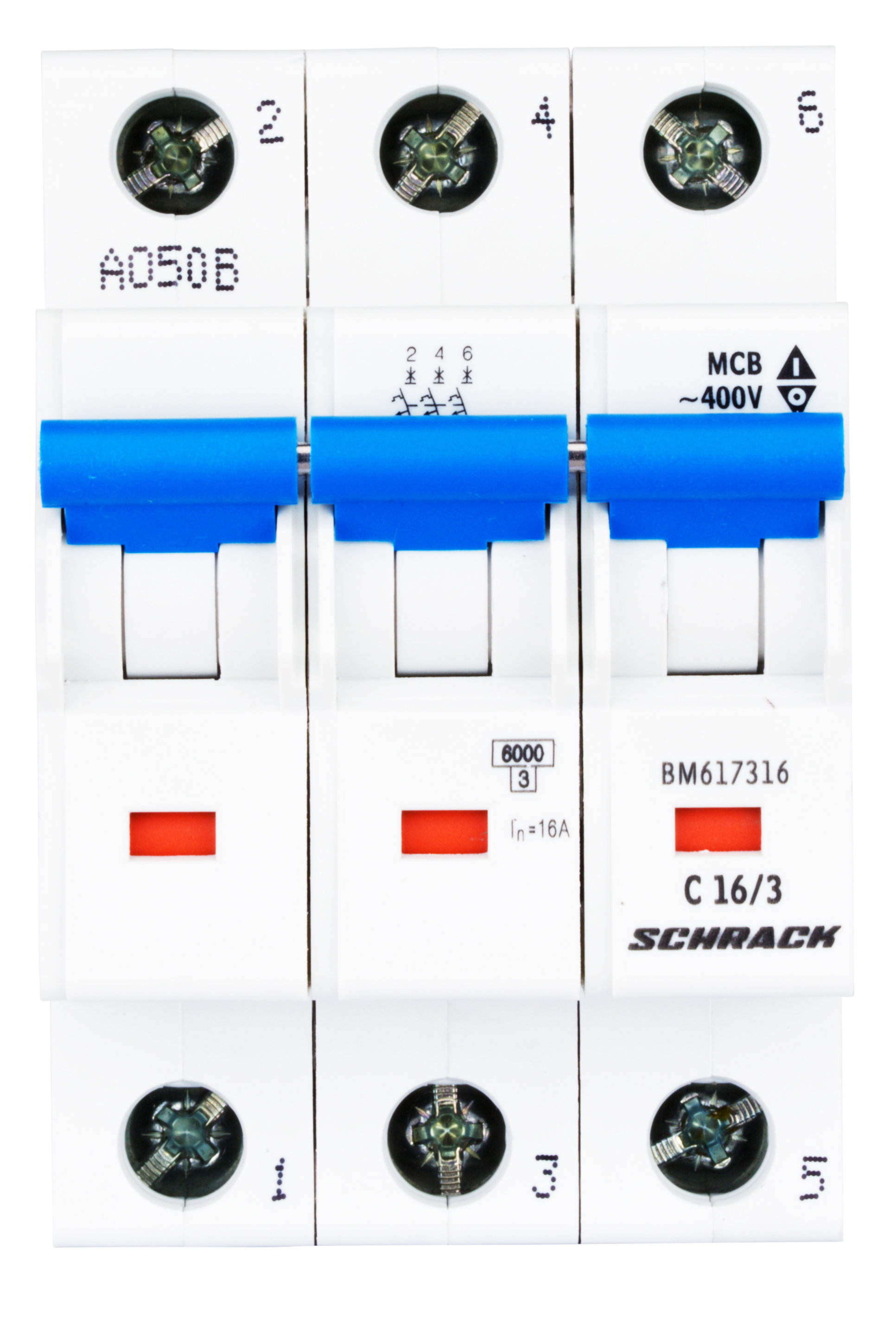

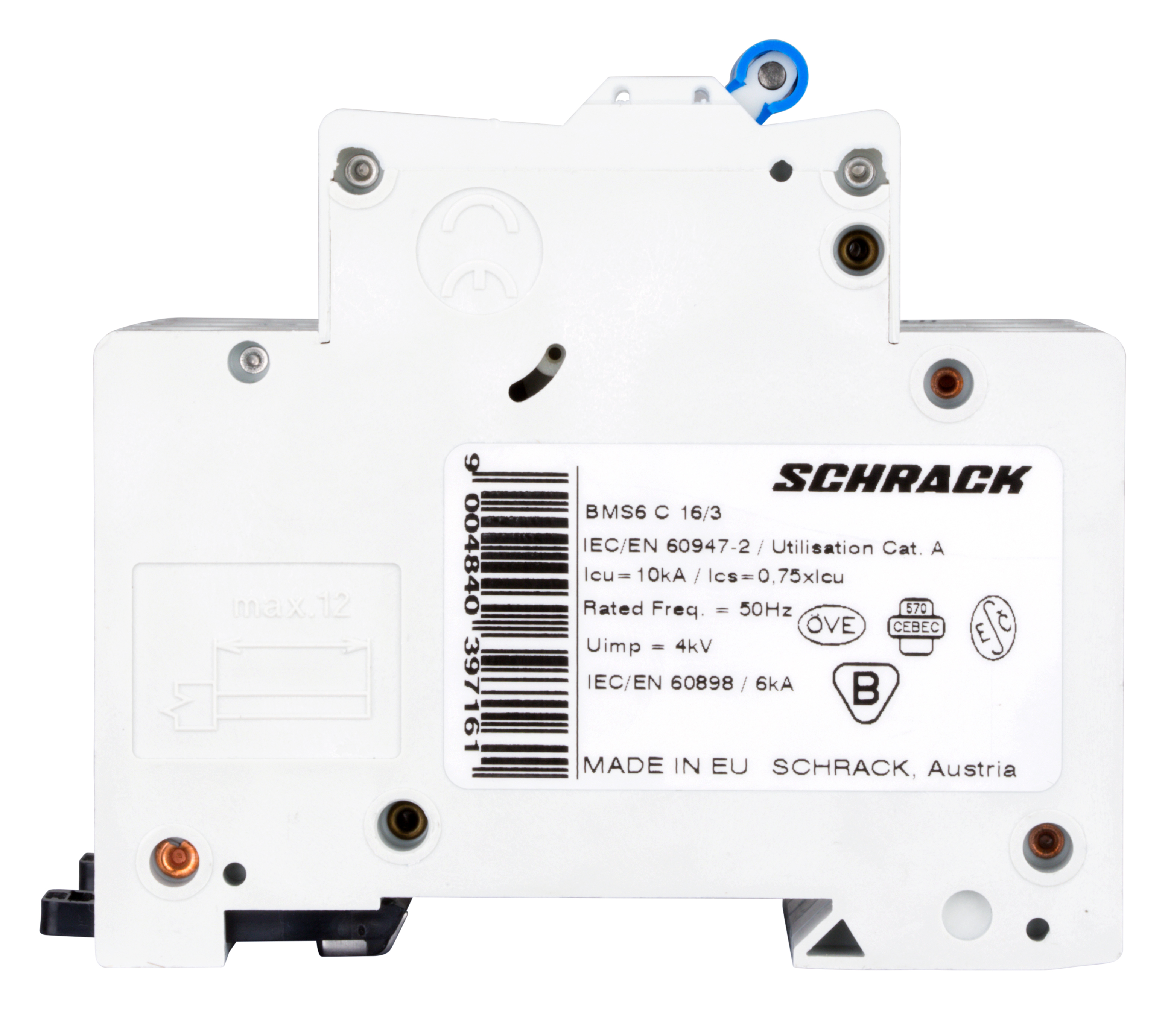

Automatic Circuit Breaker BM C16/3, 6kA
1 / 6
Automatic Circuit Breaker BM C16/3, 6kAAutomatic Circuit Breaker BM C16/3, 6kAAutomatic Circuit Breaker BM C16/3, 6kAAutomatic Circuit Breaker BM C16/3, 6kAAutomatic Circuit Breaker BM C16/3, 6kAAutomatic Circuit Breaker BM C16/3, 6kA

Automatic Circuit Breaker BM C16/3, 6kA

Article: BM617316--

Автоматические выключатели BM

12 160 ₸

In stock
WhatsAppTelegram

Automatic Circuit Breaker BM C16/3 is designed to protect electrical circuits from overloads and short-circuit currents. The device is rated for a nominal current of 16 A with characteristic C, providing a switching capacity of 6 kA.

Technical Parameters:

  • Nominal Current: 16 A
  • Tripping Characteristic: C (for mixed loads and networks with moderate inrush current surges)
  • Number of Poles: 3
  • Switching Capacity: 6 kA
  • Execution: AC-MCB (alternating current, miniature circuit breaker)
  • Series/Type: BMS6
  • Power Loss: 6.90 W
  • Operating Temperature Range: -40°C to +75°C

Constructive Dimensions:

  • Width: 53.40 mm
  • Height: 83.00 mm
  • Depth: 74.90 mm
  • Net Weight: 0.36 kg

Standards Compliance:

The device complies with the requirements of EN 60898-1:2019, EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018.

Manufacturer: Schrack

Supply Options: 1 pcs, 4 pcs, 40 pcs.

EAN Code9004840397161
Net Width53.40 mm
Net Height83.00 mm
Net Depth74.90 mm
Net Weight0.36 kg
Power Loss6.90 W
Min. Ambient Temperature-40°C
Max. Ambient Temperature75°C
CharacteristicC
Poles3
Nominal Current16 A
TypeBMS6
SeriesBMS6
Switching Capacity6 kA
ExecutionAC-MCB
StandardEN 60898-1:2019, EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018
ManufacturerSchrack
Packaging1 pcs, 4 pcs, 40 pcs
