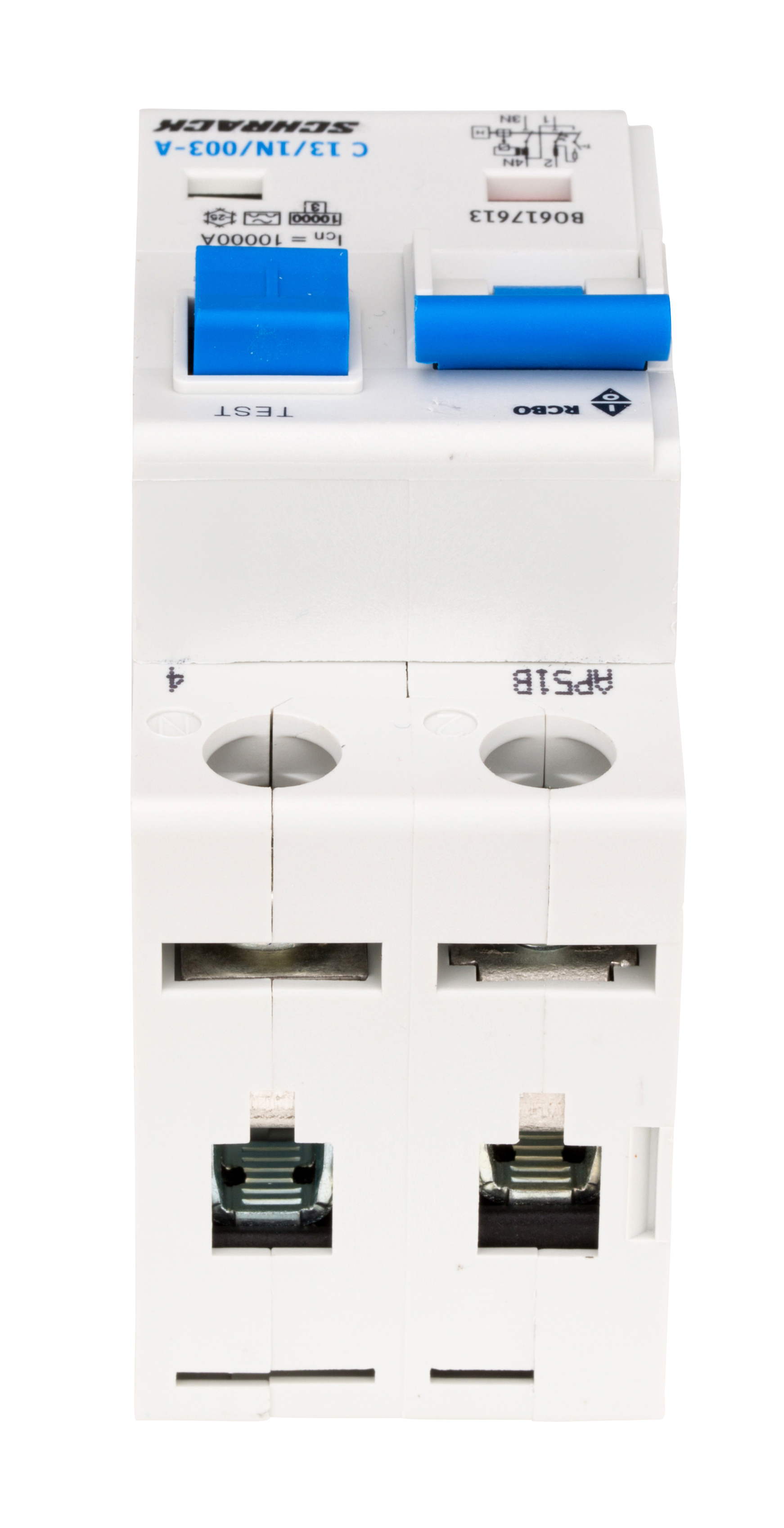

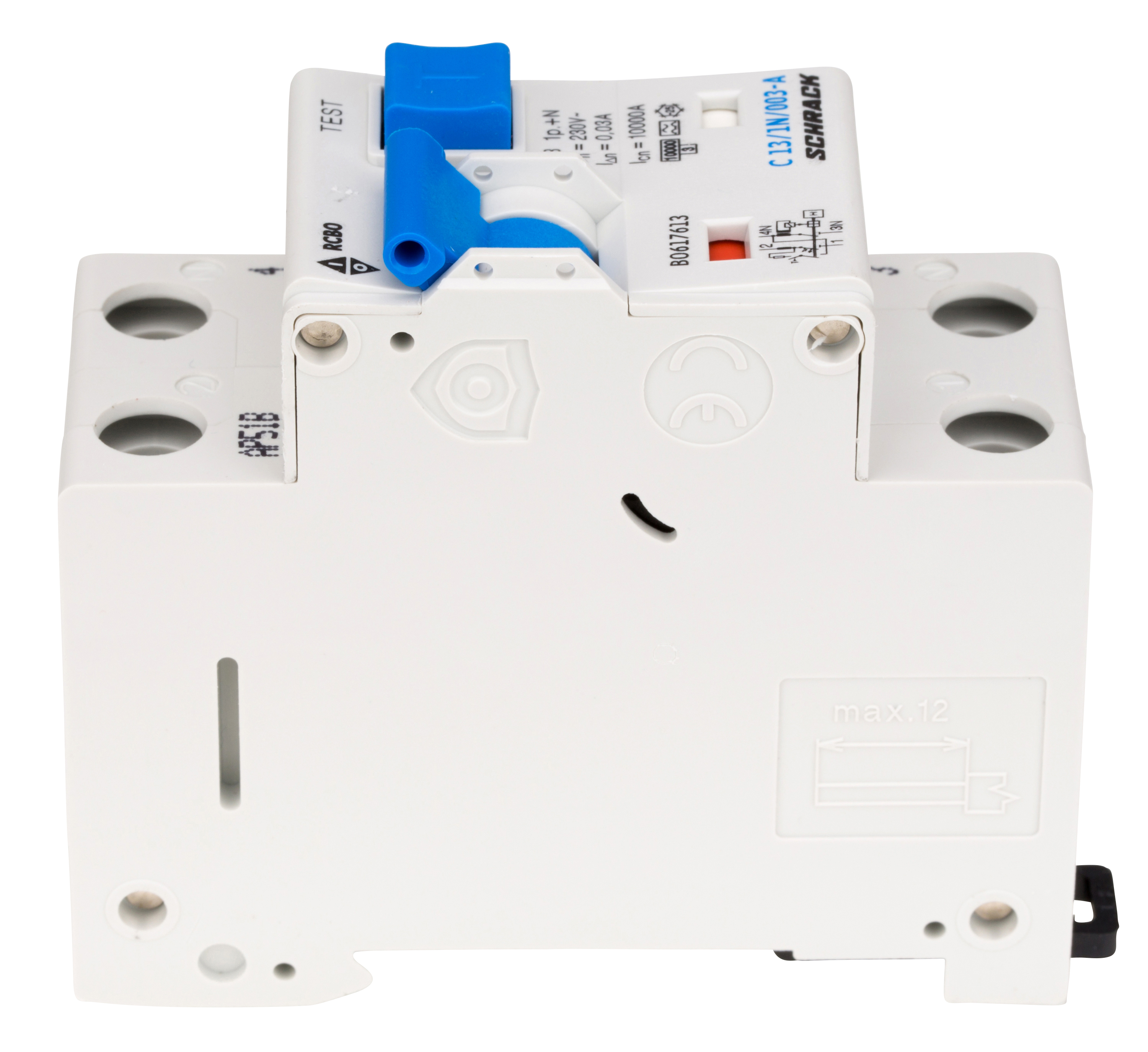

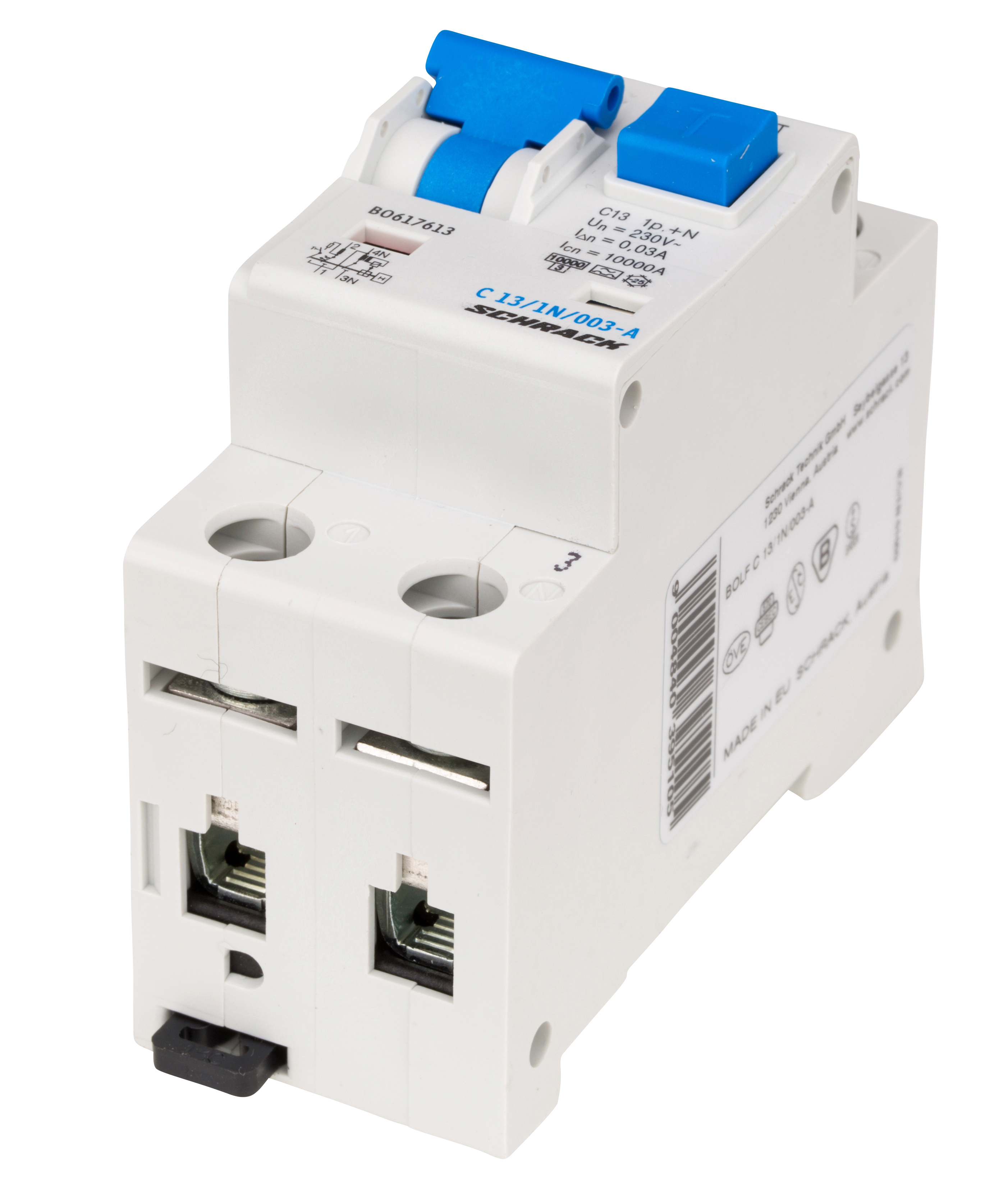

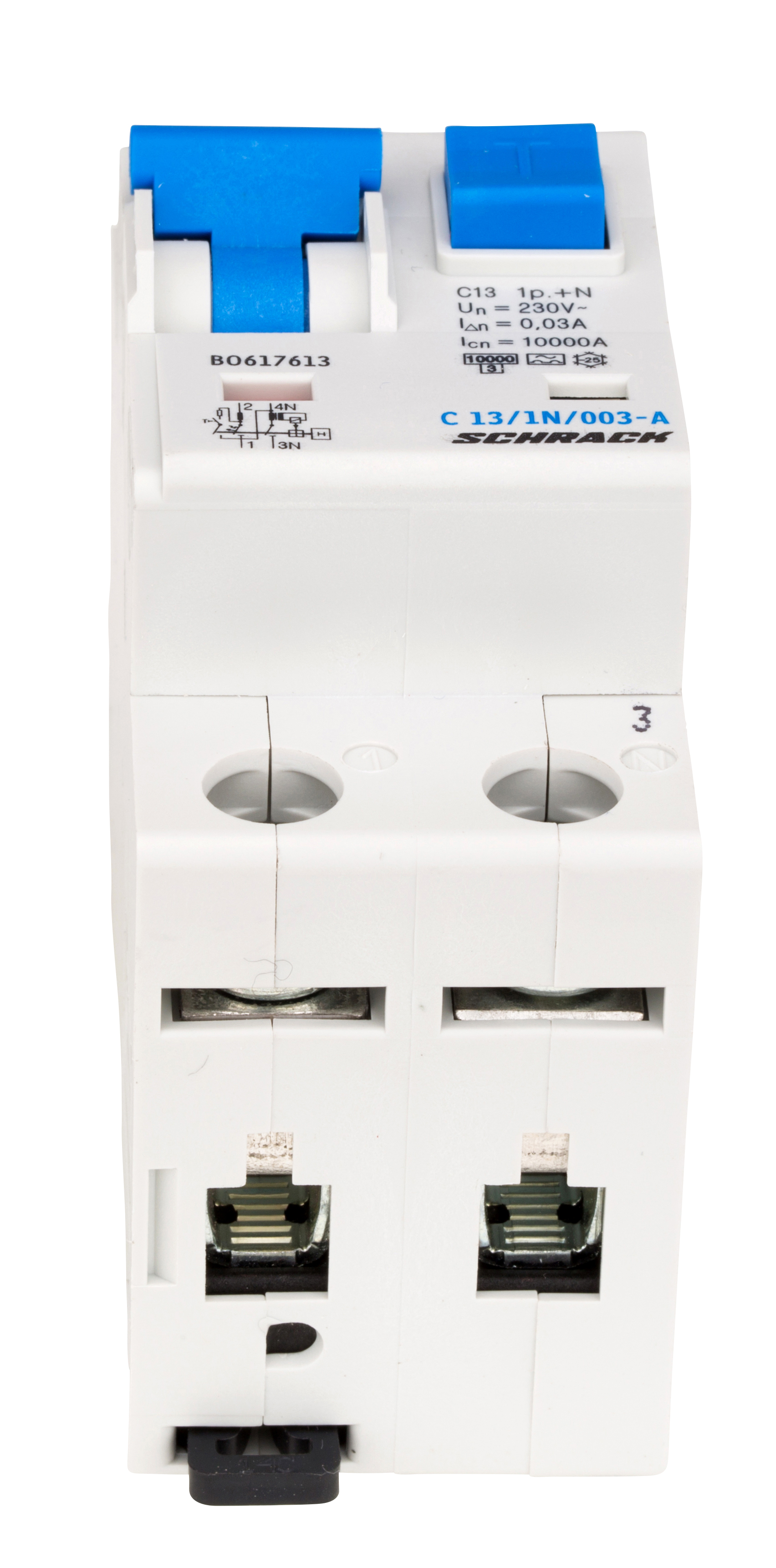

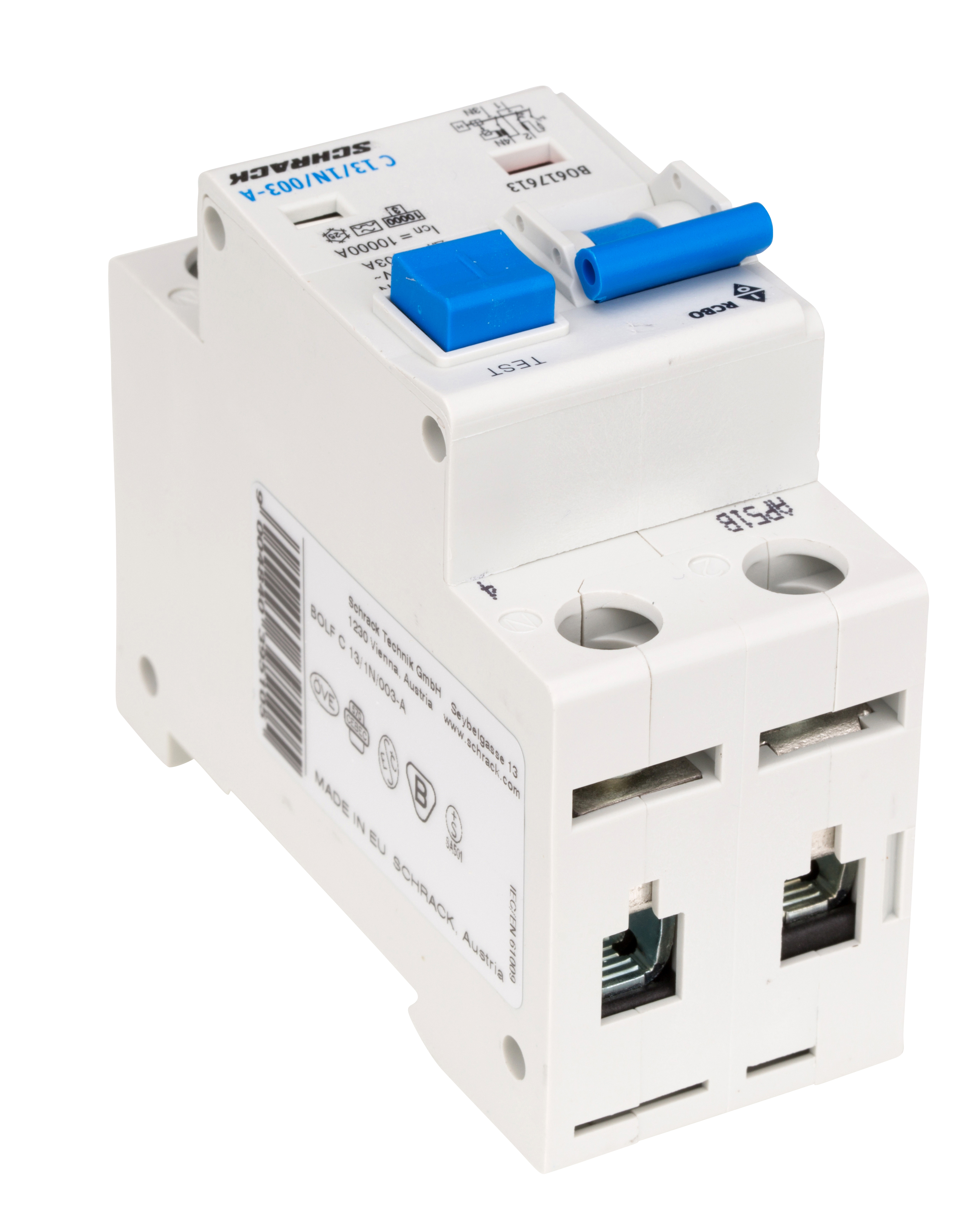

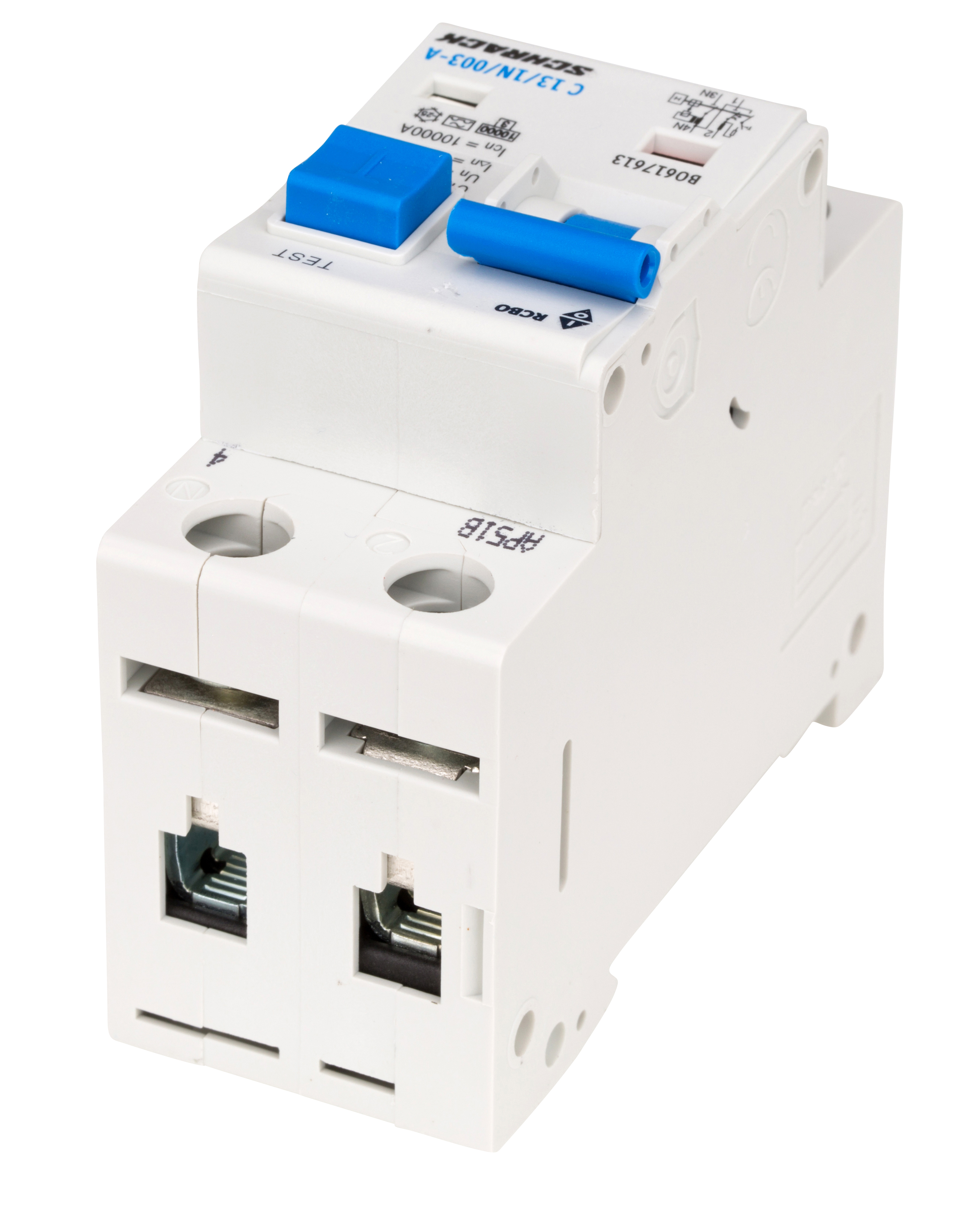

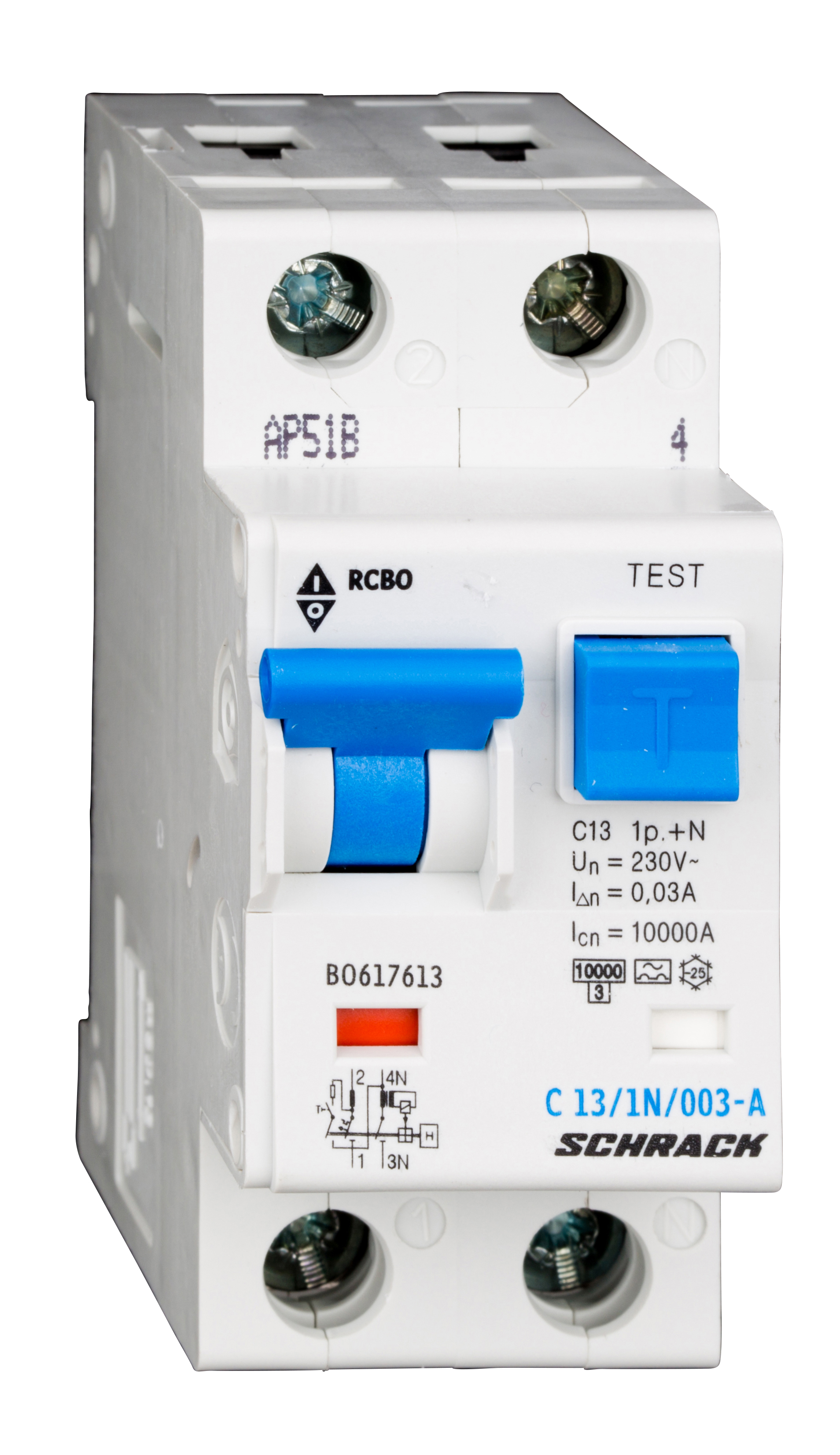

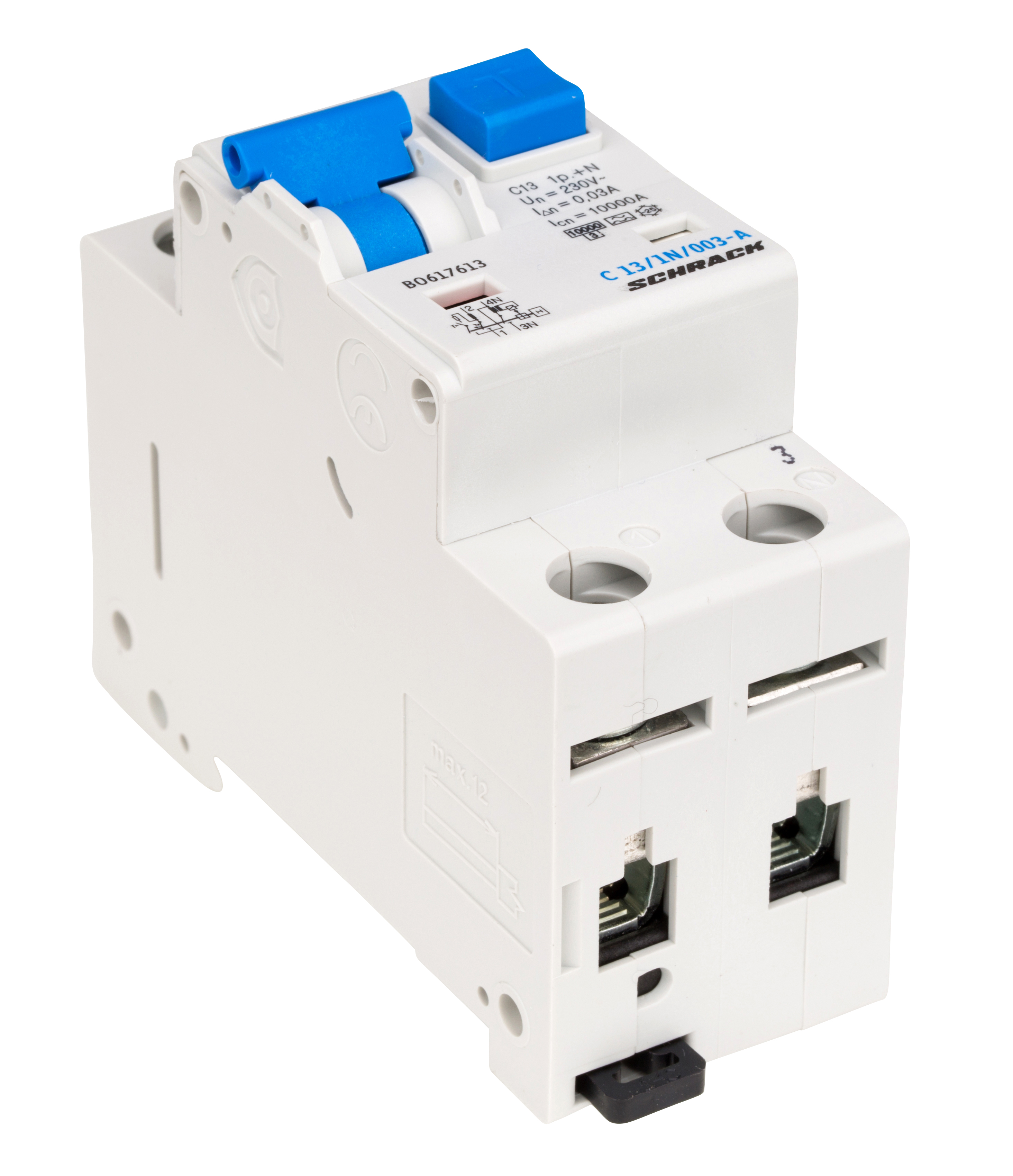

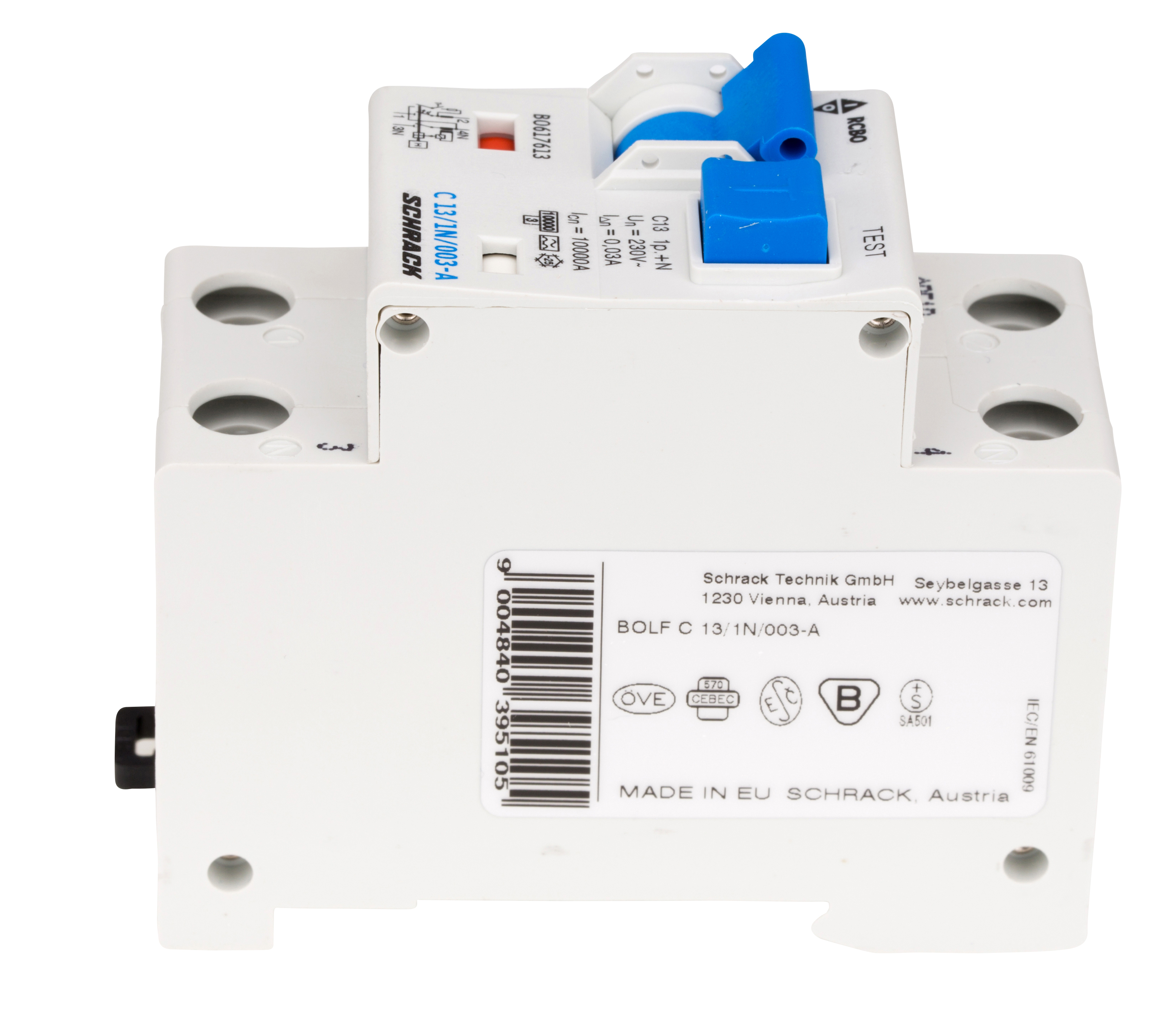

RCD C13A/1+N/10kA/30mA/A, Series B
1 / 9
RCD C13A/1+N/10kA/30mA/A, Series BRCD C13A/1+N/10kA/30mA/A, Series BRCD C13A/1+N/10kA/30mA/A, Series BRCD C13A/1+N/10kA/30mA/A, Series BRCD C13A/1+N/10kA/30mA/A, Series BRCD C13A/1+N/10kA/30mA/A, Series BRCD C13A/1+N/10kA/30mA/A, Series BRCD C13A/1+N/10kA/30mA/A, Series BRCD C13A/1+N/10kA/30mA/A, Series B

RCD C13A/1+N/10kA/30mA/A, Series B

Article: BO617613--

АВДТ BO

44 810 ₸

To order
WhatsAppTelegram

A Residual Current Device (RCD) designed to protect electrical circuits from leakage currents and overloads. The device is of type A and responds to constant, alternating, and pulsating leakage currents. It trips instantaneously when the rated residual current is reached.

Main characteristics:

  • Rated current: 13A
  • Pole configuration: 1+N (single-phase circuit with neutral)
  • Rated residual sensitivity IΔn: 30mA
  • Commutating capacity: 10kA
  • Trip characteristic: C (for circuits with moderate inrush currents)
  • Type: A (sensitive to pulsating, direct, and alternating residual current)
  • Trip mode: instantaneous

Technical parameters:

  • Dimensions: 73 × 35 × 86 mm
  • Weight: 0,22 kg
  • Power loss: 3.10 W
  • Ambient temperature range: from -35°C to +60°C

Compliance standards:

  • EN 61009-1:2012 + A12:2006
  • EN 61009-2-1:1994 + A11:1998

Manufacturer: Schrack, BOLF series

Packaging: available in consumer (1 pcs) and bulk (60 pcs) packaging

EAN code9004840395105
Length net73.00 mm
Width net35.00 mm
Height net86.00 mm
Weight net0.22 kg
Power loss3.10 W
Min. ambient temperature-35°C
Max. ambient temperature60°C
StandardEN 61009-1:2012 + A12:2006, EN 61009-2-1:1994 + A11:1998
TypeA (sensitive to pulsating current)
Trip typeinstantaneous
Rated residual sensitivity IΔn30mA
CharacteristicC
Current rating13A
Poles1+N
Commutating capacity10kA
SeriesBOLF
ManufacturerSchrack
Packaging1 pcs, 60 pcs
