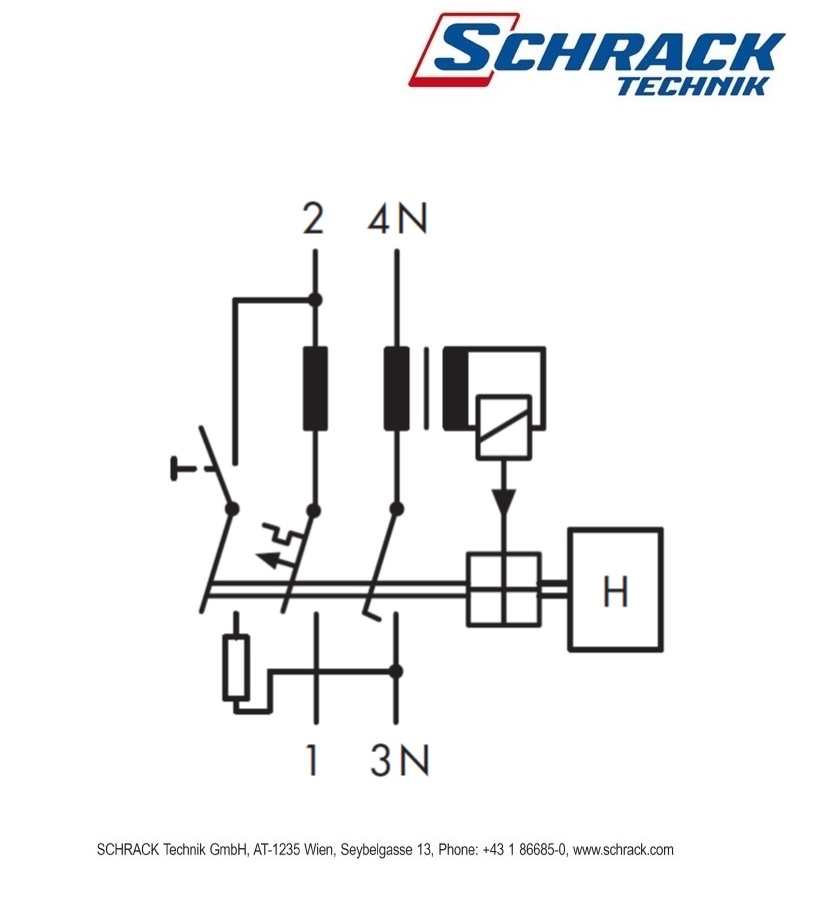

Residual Current Device (RCD) designed to protect electrical circuits from leakage currents and overloads. The device provides reliable protection of people from electric shock and prevents equipment damage.
Main characteristics:
- Nominal current: 25 A
- Configuration: 1 phase + neutral (1+N)
- Nominal residual current sensitivity (IΔn): 30 mA
- Response time: instantaneous
- Disconnection characteristic: C (designed for circuits with inductive loads)
- Type: A (sensitive to pulsating DC and sinusoidal AC current)
- Breaking capacity: 10 kA
- Standards: EN 61009-1:2012 + A12:2006, EN 61009-2-1:1994 + A11:1998
Physical parameters:

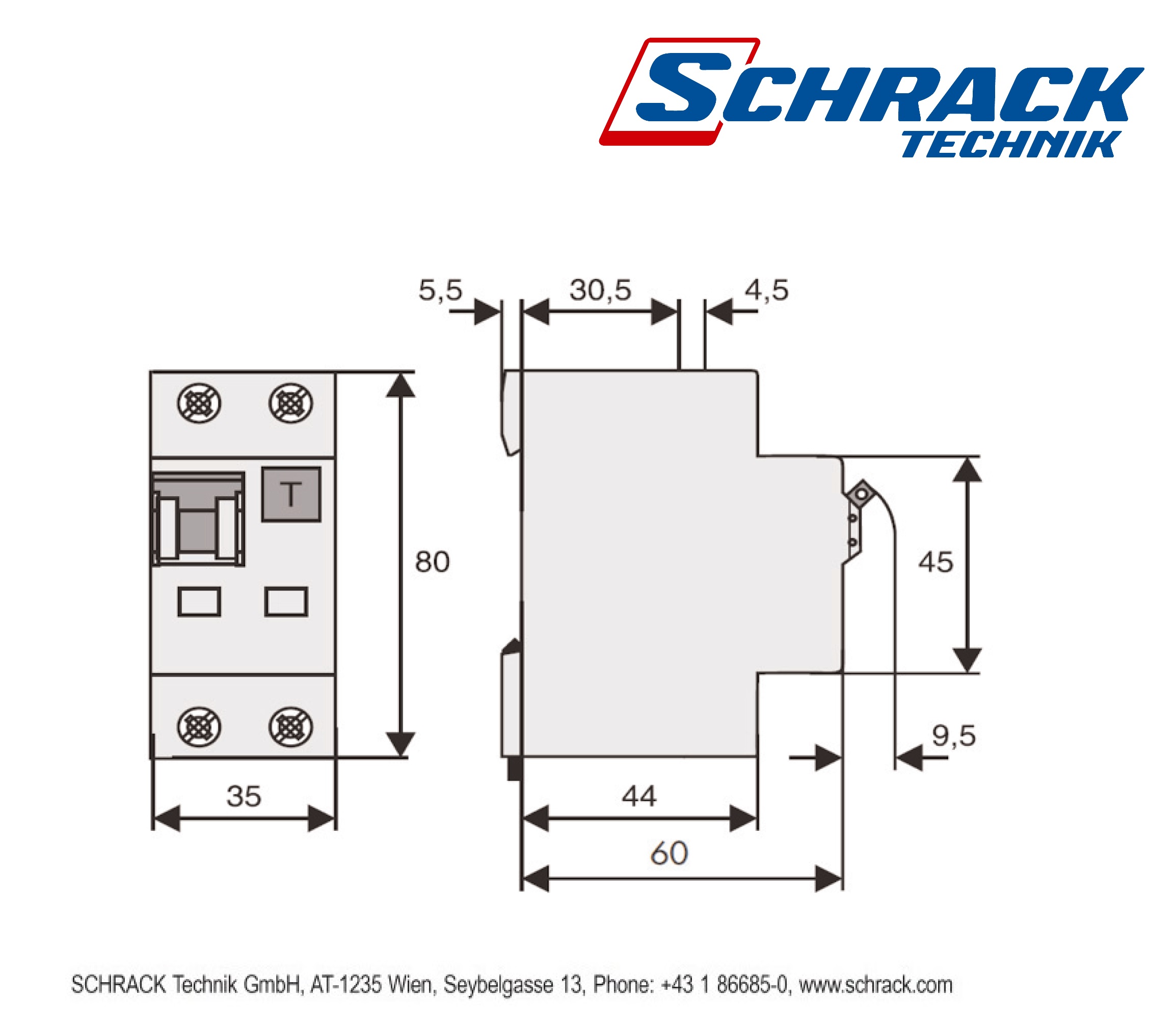

- Dimensions (H × W × D): 86 × 35 × 73 mm
- Weight: 0.20 kg
- Operating temperature range: from -35°C to +60°C
- Power loss: 4.80 W
Manufacturer: Schrack, BOLF series
EAN code: 9004840395136
Packaging: available in packages of 1 pc and 60 pcs
| EAN code | 9004840395136 |
|---|---|
| Length (net) | 73.00 mm |
| Width (net) | 35.00 mm |
| Height (net) | 86.00 mm |
| Weight (net) | 0.20 kg |
| Power loss | 4.80 W |
| Min. ambient temperature | -35°C |
| Max. ambient temperature | 60°C |
| Standard | EN 61009-1:2012 + A12:2006, EN 61009-2-1:1994 + A11:1998 |
| Type | A (sensitive to pulsating current) |
| Type | instantaneous |
| Nominal sensitivity IΔn | 30 mA |
| Characteristic | C |
| Current | 25 A |
| Pole | 1+N |
| Breaking capacity | 10 kA |
| Series | BOLF |
| Manufacturer | Schrack |
| Packaging | 1 pc, 60 pcs |
