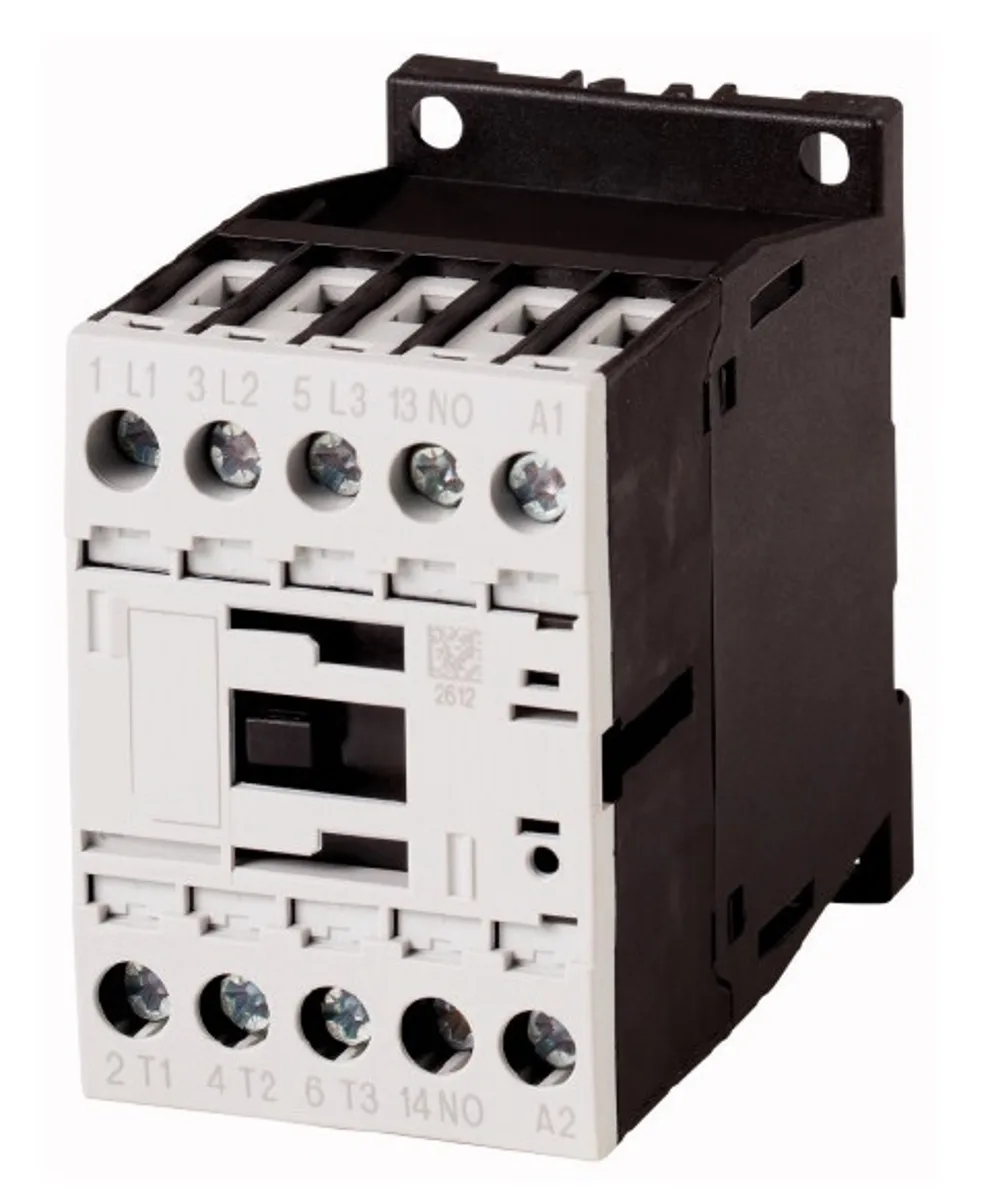

Contactor 5.5kW/400V/12A/1NC, coil 24VDC

Contactor 5.5kW/400V/12A/1NC, coil 24VDC

Article: LTD01225--

Контакторы ALEA II LT

22 270 ₸

To order
WhatsAppTelegram

Industrial power contactor with rated power of 5.5 kW at 400 V (AC-3) and rated current of 12 A. Designed for switching three-phase asynchronous electric motors and other inductive loads in industrial installations.

Main characteristics:

  • Main contacts: 3 closing contacts (3 poles)
  • Auxiliary contacts: 1 opening contact
  • Coil voltage: 24 VDC
  • Rated current: 12 A
  • Application category: AC-3 (three-phase asynchronous motors, switching off at full speed)
  • Power loss: 8.70 W
  • Dimensions: width 45 mm, height 68 mm, depth 75 mm
  • Weight: 0.30 kg
  • Manufacturer: Schrack
  • EAN code: 9004840840797

The contactor provides reliable motor control and can be integrated into distribution panels and motor starters. Low coil power consumption makes it economical in operation.

EAN code9004840840797
Net width45.00 mm
Net height68.00 mm
Net depth75.00 mm
Net weight0.30 kg
Power loss8.70 W
TypePower contactor
DC coil voltage24 V
Rated current12 A
Main contacts3 closing contacts
ManufacturerSchrack
AC-3 380 V 400 V [P]5.5 kW
Packaging1 pcs., 102 pcs.
Auxiliary contacts1 opening contact
