Automatic circuit breaker with RCD B13A/1+N, 6kA, 30mA, type A
Article: AK668613--
23 350 ₸
To order
A combined modular device that integrates the functions of an automatic circuit breaker and a residual current device (RCD) for protection against earth leakage. Designed to protect electrical circuits from overcurrent and leakage currents.
Main parameters:
- Rated current: 13 A
- Configuration: 1 phase + neutral (N+1)
- Rated sensitivity: 30 mA
- Trip type: A (responds to alternating and pulsating direct current)
- Trip characteristic: B (instantaneous tripping when rated current is exceeded)
- Breaking capacity: 6 kA
- Design: instantaneous (immediate action)
Technical specifications:
- Compliance with standards: EN 61009-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2016, EN 61009-2-1:1994 + A11:1998, IEC 61009-1, IEC 61009-2-1
- Power dissipation: 4.99 W
- Operating temperature range: from −25 °C to +60 °C
- Modularity: 2 modules (18 mm)

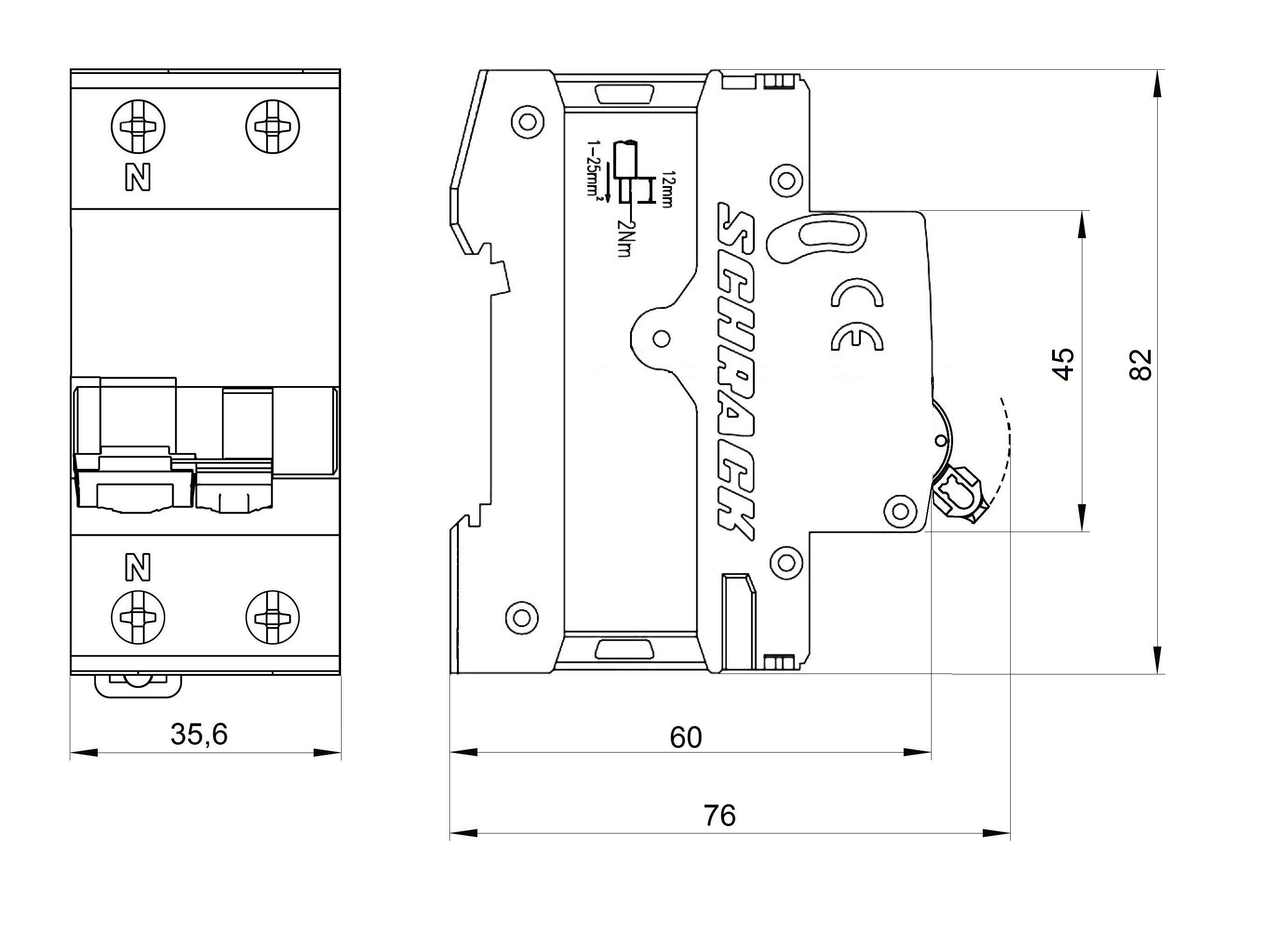

Dimensions and weight:
- Length: 77 mm
- Width: 36 mm
- Height: 85 mm
- Net weight: 0.21 kg
Manufacturer and series: Schrack, AMPARO series
| EAN code | 9004840015386 |
|---|---|
| Length (net) | 77.00 mm |
| Width (net) | 36.00 mm |
| Height (net) | 85.00 mm |
| Weight (net) | 0.21 kg |
| Power dissipation | 4.99 W |
| Min. ambient temperature | −25 °C |
| Max. ambient temperature | 60 °C |
| Standard | EN 61009-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2016, EN 61009-2-1:1994 + A11:1998, IEC 61009-1, IEC 61009-2-1 |
| Type (sensitivity) | A (sensitive to pulsating current) |
| Type (tripping) | Instantaneous |
| Rated sensitivity IΔn | 30 mA |
| Characteristic | B |
| Pole | N+1 |
| Breaking capacity | 6 kA |
| Series | AMPARO |
| Manufacturer | Schrack |
| Packaging | 1 pcs., 90 pcs. |
