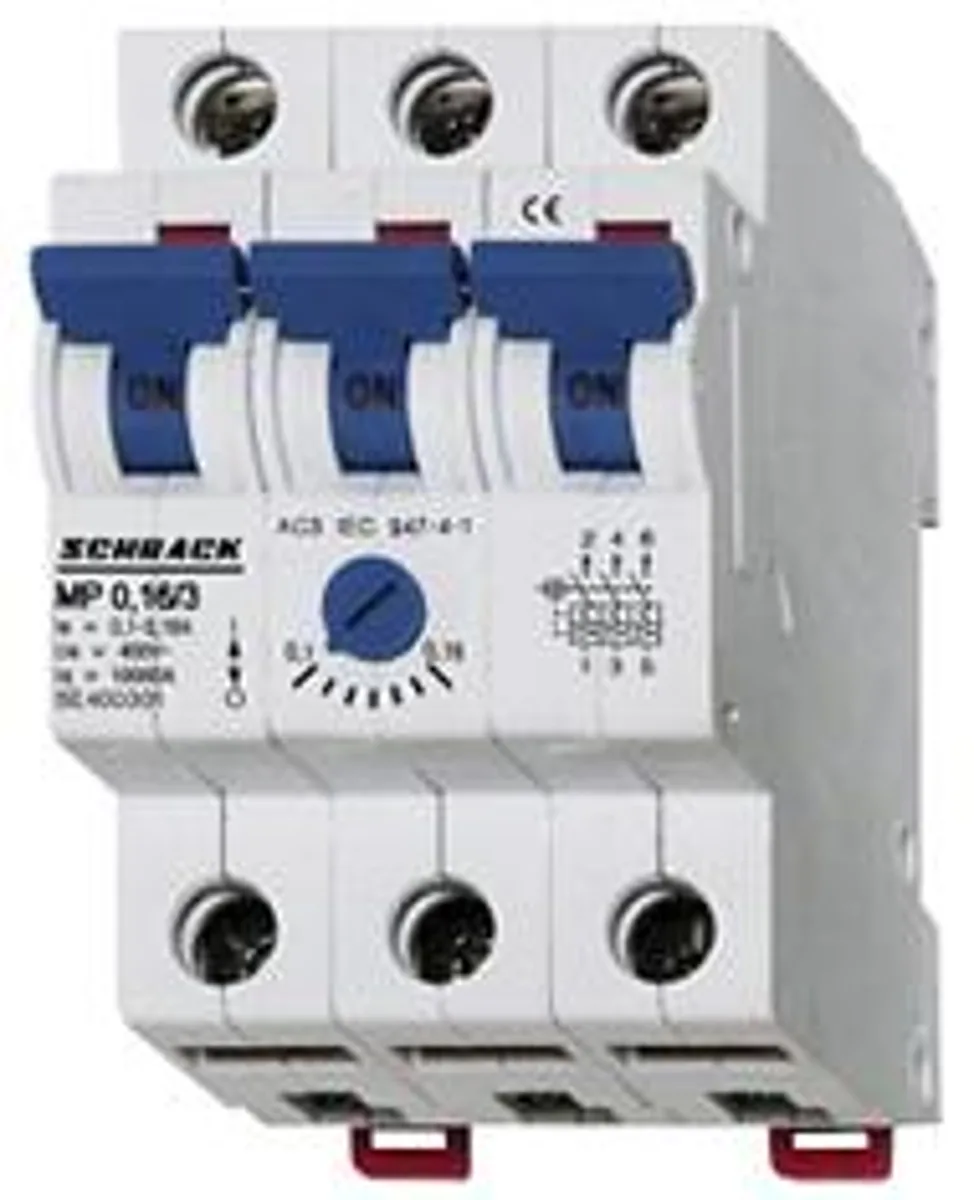

Motor Protection Circuit Breaker 0.16-0.25A/3 BE4
Article: BE400302--
28 560 ₸
In stock
Motor protection circuit breaker designed to protect electric motors from overload and short circuit. The device has a rated current range of 0.16-0.25A and is rated for 3-pole configuration. Provides reliable protection across a wide range of ambient temperatures from -40°C to +70°C. Complies with international standard EN 60947-2:2006 + A1:2009 + A2:2013.
Technical Parameters:
- Rated current: 0.16-0.25A
- Configuration: 3-pole
- Power dissipation: 7.90W
- Dimensions: 53.40 × 80.00 × 71.00 mm
- Net weight: 0.34 kg
- Temperature range: -40°C to +70°C
- Manufacturer: Schrack
The device is mounted on standard DIN rail and is designed for use in distribution cabinets and control panels.
| EAN Code | 9004840266191 |
|---|---|
| Width net | 53.40 mm |
| Height net | 80.00 mm |
| Depth net | 71.00 mm |
| Net weight | 0.34 kg |
| Power dissipation | 7.90 W |
| Min. ambient temperature | -40°C |
| Max. ambient temperature | 70°C |
| Configuration | 3 |
| Rated current | 0.16-0.25 A |
| Standard | EN 60947-2:2006 + A1:2009 + A2:2013 |
| Manufacturer | Schrack |
| Packaging | 1 pcs., 4 pcs., 40 pcs. |
