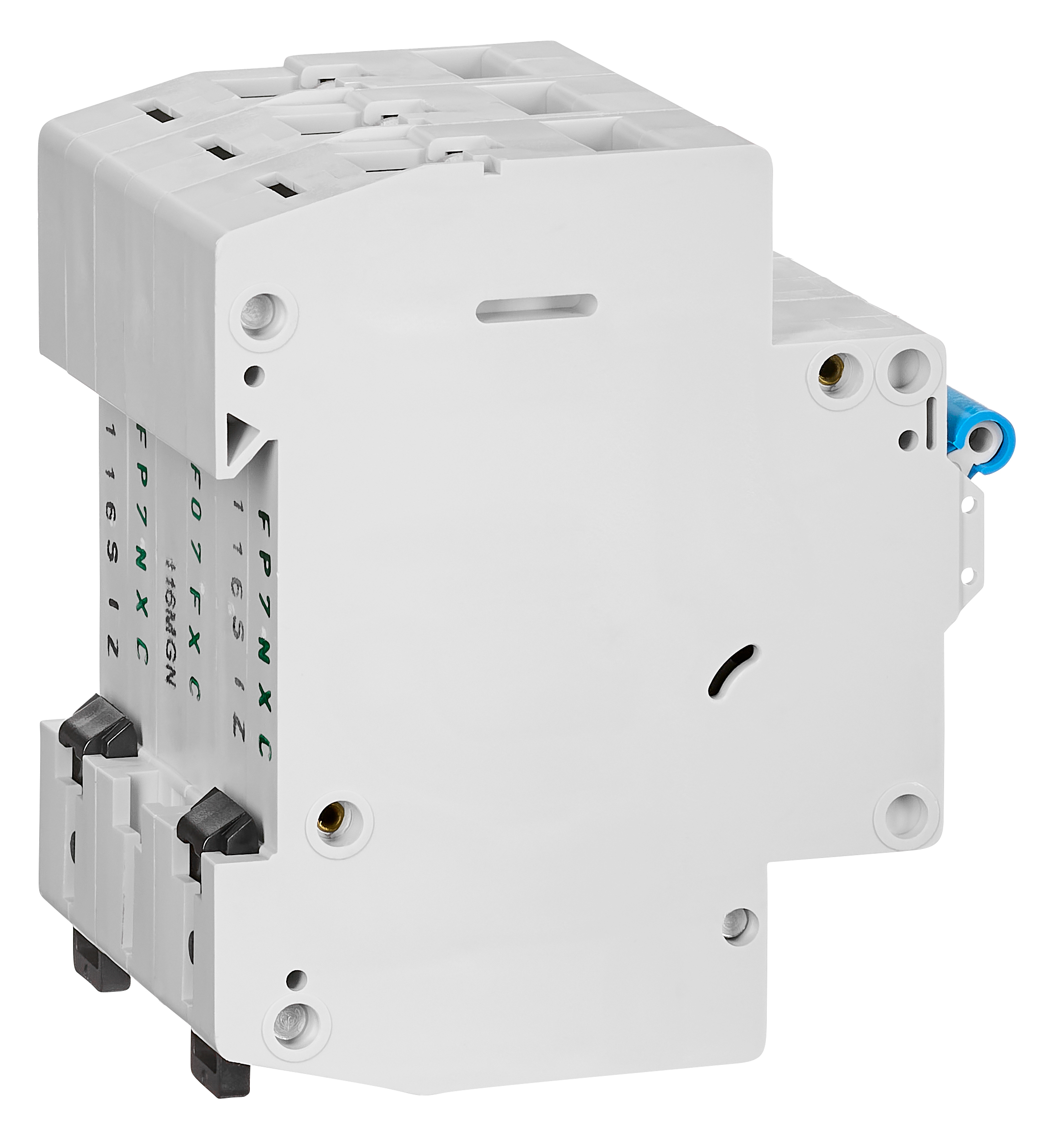

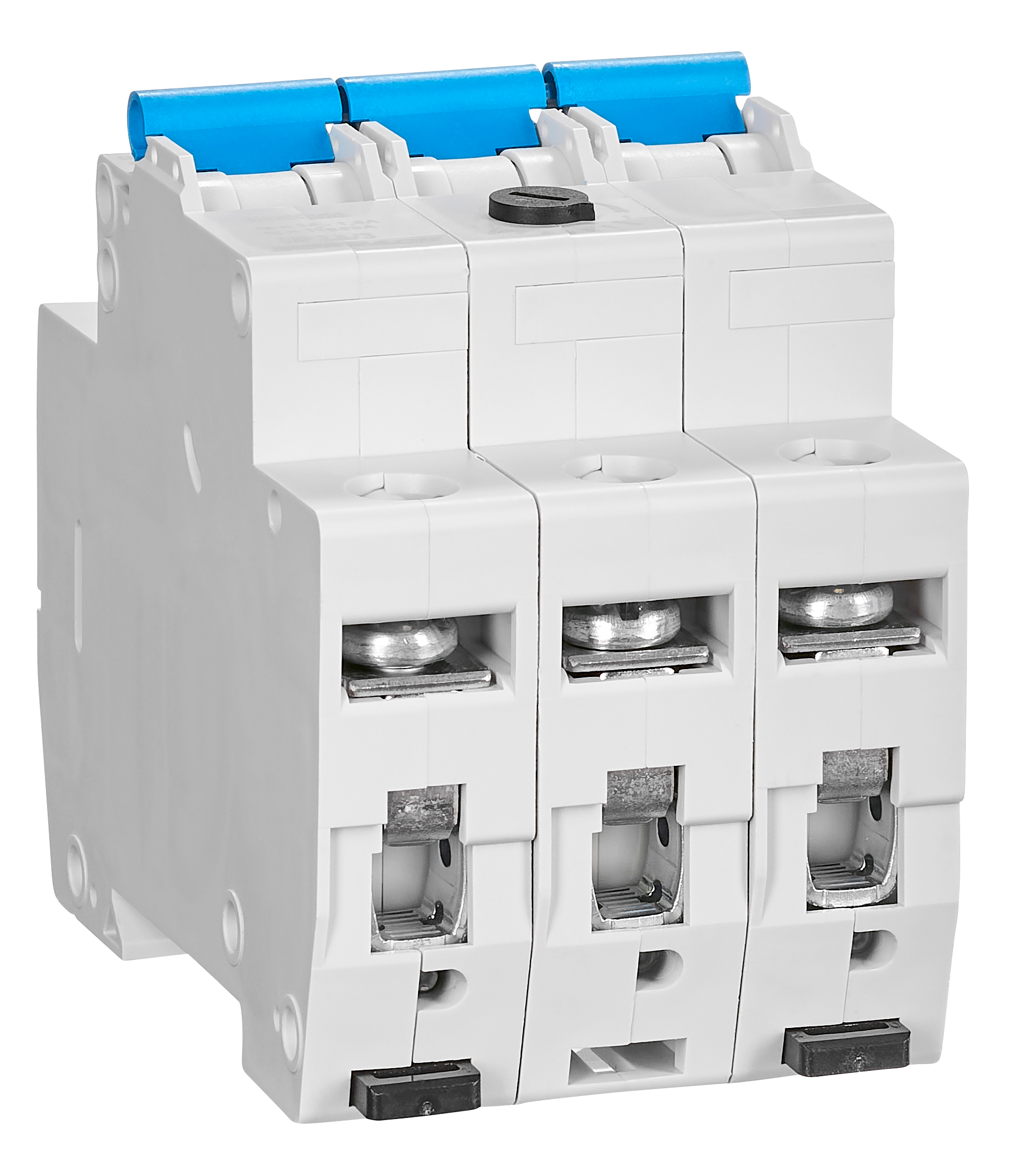

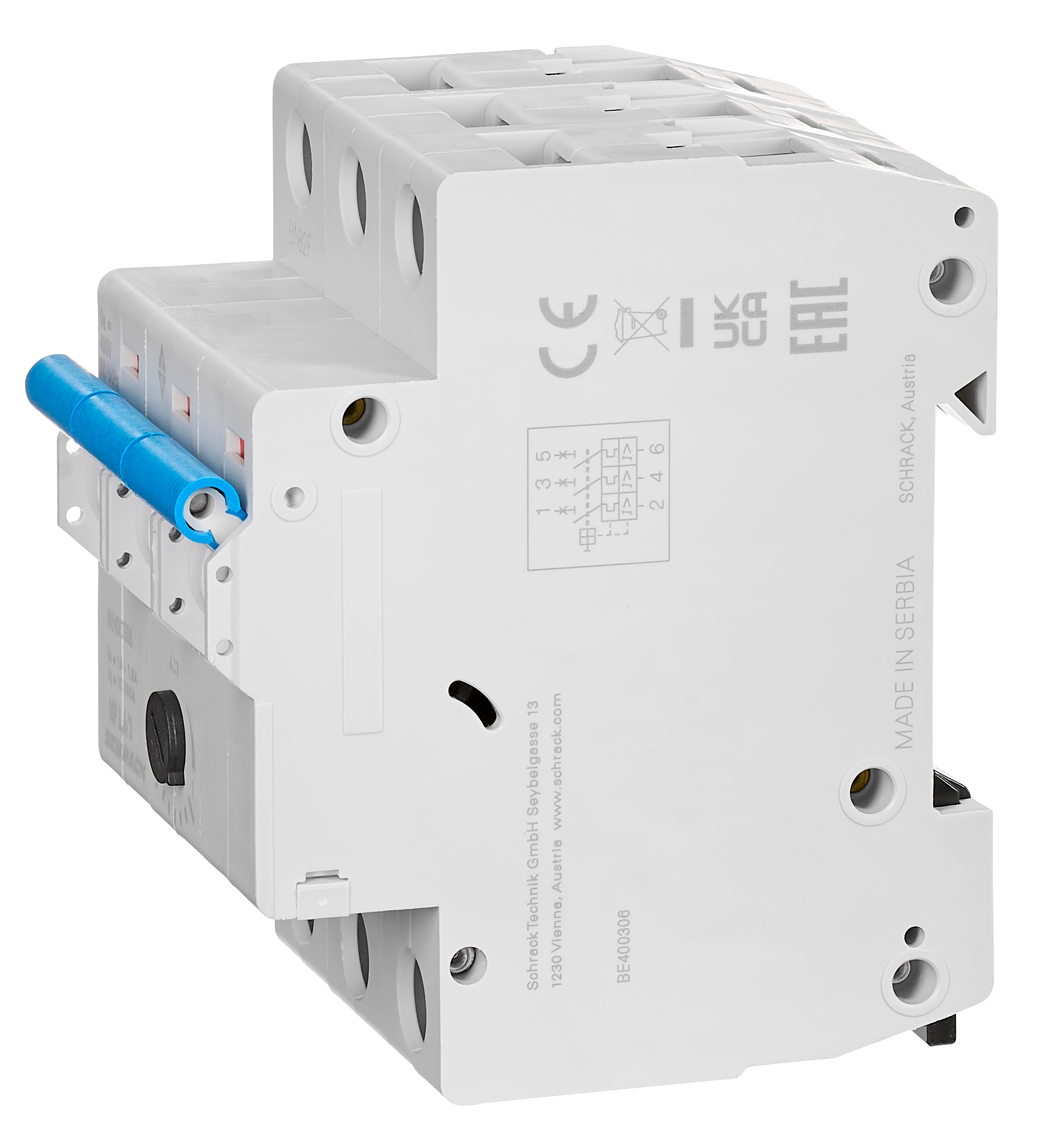

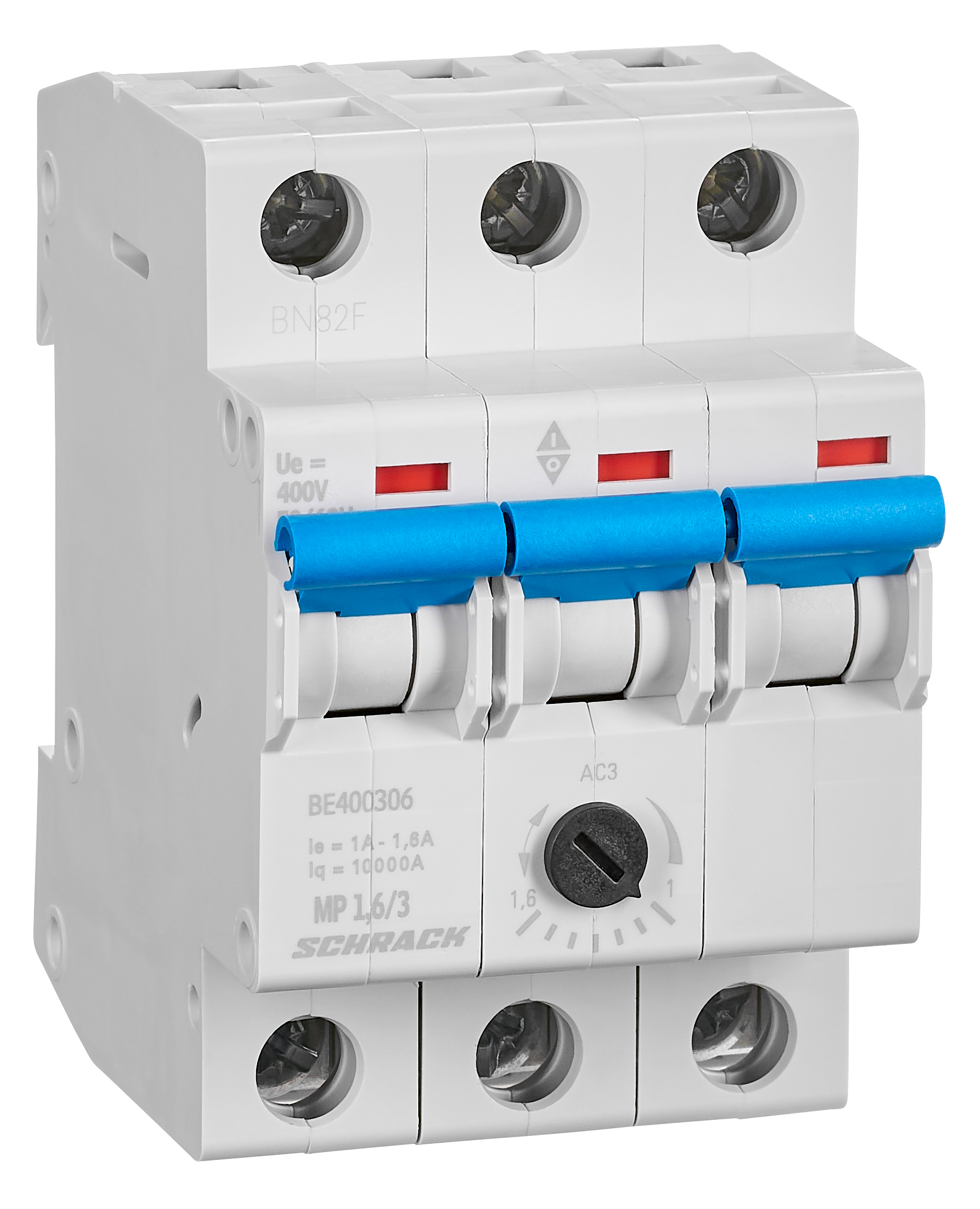

Motor Protection Switch 1.0-1.6A/3 BE4

The BE4 series motor protection switch is designed to protect electric motors from overload and short-circuit currents. The device provides reliable protection in the current range of 1.0-1.6 A with nominal execution 3.

Technical Specifications:

• Operating current range: 1-6.3 A
• Power loss: 5.50 W
• Operating temperature range: -40°C to +70°C
• Compliance standard: EN 60947-2:2006 + A1:2009 + A2:2013
• Dimensions: width 53.40 mm, height 80.00 mm, depth 71.00 mm
• Weight: 0.34 kg
• Manufacturer: Schrack
• EAN code: 9004840266238

The device is manufactured in a compact form factor and is intended for installation in distribution cabinets. It complies with the requirements of European standard EN 60947-2 with current amendments.
