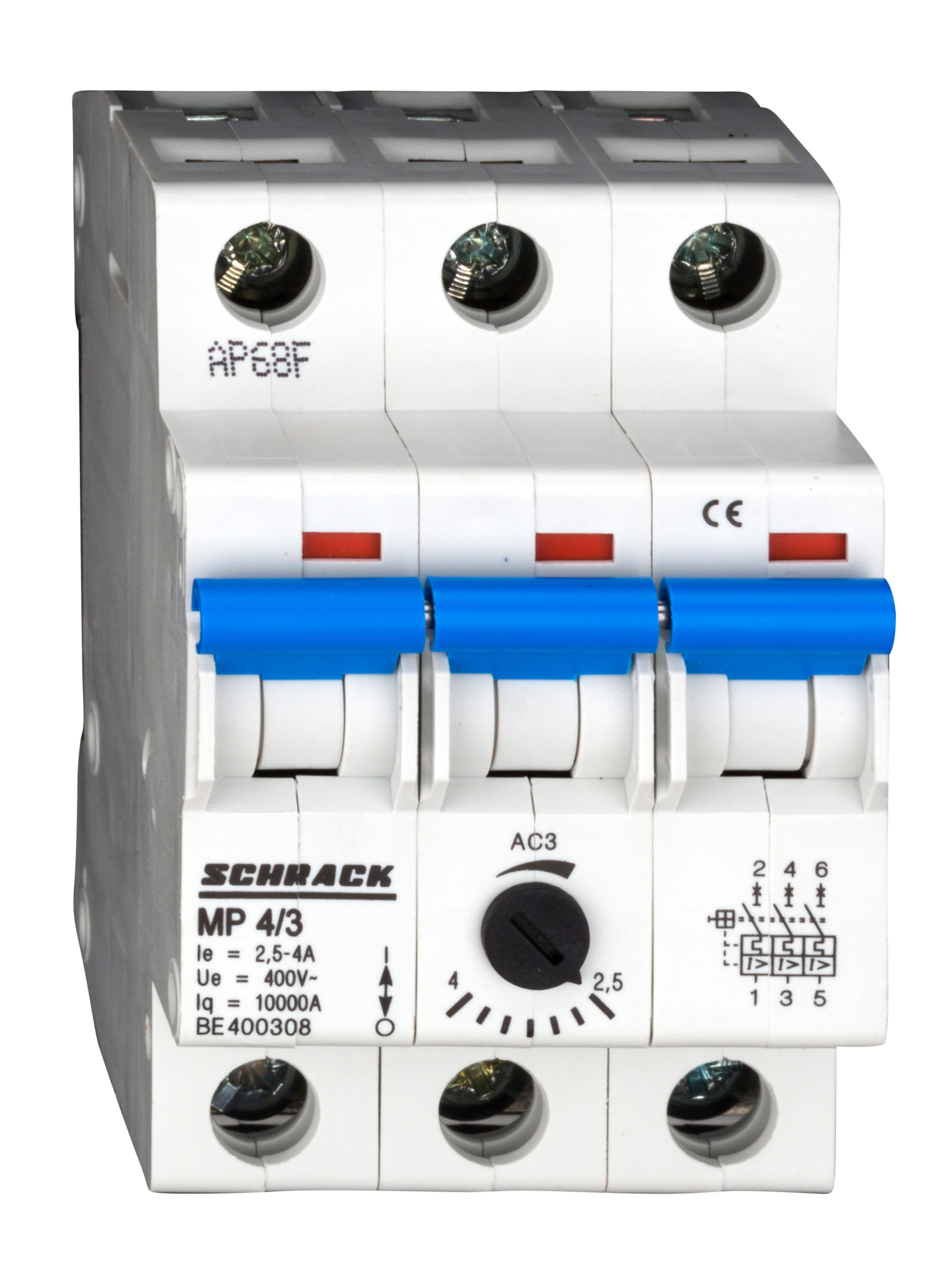

Motor protection switch 2.5-4A/3 BE4

Motor protection switch designed to protect asynchronous electric motors from overload and short circuit conditions. The device provides reliable circuit disconnection when nominal current is exceeded and operates at thermal and magnetic overcurrent conditions.

Main characteristics:

• Current adjustment range: 2.5–4 A/3
• Rated current: 1–6.3 A
• Power loss: 3.90 W
• Operating temperature range: –40°C to +70°C
• Execution class: 3
• Standard compliance: EN 60947-2:2006 + A1:2009 + A2:2013
• Manufacturer: Schrack

Dimensions (net):

• Width: 53.40 mm
• Height: 80.00 mm
• Depth: 71.00 mm
• Weight: 0.34 kg

Packaging options: 1 pc., 4 pc., 40 pc.

The device complies with international standard EN 60947-2 and is designed for industrial applications with high reliability requirements for protection systems.
