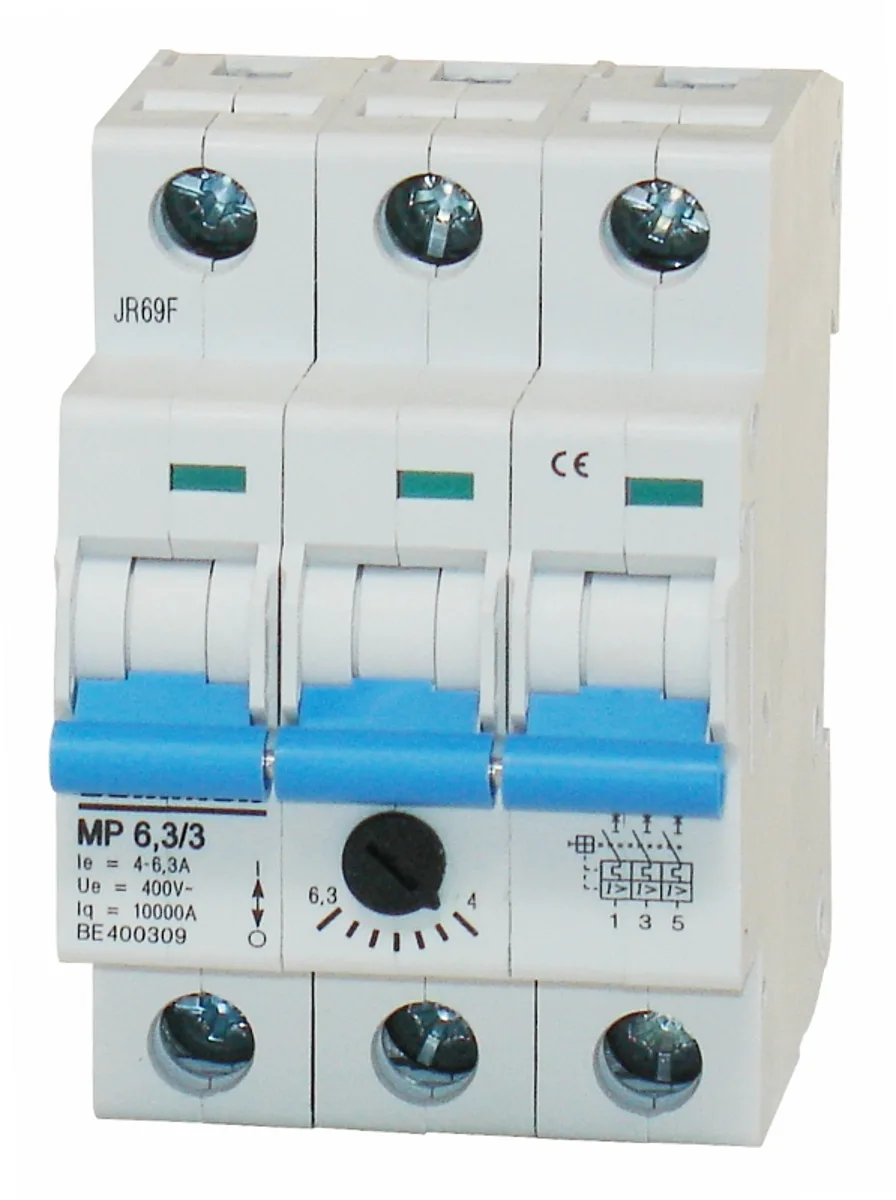

Motor Protection Circuit Breaker 4.0-6.3A/3 BE4

The motor protection circuit breaker is designed to protect electric motors from overload and short circuit conditions. The device ensures reliable disconnection of the circuit when the set current is exceeded. Compact design allows easy integration into distribution panels and control cabinets.

Main Parameters:

• Current Trip Range: 4.0-6.3A
• Rated Current: 1-6.3A with adjustment capability
• Configuration: 3-pole
• Power Loss: 7.60W at rated current
• Operating Temperature Range: from -40°C to +70°C
• Protection Class: complies with standard EN 60947-2:2006 + A1:2009 + A2:2013
• Manufacturer: Schrack

Geometric Dimensions:

• Width: 53.40mm
• Height: 80.00mm
• Depth: 71.00mm
• Weight: 0.34kg

The device is supplied in packages of 1, 4 or 40 units.
