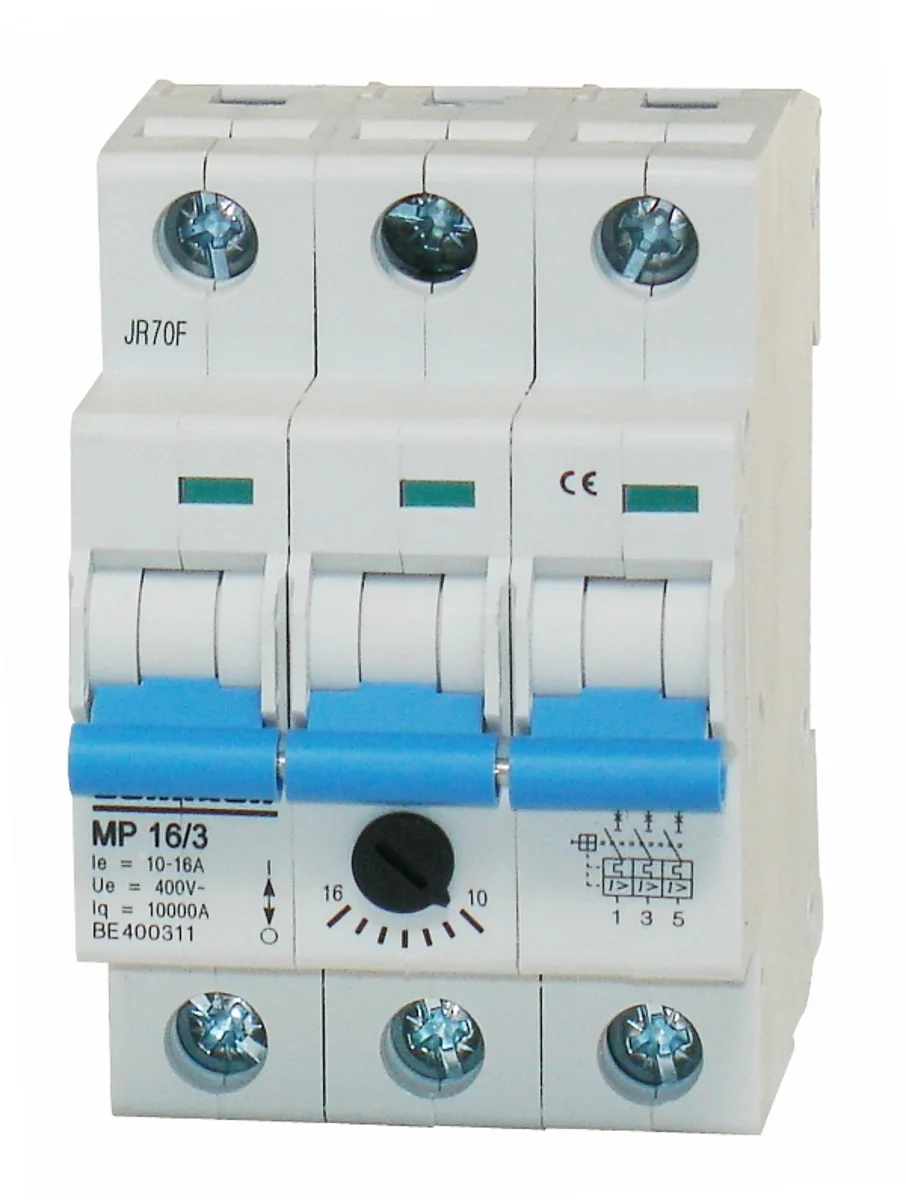

Motor Protection Switch 10.0-16.0A/3 BE4
Article: BE400311--
23 370 ₸
In stock
Motor protection switch designed to protect electric motors from overload and short circuit conditions. The device provides reliable circuit disconnection when nominal current is exceeded or an emergency situation occurs.
Key Parameters:
- Operating range: 10.0-16.0A
- Number of poles: 3
- Power loss at rated current: 9.0W
- Operating temperature range: -40°C to +70°C
- Standard compliance: EN 60947-2:2006 + A1:2009 + A2:2013
Constructive Dimensions:
- Width: 53.40mm
- Height: 80.00mm
- Depth: 71.00mm
- Weight: 0.34kg
The device is manufactured by Schrack and designed for modular installation on DIN rail in distribution cabinets. The apparatus complies with international safety standards and provides effective protection of three-phase electrical circuits.
| EAN code | 9004840266283 |
|---|---|
| Width (net) | 53.40mm |
| Height (net) | 80.00mm |
| Depth (net) | 71.00mm |
| Weight (net) | 0.34kg |
| Power loss | 9.00W |
| Min. ambient temperature | -40°C |
| Max. ambient temperature | 70°C |
| Execution | 3 |
| Current rating | 10-16A |
| Standard | EN 60947-2:2006 + A1:2009 + A2:2013 |
| Manufacturer | Schrack |
| Packaging | 1 pc., 4 pc., 40 pc. |
