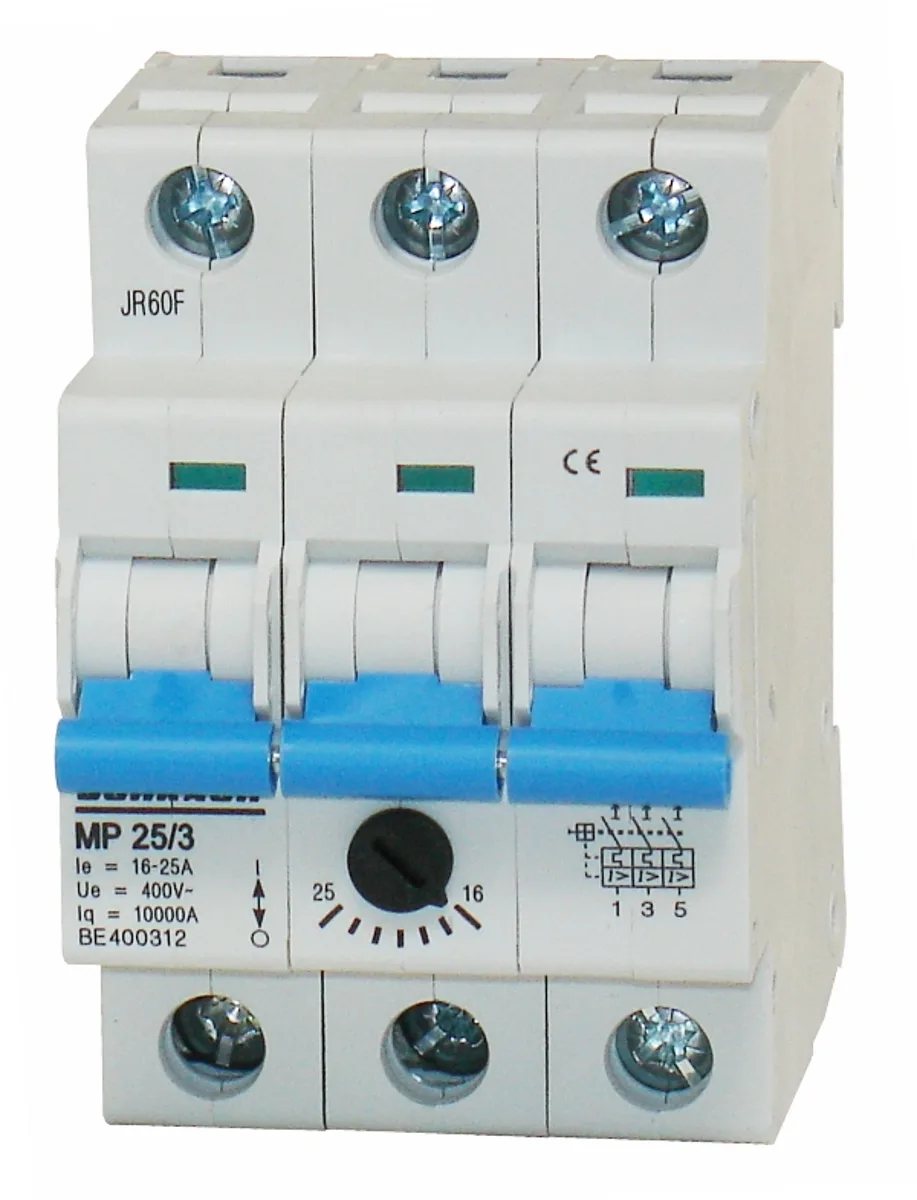

Motor Protection Circuit Breaker 16.0-25.0A/3 BE4
Article: BE400312--
23 370 ₸
To order
Motor protection circuit breaker designed for control and protection of electric motors against overload and short circuit conditions. The device provides reliable disconnection of the circuit when the set load current is exceeded.
Key Characteristics:
- Current Setting Range: 16.0-25.0 A
- Design: 3-pole
- Power Loss: 12.50 W
- Operating Temperature Range: -40°C to +70°C
- Dimensions (HxWxD): 80×53.40×71 mm
- Weight: 0.34 kg
- Compliance Standard: EN 60947-2:2006 + A1:2009 + A2:2013
- Manufacturer: Schrack
The device is suitable for installation in distribution panels and electrical switchboards. It provides selective protection of motor circuits with flexible adjustment to specific operating conditions.
| EAN code | 9004840266290 |
|---|---|
| Net Width | 53.40mm |
| Net Height | 80.00mm |
| Net Depth | 71.00mm |
| Net Weight | 0.34kg |
| Power Loss | 12.50W |
| Min. Ambient Temperature | -40°C |
| Max. Ambient Temperature | 70°C |
| Design | 3 |
| Current Rating | 16-25A |
| Standard | EN 60947-2:2006 + A1:2009 + A2:2013 |
| Manufacturer | Schrack |
| Packaging | 1 pc, 4 pc, 40 pc |
