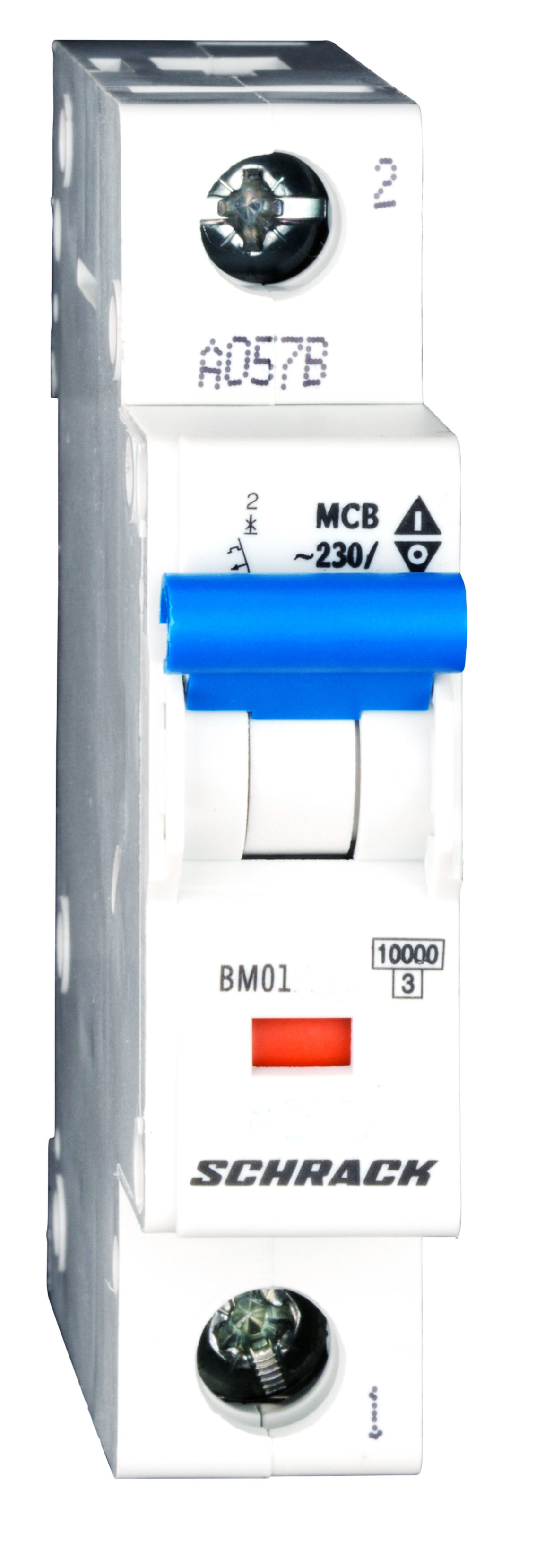

Automatic Circuit Breaker BM ME C4/1 10kA
Article: BM017104ME
6 375 ₸
To order
Single-pole automatic circuit breaker from the BMS0-ME series with a nominal current rating of 4A, C-type characteristic, and 10 kA breaking capacity. Designed to protect electrical circuits from overloads and short-circuit currents in distribution devices and switchboard installations.
Main Parameters:
- Nominal Current: 4A
- Number of Poles: 1
- Trip Characteristic: C (applied in circuits with normal inrush currents)
- Breaking Capacity: 10 kA
- Power Dissipation: 1.40 W
- Compliance Standards: EN 60898-1:2019, EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018
Constructive Characteristics:
- Module Width: 17.80 mm (standard DIN rail)
- Height: 83.00 mm
- Depth: 74.90 mm
- Weight: 0.11 kg
Operating Conditions:
- Temperature Range: from -40°C to +75°C
- Manufacturer: Schrack
- Available Package Options: 1 pc., 12 pcs., 120 pcs.
The circuit breaker complies with modern European safety and reliability standards, provides selective protection of electrical networks, and is compatible with standard mounting systems.
| EAN Code | 9004840591248 |
|---|---|
| Width (Net) | 17.80 mm |
| Height (Net) | 83.00 mm |
| Depth (Net) | 74.90 mm |
| Weight (Net) | 0.11 kg |
| Power Dissipation | 1.40 W |
| Min. Ambient Temperature | -40°C |
| Max. Ambient Temperature | 75°C |
| Characteristic | C |
| Pole | 1 |
| Nominal Current | 4A |
| Type | BMS0-ME |
| Series | BMS0 |
| Breaking Capacity | 10 kA |
| Design | AC-MCB-ME |
| Standard | EN 60898-1:2019, EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018 |
| Manufacturer | Schrack |
| Packaging | 1 pc., 12 pcs., 120 pcs. |
