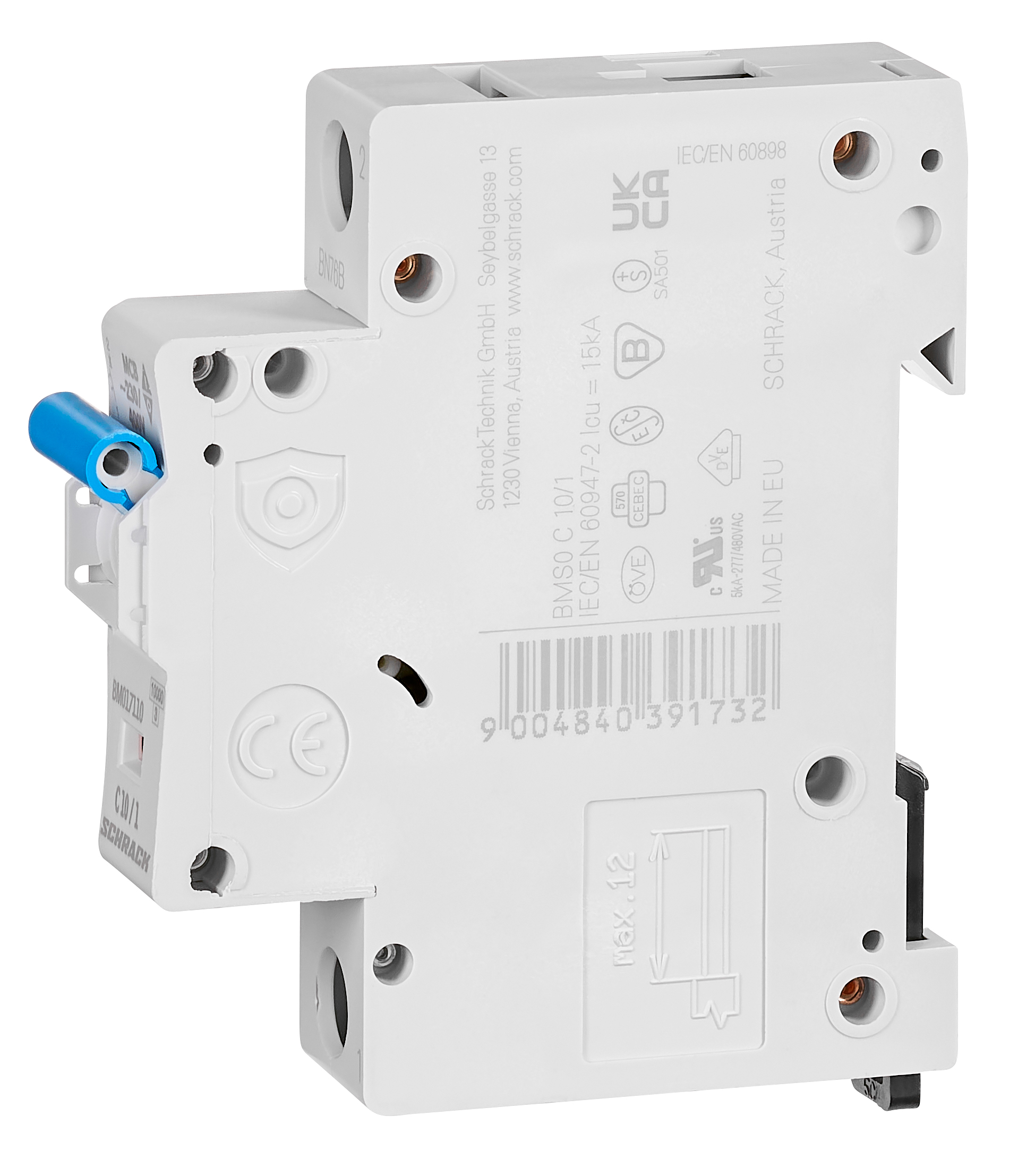

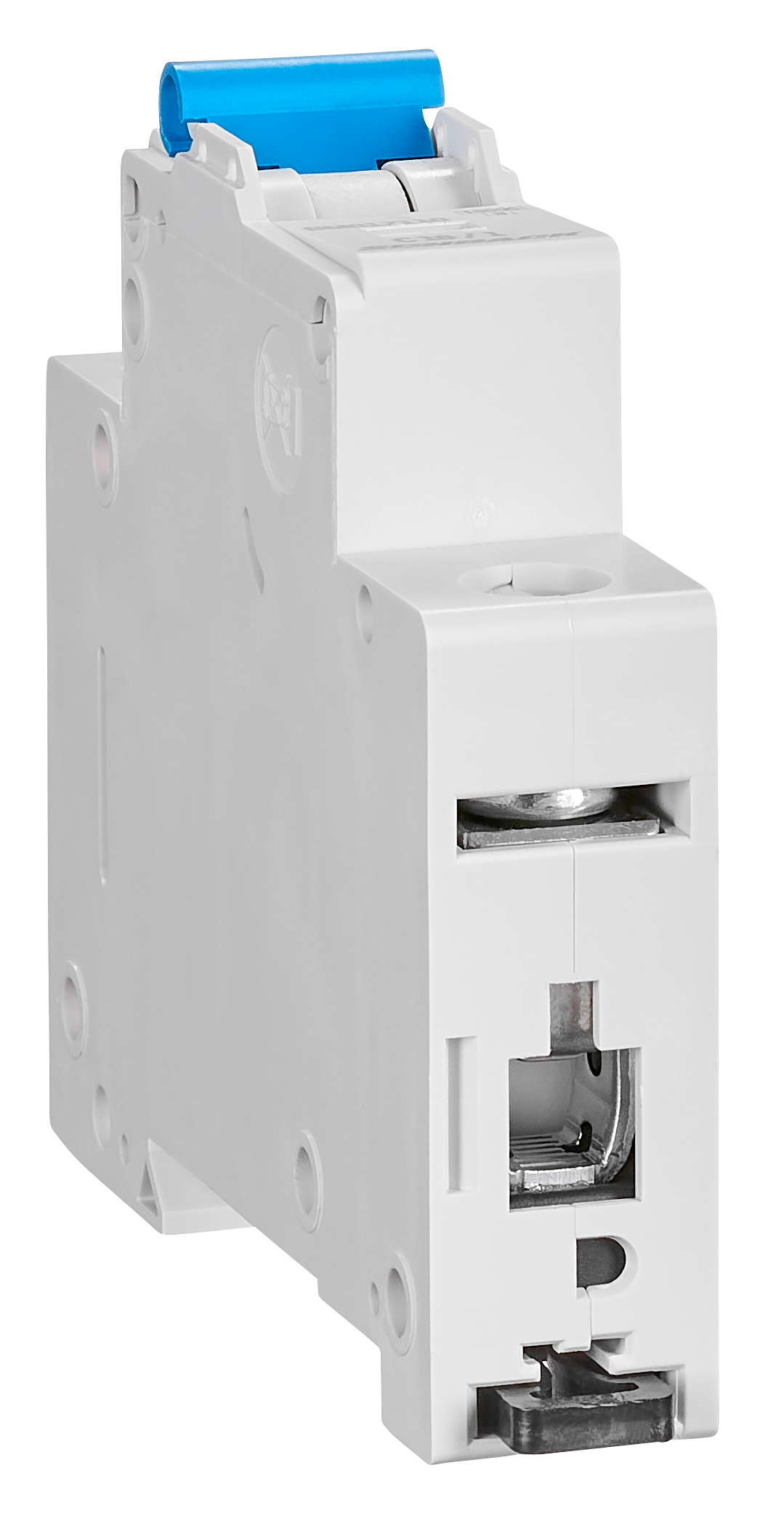

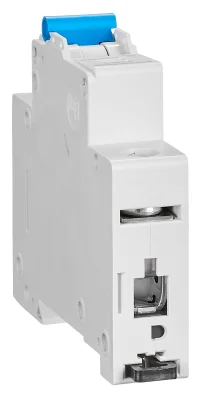

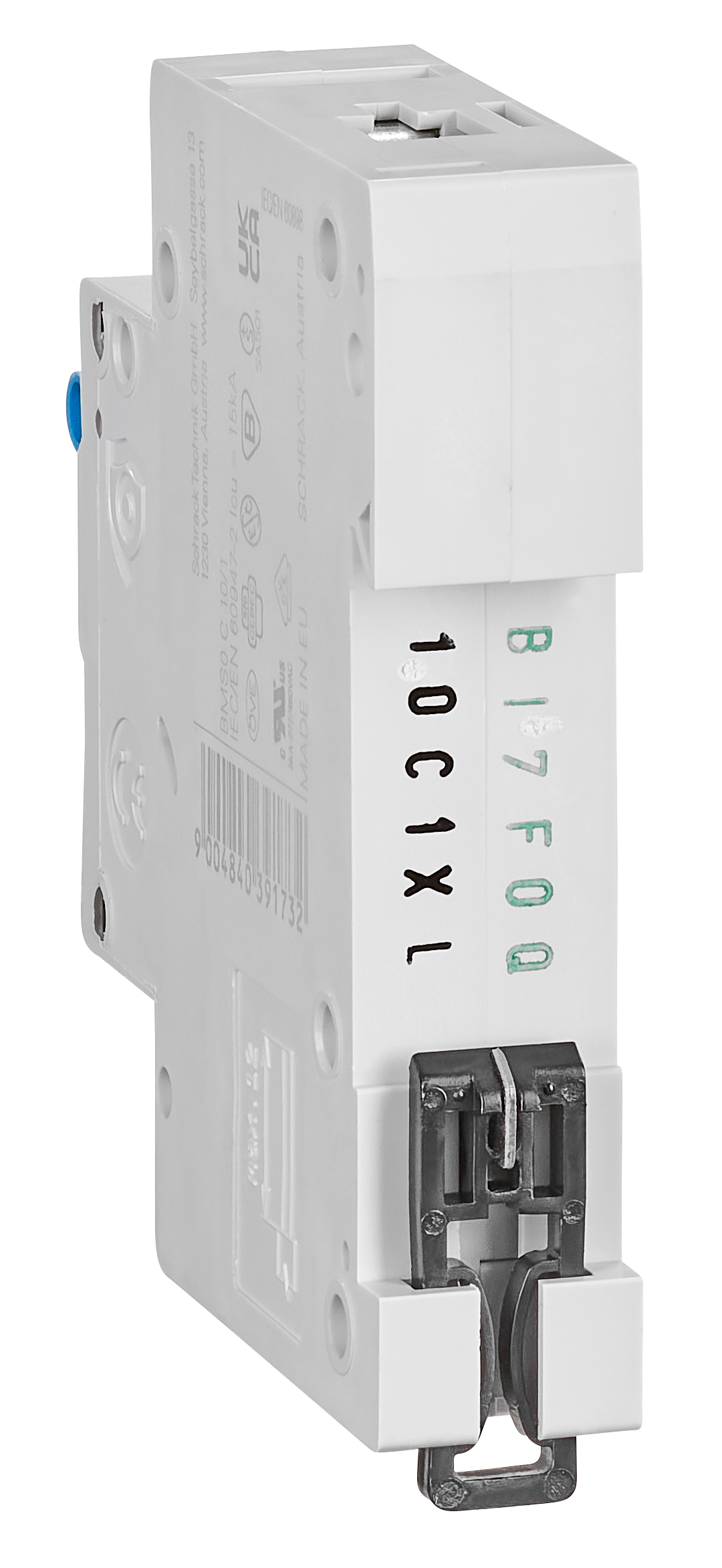

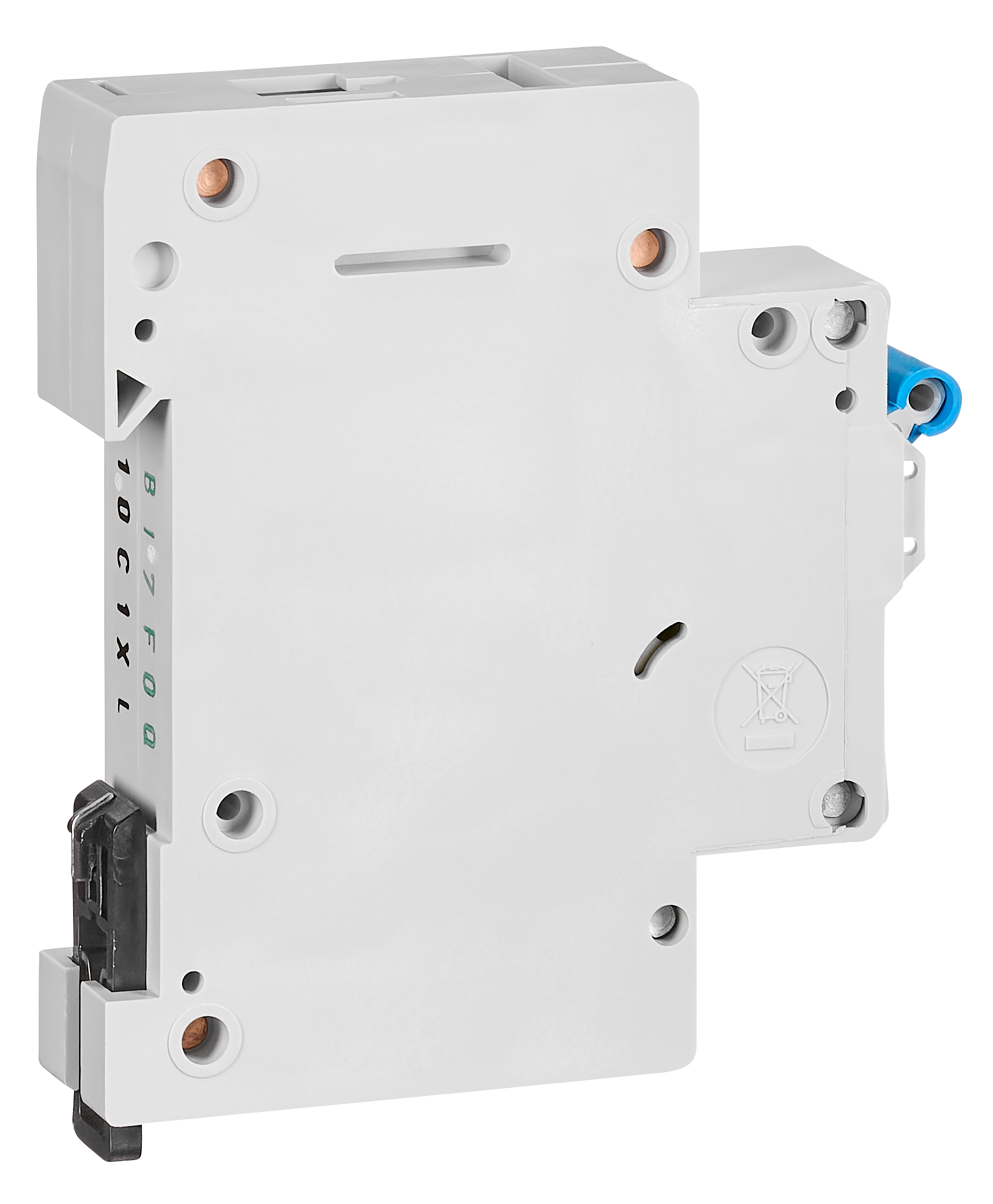

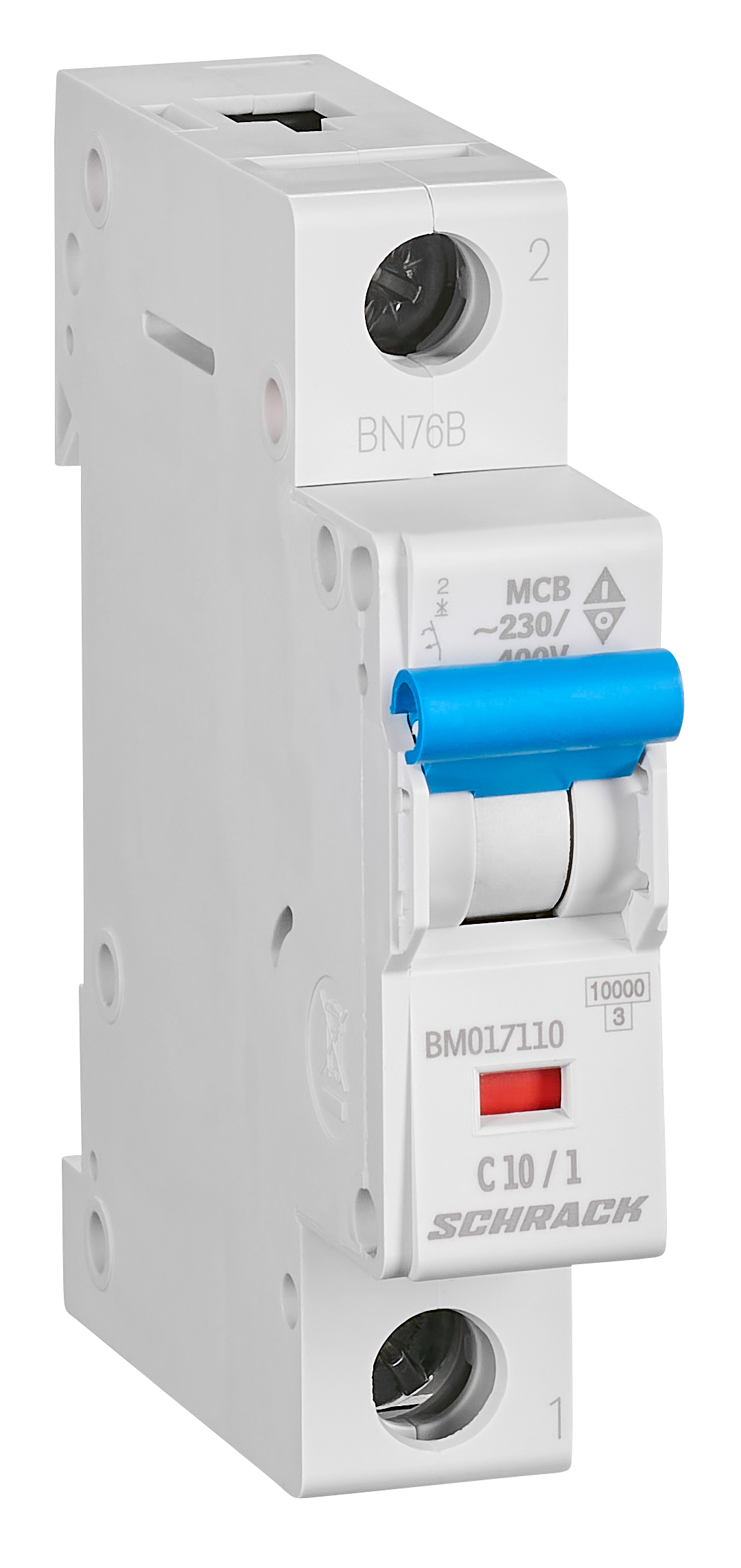

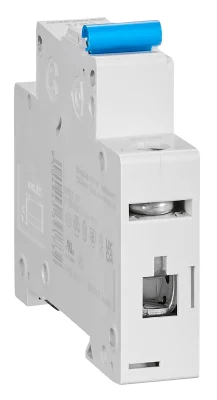

Automatic Circuit Breaker BM C10/1, 10kA
1 / 6
Automatic Circuit Breaker BM C10/1, 10kAAutomatic Circuit Breaker BM C10/1, 10kAAutomatic Circuit Breaker BM C10/1, 10kAAutomatic Circuit Breaker BM C10/1, 10kAAutomatic Circuit Breaker BM C10/1, 10kAAutomatic Circuit Breaker BM C10/1, 10kA

Automatic Circuit Breaker BM C10/1, 10kA

Article: BM017110--

Автоматические выключатели BM

5 045 ₸

To order
WhatsAppTelegram

Single-pole automatic circuit breaker of the BMS0 series manufactured by Schrack with nominal current 10A and switching capacity 10kA. Designed to protect electrical circuits from overloads and short-circuit currents.

Main Parameters:

  • Trip Characteristic: C (for circuits with moderate inrush currents)
  • Rated Voltage: AC (alternating current)
  • Type: BMS0 (modular automatic circuit breaker)
  • Operating Temperature Range: from -40°C to +75°C
  • Power Loss: 1.50W
  • Module Width: 17.80mm (single-conductor mounting on DIN rail)
  • Dimensions: 83.00mm (height) × 74.90mm (depth)
  • Weight: 0.12kg

Compliance Standards:

The device is certified in accordance with EN 60898-1:2019 (household automatic circuit breakers), EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020 (industrial load switches) and EN 63000:2018 (hazardous substances in electrical products).

Package and Delivery:

Available in packages: 1 pc., 12 pc., 120 pc.

EAN Code: 9004840391732

EAN Code9004840391732
Width (net)17.80mm
Height (net)83.00mm
Depth (net)74.90mm
Weight (net)0.12kg
Power Loss1.50W
Min. Ambient Temperature-40°C
Max. Ambient Temperature75°C
CharacteristicC
Poles1
Nominal Current10A
TypeBMS0
SeriesBMS0
Switching Capacity10kA
VersionAC-MCB
StandardEN 60898-1:2019, EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018
ManufacturerSchrack
Packaging1 pc., 12 pc., 120 pc.
