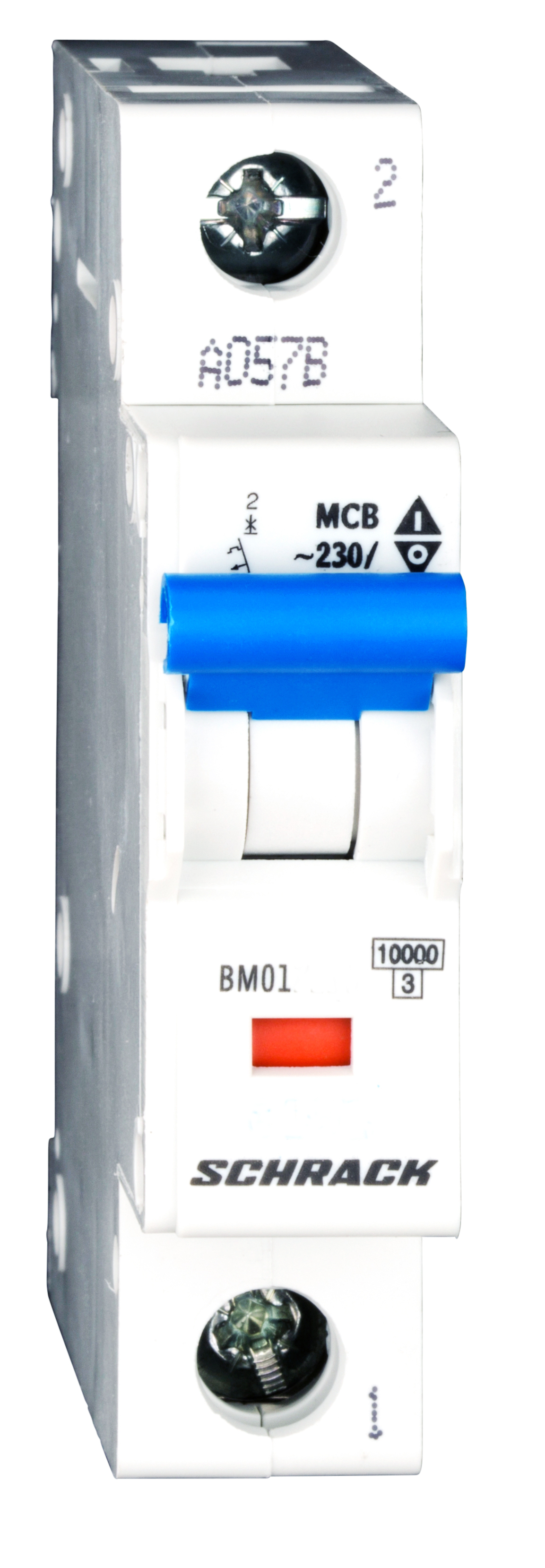

Automatic Circuit Breaker BM ME C10/1, 10kA
Article: BM017110ME
3 514 ₸
To order
Single-pole automatic circuit breaker of the BMS0 series manufactured by Schrack, designed for protection of electrical circuits against overloads and short circuits in residential, commercial, and industrial AC networks.
Main Characteristics:
- Rated Current: 10 A
- Breaking Capacity: 10 kA
- Trip Characteristic: C (time-current characteristic for standard loads)
- Number of Poles: 1
- Type of Execution: AC-MCB-ME (single-pole modular AC circuit breaker)
- Housing Width: 17.80 mm (one module)
- Height: 83.00 mm
- Depth: 74.90 mm
- Mass: 0.12 kg
Operating Conditions:
- Ambient Temperature Range: -40°C to +75°C
- Power Dissipation: 1.50 W (at rated current)
Regulatory Requirements:
The circuit breaker complies with standards EN 60898-1:2019, EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018.
Packaging Options: 1 pc., 12 pc., 120 pc.
EAN Code: 9004840527100
| EAN Code | 9004840527100 |
|---|---|
| Width (net) | 17.80 mm |
| Height (net) | 83.00 mm |
| Depth (net) | 74.90 mm |
| Weight (net) | 0.12 kg |
| Power Dissipation | 1.50 W |
| Min. Ambient Temperature | -40°C |
| Max. Ambient Temperature | 75°C |
| Characteristic | C |
| Number of Poles | 1 |
| Rated Current | 10 A |
| Type | BMS0-ME |
| Series | BMS0 |
| Breaking Capacity | 10 kA |
| Execution | AC-MCB-ME |
| Standard | EN 60898-1:2019, EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018 |
| Manufacturer | Schrack |
| Packaging | 1 pc., 12 pc., 120 pc. |
