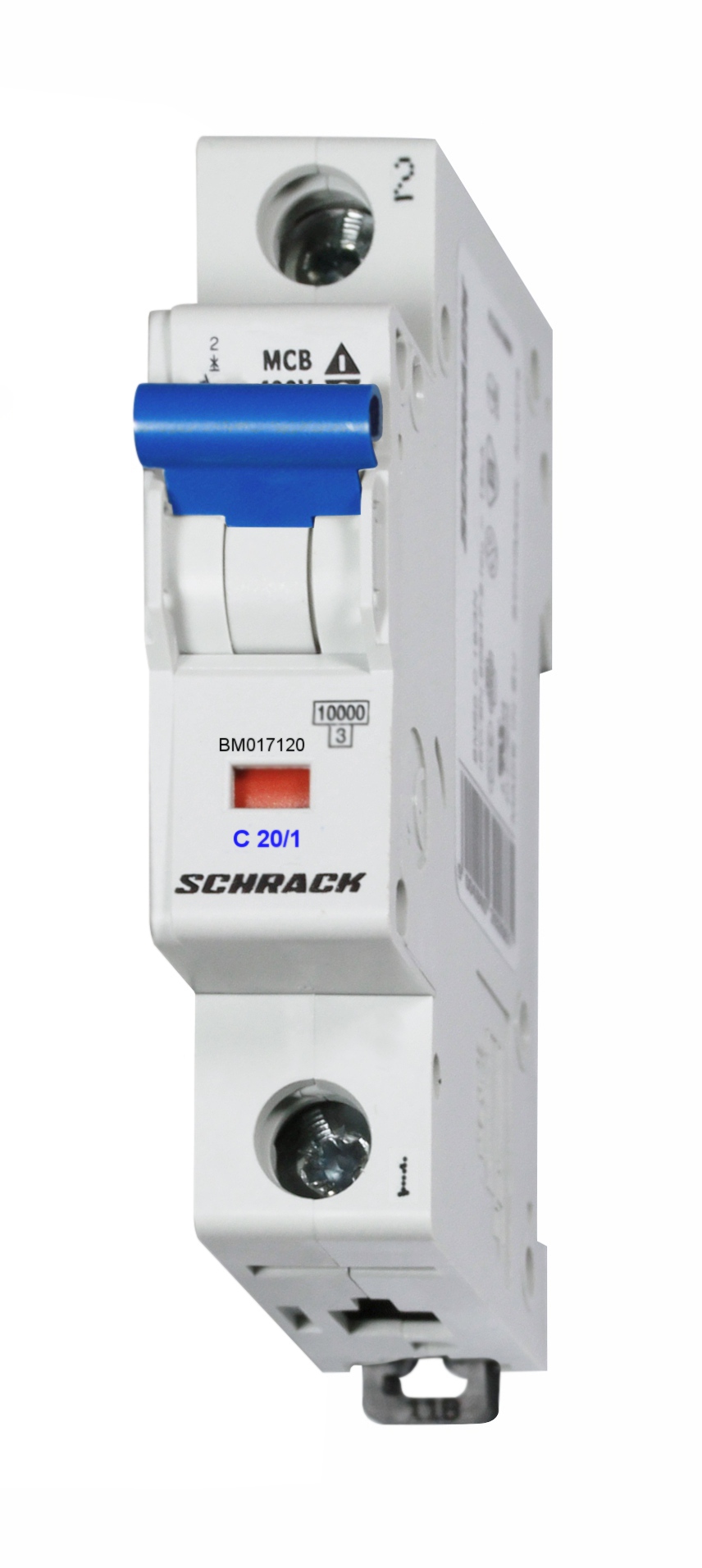

BM C20/1 10kA Automatic Circuit Breaker

Single-pole automatic circuit breaker of the BMS0 series for alternating current (AC-MCB) with nominal current 20A and breaking capacity 10kA. Characteristic C provides protection of circuits with moderate inrush current.

Technical Parameters:

• Nominal current: 20A
• Breaking capacity: 10kA
• Trip characteristic: C
• Construction type: BMS0 (modular)
• Execution: AC-MCB (single-pole modular AC circuit breaker)
• Operating temperature range: from -40°C to +75°C
• Power loss at nominal current: 3.20W

Module Dimensions:

• Width: 17.80mm
• Height: 83.00mm
• Depth: 74.90mm
• Weight: 0.12kg

Normative Basis: Complies with EN 60898-1:2019, EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018.

Manufacturer: Schrack

The automatic circuit breaker is designed for installation on DIN-rails in distribution cabinets and control panels. It is used to protect electrical circuits from overloads and short-circuit currents in industrial and residential AC networks.
