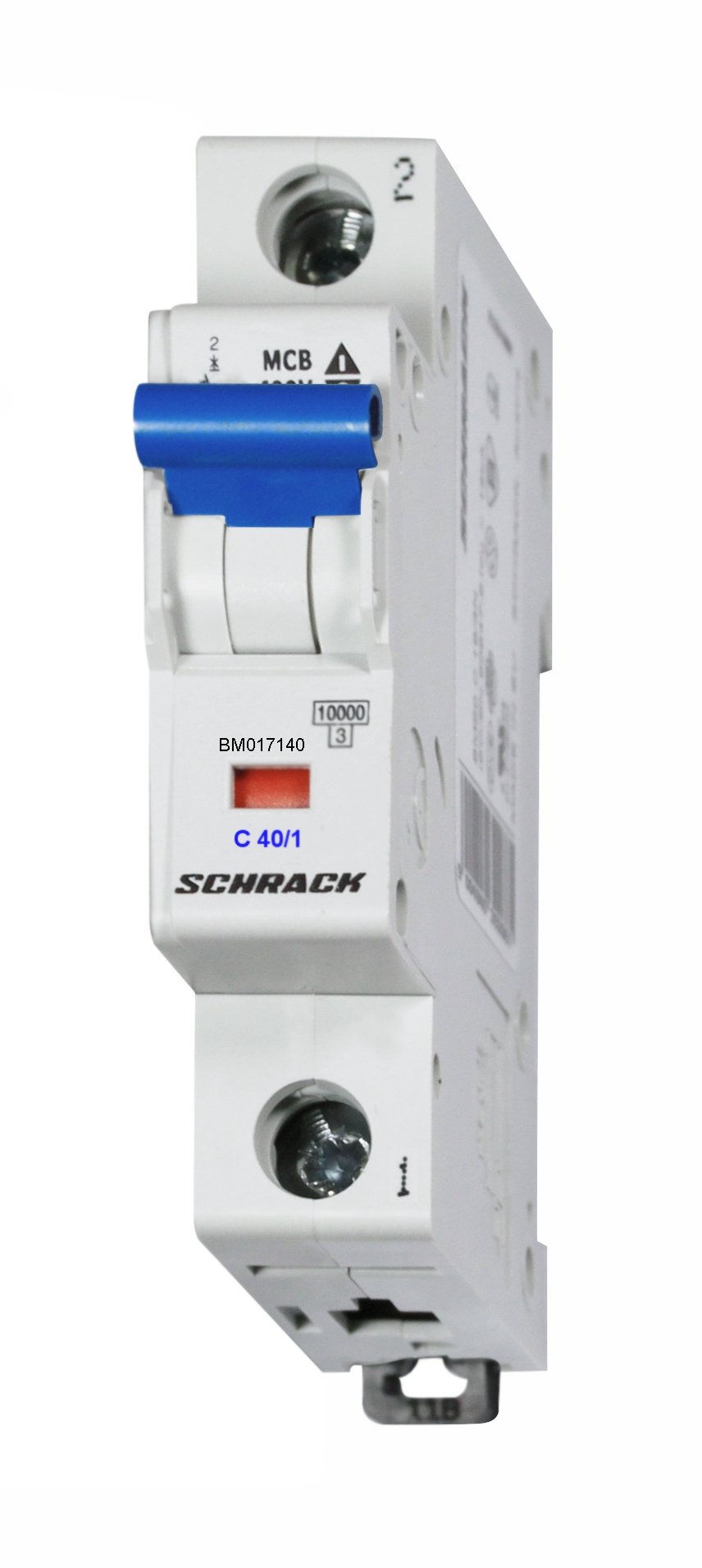

Automatic Circuit Breaker BM C40/1 10кА

Automatic Circuit Breaker BM C40/1 10кА

Article: BM017140--

Автоматические выключатели BM

15 710 ₸

To order
WhatsAppTelegram

Single-pole automatic circuit breaker of BMS0 series with nominal current 40A and switching capacity 10кА. Designed to protect AC electrical circuits from overloads and short circuits.

Main characteristics:

  • Nominal current: 40A
  • Polarity: 1P (single-pole)
  • Trip characteristic: C
  • Switching capacity: 10кА
  • Design: AC-MCB (automatic circuit breaker for alternating current)
  • Power loss: 3,40W
  • Operating temperature: from -40°C to +75°C

Physical dimensions:

  • Width: 17,80mm
  • Height: 83,00mm
  • Depth: 74,90mm
  • Weight: 0,12kg

Certification and standards:

The circuit breaker complies with international standards EN 60898-1:2019, EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018.

Manufacturer: Schrack

EAN code: 9004840391794

Packaging options: 1 pcs., 12 pcs., 120 pcs.

EAN code9004840391794
Width net17,80mm
Height net83,00mm
Depth net74,90mm
Weight net0,12kg
Power loss3,40W
Min. ambient temperature-40°C
Max. ambient temperature75°C
CharacteristicC
Pole1
Nominal current40A
TypeBMS0
SeriesBMS0
Switching capacity10kA
DesignAC-MCB
StandardEN 60898-1:2019, EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018
ManufacturerSchrack
Packaging1 pcs., 12 pcs., 120 pcs.

Optional accessories (5)
