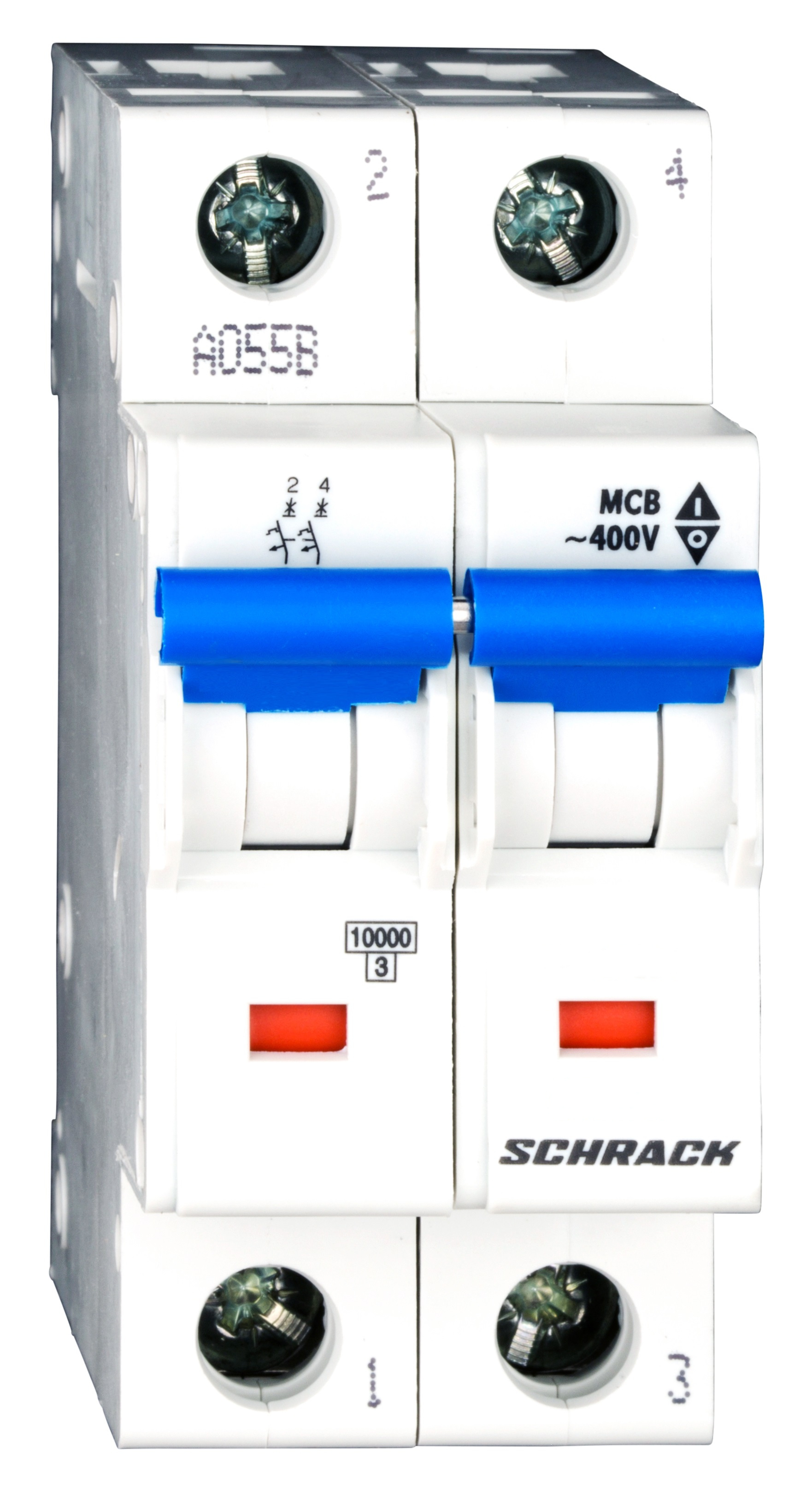

Automatic Circuit Breaker BM ME C4/2 10кА
Article: BM017204ME
15 800 ₸
In stock
Two-pole automatic circuit breaker of the BMS0 series with C tripping characteristic and breaking capacity of 10 kA. Designed to protect electrical circuits from overloads and short-circuit currents.
Technical Specifications:
- Rated Current: 4 A
- Number of Poles: 2
- Tripping Characteristic: C (5-10 In for tripping)
- Breaking Capacity: 10 kA
- Power Dissipation: 2.90 W
- Ambient Temperature Range: -40°C to +75°C
- Dimensions (W×H×D): 35.60 × 83.00 × 74.90 mm
- Net Weight: 0.24 kg
Standards and Regulations:
The circuit breaker complies with the requirements of the following standards: EN 60898-1:2019, EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018.
Manufacturer: Schrack
Packaging: Available in packs of 6 units and 60 units.
| EAN Code | 9004840591262 |
|---|---|
| Width (net) | 35.60 mm |
| Height (net) | 83.00 mm |
| Depth (net) | 74.90 mm |
| Weight (net) | 0.24 kg |
| Power Dissipation | 2.90 W |
| Min. Ambient Temperature | -40°C |
| Max. Ambient Temperature | 75°C |
| Characteristic | C |
| Poles | 2 |
| Rated Current | 4 A |
| Type | BMS0-ME |
| Series | BMS0 |
| Breaking Capacity | 10 kA |
| Design | AC-MCB-ME |
| Standard | EN 60898-1:2019, EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018 |
| Manufacturer | Schrack |
| Packaging | 6 pcs, 60 pcs |
