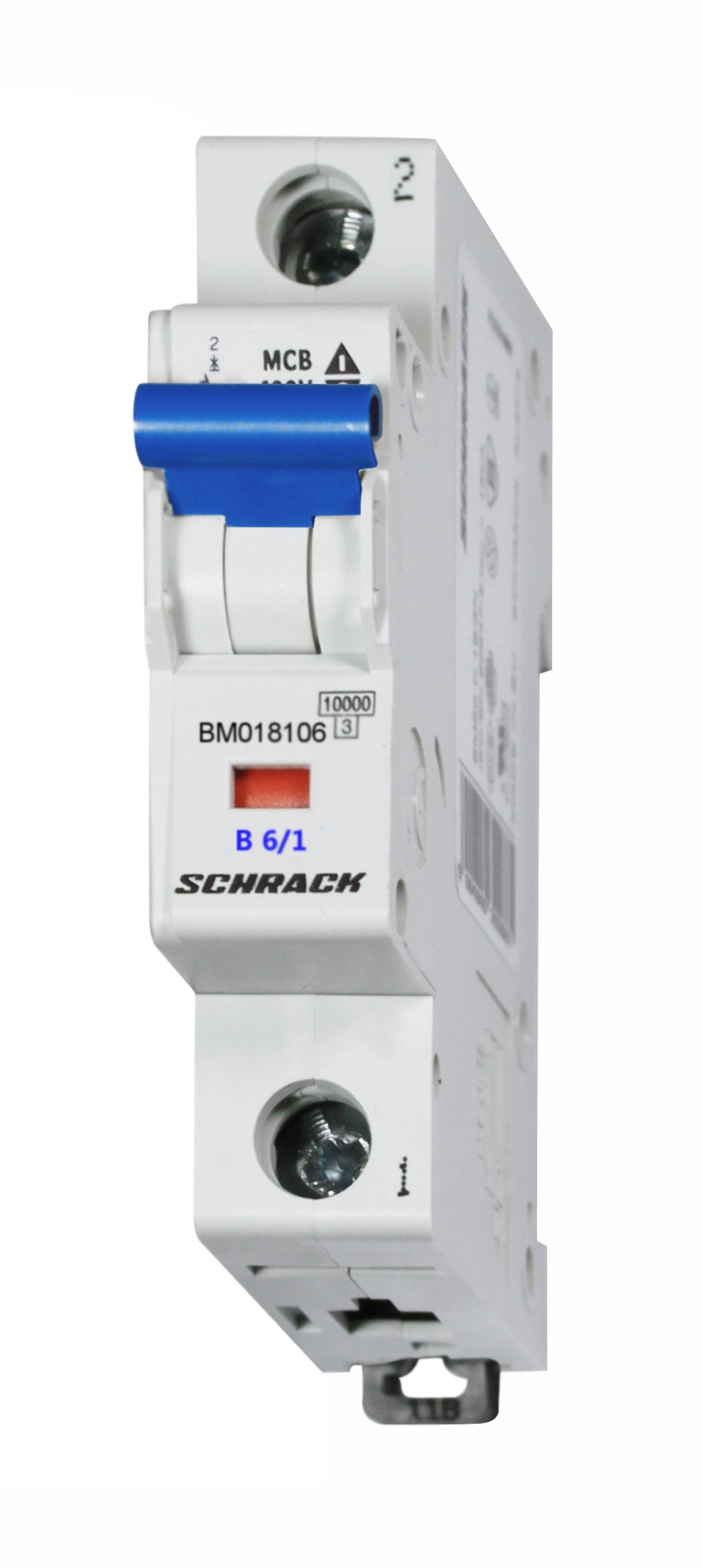

Automatic Circuit Breaker BM B6/1, 10kA
Article: BM018106--
6 145 ₸
In stock
Automatic Circuit Breaker BM B6/1 — single-pole modular protective device for alternating current, designed to protect electrical circuits from overcurrent and short-circuit conditions.
Main Parameters:
- Rated Current: 6A
- Breaking Capacity: 10kA
- Trip Characteristic: B (tripping at 3-5 times the rated current)
- Type: AC-MCB (Alternating Current Miniature Circuit Breaker)
- Design: single-pole, modular (DIN rail pitch 17.8 mm)
Climate Parameters:
- Operating temperature range: -40°C to +75°C
- Power loss at rated current: 1.80W
Technical Specifications:
- Manufacturer: Schrack
- Standards Compliance: EN 60898-1:2019, EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018
- Dimensions: width 17.80 mm, height 83.00 mm, depth 74.90 mm
- Weight: 0.12 kg
- EAN Code: 9004840392753
Packaging Options: 1 pcs., 12 pcs., 120 pcs.
| EAN Code | 9004840392753 |
|---|---|
| Width Net | 17.80 mm |
| Height Net | 83.00 mm |
| Depth Net | 74.90 mm |
| Weight Net | 0.12 kg |
| Power Loss | 1.80 W |
| Min. Ambient Temperature | -40°C |
| Max. Ambient Temperature | 75°C |
| Characteristic | B |
| Poles | 1 |
| Rated Current | 6A |
| Type | BMS0 |
| Series | BMS0 |
| Breaking Capacity | 10kA |
| Execution | AC-MCB |
| Standard | EN 60898-1:2019, EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018 |
| Manufacturer | Schrack |
| Packaging | 1 pcs., 12 pcs., 120 pcs. |
