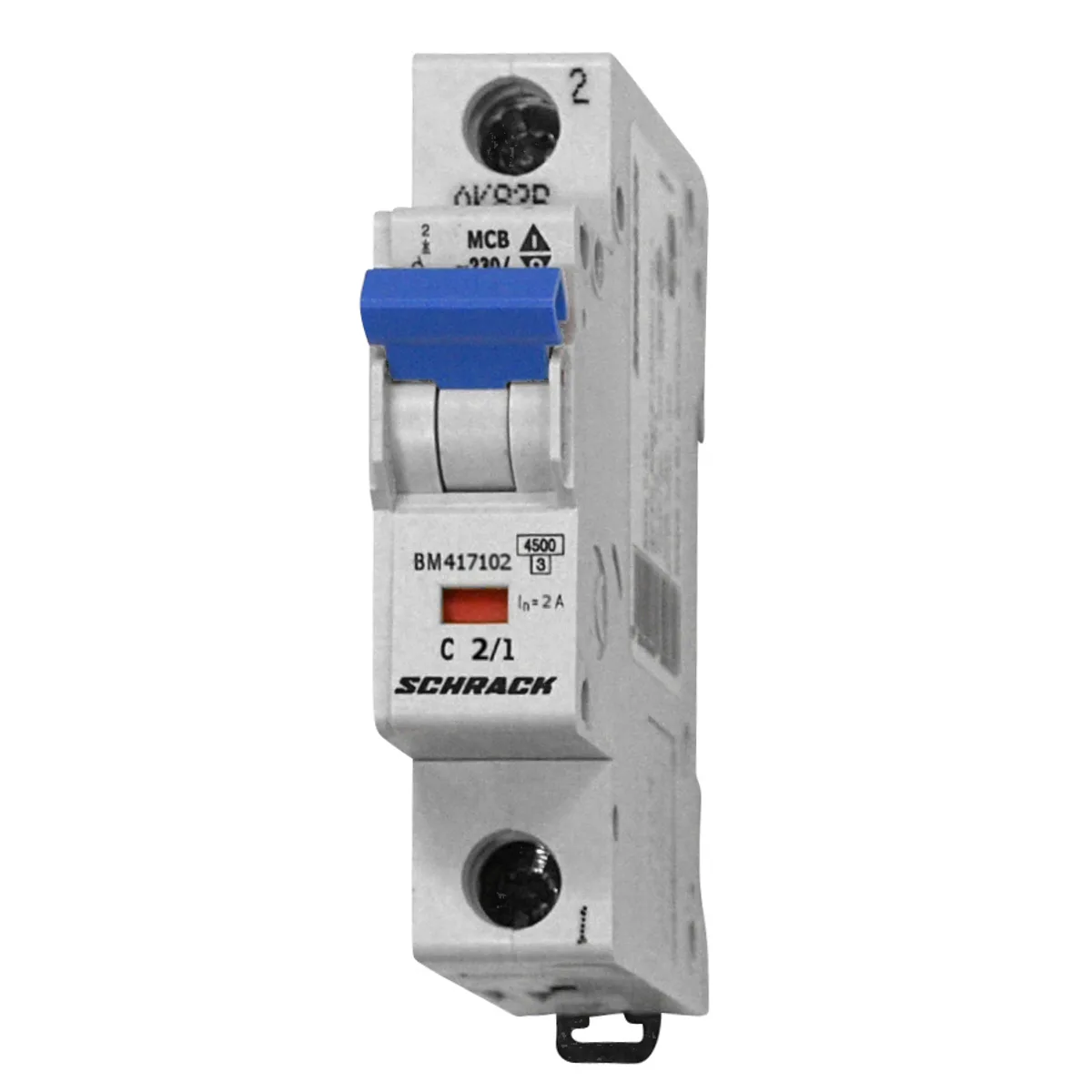

Automatic Circuit Breaker BM C2/1, 4.5kA
Article: BM417102--
5 710 ₸
In stock
A single-pole automatic circuit breaker of the BMS4 series designed to protect AC electrical circuits from overloads and short circuits. The device is characterized by a rated current of 2A and switching capacity of 4.5kA, providing reliable protection in residential and commercial installations.
Technical Parameters:
- Tripping Characteristic: C (standard for electrical installation work)
- Type: BMS4 (AC-MCB — modular circuit breaker for alternating current)
- Configuration: single-pole (1P)
- Dimensions: width 17.80 mm, height 85.00 mm, depth 75.00 mm
- Net Weight: 0.11 kg
- Power Loss: 1.40 W
- Operating Temperature Range: from -40°C to +75°C
- EAN Code: 9004840456295
Compliance Standards: The device is certified in accordance with EN 60898-1:2019, EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018.
Manufacturer: Schrack
Packaging Options: individual units, package of 12 pcs., package of 120 pcs.
| EAN Code | 9004840456295 |
|---|---|
| Net Width | 17.80 mm |
| Net Height | 85.00 mm |
| Net Depth | 75.00 mm |
| Net Weight | 0.11 kg |
| Power Loss | 1.40 W |
| Min. Ambient Temperature | -40°C |
| Max. Ambient Temperature | 75°C |
| Characteristic | C |
| Poles | 1 |
| Rated Current | 2A |
| Type | BMS4 |
| Series | BMS4 |
| Switching Capacity | 4.5kA |
| Design | AC-MCB |
| Standard | EN 60898-1:2019, EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018 |
| Manufacturer | Schrack |
| Packaging | 1 pc., 12 pcs., 120 pcs. |
