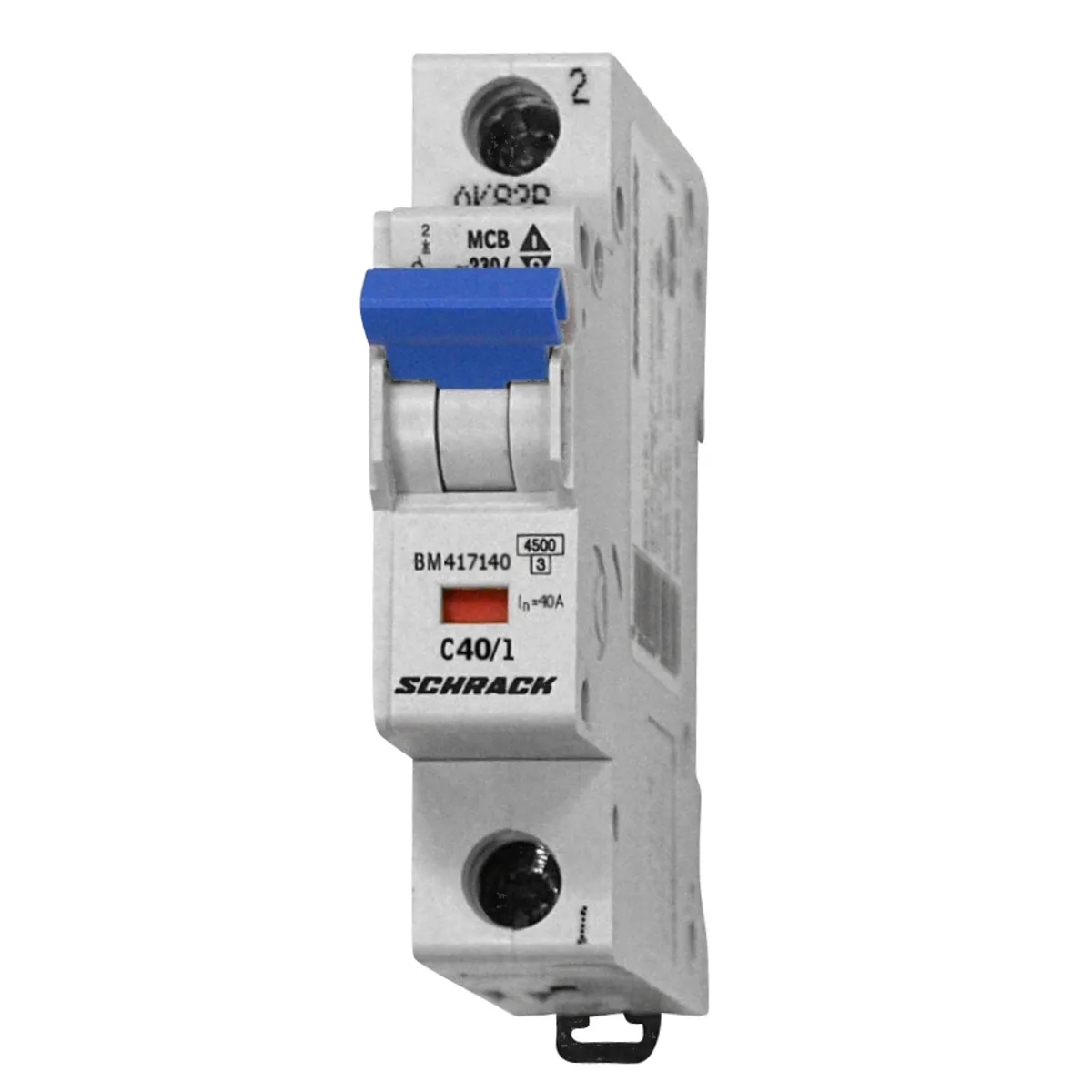

Automatic Circuit Breaker BM C40/1, 4.5kA

Automatic Circuit Breaker BM C40/1 — single-pole modular protective device for alternating current, designed to protect electrical circuits from overloads and short circuits.

Main Characteristics:

• Rated Current: 40A
• Trip Characteristic: C (activation at current 5-10In)
• Breaking Capacity: 4.5kA
• Design: single-pole modular circuit breaker (width 1 module)
• Execution: AC-MCB (alternating current)
• Power Loss: 3.40W at rated current

Operating Conditions:

• Operating Temperature Range: from -40°C to +75°C
• Dimensions: length 74.90 mm, width 17.70 mm, height 80.00 mm
• Weight: 0.12 kg

Standards Compliance:

The circuit breaker is manufactured in accordance with international standards: EN 60898-1:2019 (household and similar circuit breakers), EN 60947-2:2006/2009/2013, EN 60947-2:2017/2020 (low-voltage switchgear), EN 63000:2018 (materials and their treatment).

Manufacturer: Schrack

EAN Code: 9004840390438

Packaging Options: individual units, packages of 12 and 120 pieces.
