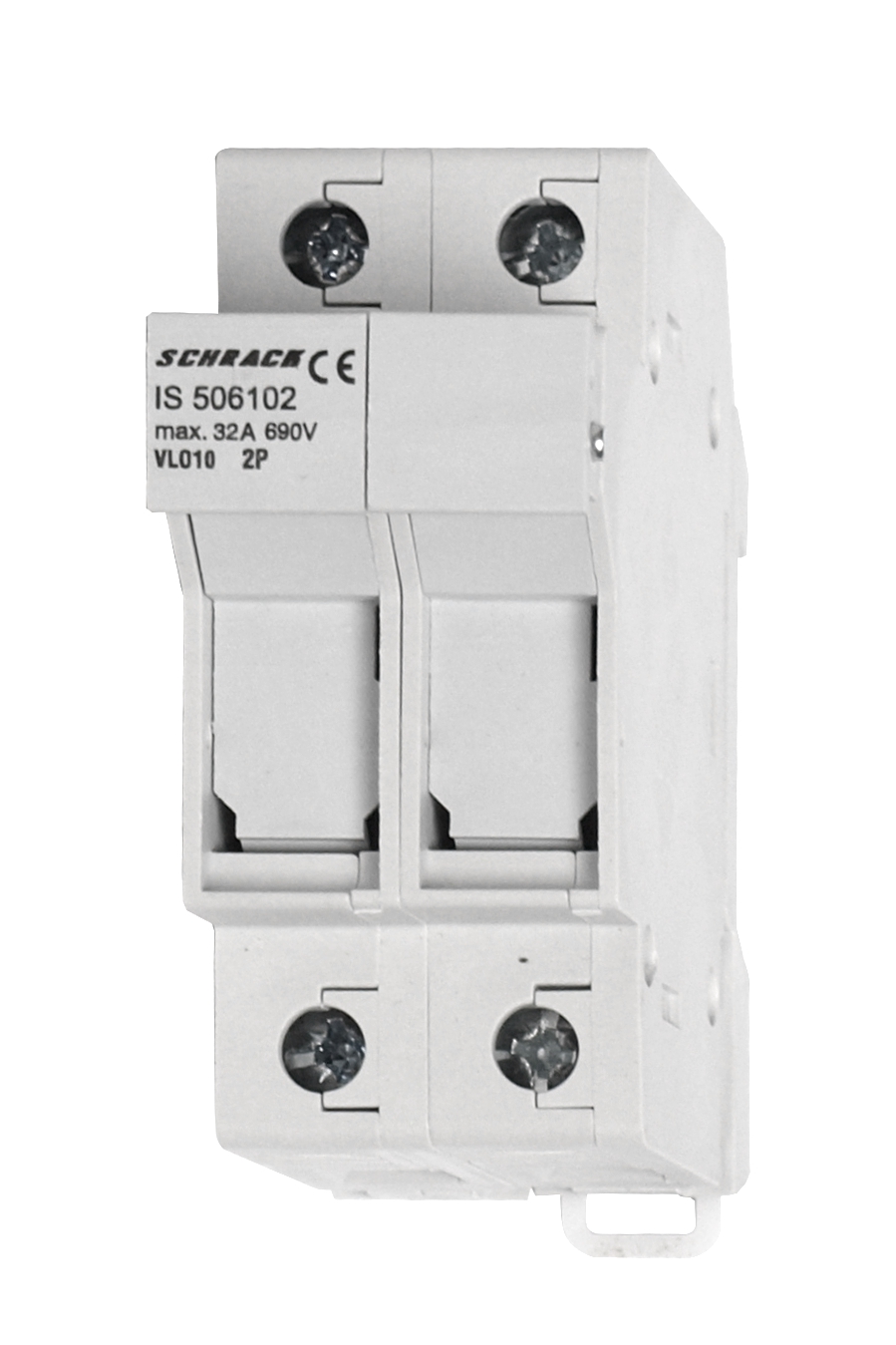

Two-pole fuse holder from the ARROW series designed for installation of 10x38 mm fuses with rated current 32A. Intended for use in AC circuits with frequency 46-62 Hz at rated insulation voltage 690V.
Main Characteristics:
- Design: Isolating switch with fuses
- Number of poles: 2
- Rated current: 32A
- Fuse size: 10x38 mm
- Fuse characteristic: gG (general purpose)
- Rated insulation voltage: 690V
- Short-circuit breaking capacity: 100kA/400V
- Power loss: 0,54W
- Operating temperature range: from -25°C to +60°C
- Manufacturer: Schrack
Physical Dimensions:
- Width: 35 mm
- Height: 81 mm
- Depth: 65 mm
- Net weight: 0.28 kg
Identification Data:
- EAN code: 9004840162233
- Packaging: available in 1 pcs. and 6 pcs. variants
| EAN code | 9004840162233 |
|---|---|
| Net width | 35.00 mm |
| Net height | 81.00 mm |
| Net depth | 65.00 mm |
| Net weight | 0.28 kg |
| Power loss | 0.54 W |
| Minimum ambient temperature | -25°C |
| Maximum ambient temperature | 60°C |
| Design | Isolating switch with fuses |
| Poles | 2 |
| Fuse size | 10x38 |
| Current rating | 32A |
| Characteristic | gG |
| Series | ARROW |
| Size | 10x38 |
| Rated current | 32A |
| Frequency | 46 - 62 Hz |
| Short-circuit current value | 100kA/400V |
| Rated insulation voltage [Ui] | 690V |
| Manufacturer | Schrack |
| Packaging | 1 pcs., 6 pcs. |
