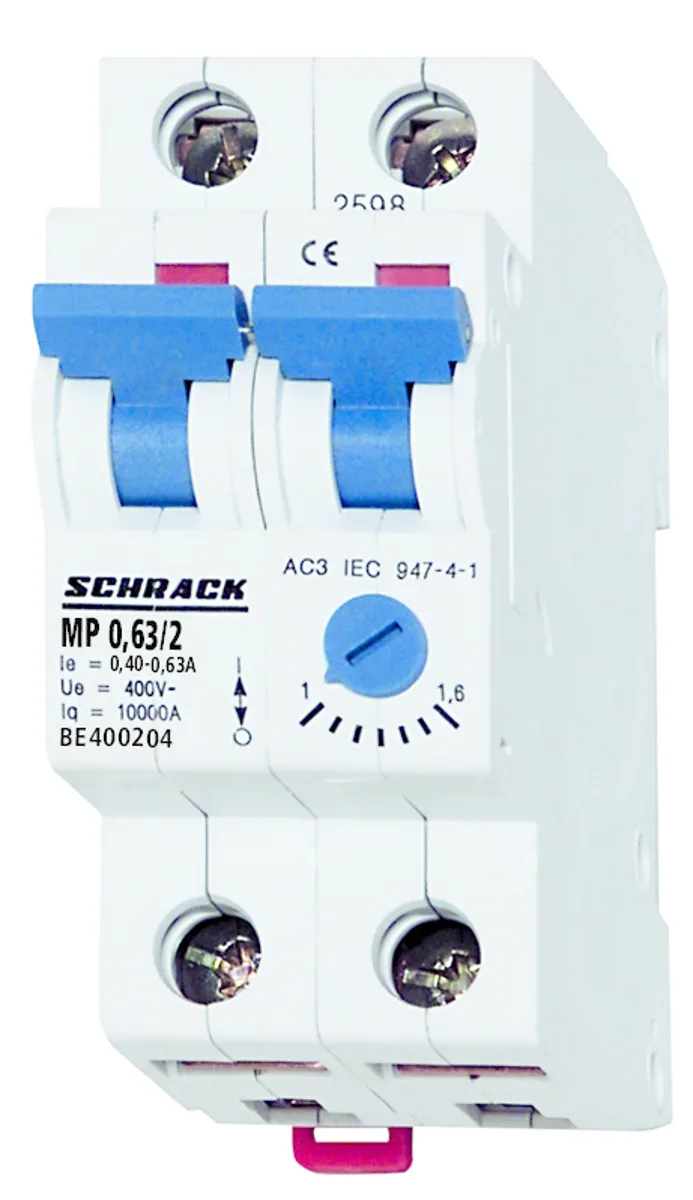

Motor Protection Automatic Switch 0.40-0.63A/2 BE4
Article: BE400204--
18 840 ₸
In stock
Motor protection automatic switch designed for protecting electric motors from overload and short circuits. The device provides reliable circuit disconnection when emergency operating conditions arise.
Key Parameters:
- Rated Current: 0.40-0.63 A
- Design Type: 2
- Power Loss: 3.50 W
- Operating Temperature Range: -40°C to +70°C
- Standard Compliance: EN 60947-2:2006 + A1:2009 + A2:2013
Dimensions and Weight:
- Length: 73 mm
- Width: 37 mm
- Height: 82 mm
- Net Weight: 0.23 kg
Manufacturer: Schrack
EAN Code: 9004840266085
Packaging Options: 1 pc., 6 pcs., 60 pcs.
| EAN Code | 9004840266085 |
|---|---|
| Net Length | 73.00 mm |
| Net Width | 37.00 mm |
| Net Height | 82.00 mm |
| Net Weight | 0.23 kg |
| Power Loss | 3.50 W |
| Min. Ambient Temperature | -40°C |
| Max. Ambient Temperature | 70°C |
| Design Type | 2 |
| Current Rating | 0.40-0.63 A |
| Standard | EN 60947-2:2006 + A1:2009 + A2:2013 |
| Manufacturer | Schrack |
| Packaging | 1 pc., 6 pcs., 60 pcs. |
