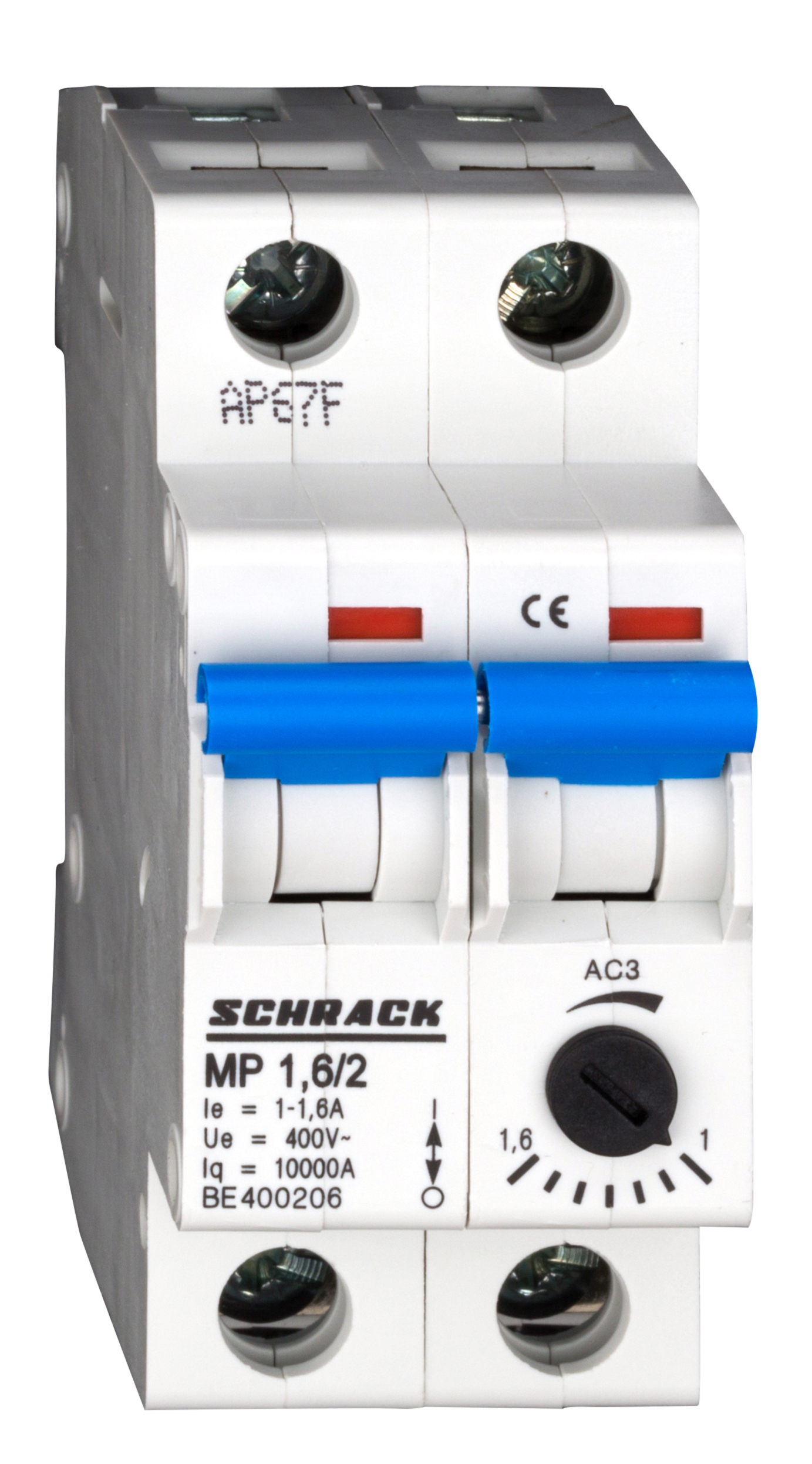

Motor Protection Switch 1.0-1.6A/2 BE4

Motor Protection Switch 1.0-1.6A/2 BE4

Article: BE400206--

Автоматы защиты двигателя

18 840 ₸

To order
WhatsAppTelegram

Motor protection switch (electrothermal release device) designed to protect asynchronous electric motors from overload and disconnection in case of phase failures. Rated actuation range 1.0–1.6A with two-pole design (Execution 2).

Technical Parameters:

  • Current actuation adjustment range: 1–6.3A
  • Power loss at rated current: 3.6W
  • Operating temperature range: −40°C to +70°C
  • Execution: 2-pole
  • Compliance standard: EN 60947-2:2006 + A1:2009 + A2:2013
  • Manufacturer: Schrack

Overall Dimensions (net):

  • Length: 73 mm
  • Width: 37 mm
  • Height: 82 mm
  • Weight: 0.23 kg

Codes and Packaging:

  • EAN code: 9004840266108
  • Available packaging options: 1, 6, 60 pcs.
EAN code9004840266108
Net length73.00 mm
Net width37.00 mm
Net height82.00 mm
Net weight0.23 kg
Power loss3.60 W
Min. ambient temperature−40°C
Max. ambient temperature70°C
Execution2
Current1–6.3 A
StandardEN 60947-2:2006 + A1:2009 + A2:2013
ManufacturerSchrack
Packaging1 pc., 6 pcs., 60 pcs.
