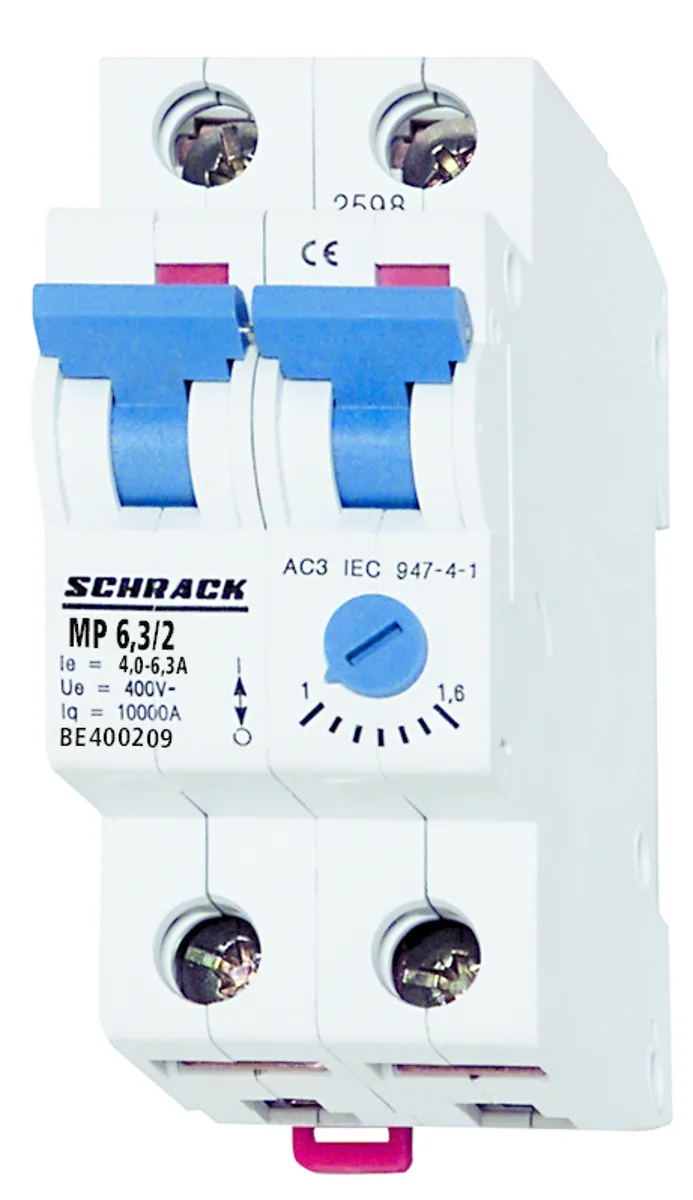

Motor Protection Circuit Breaker 4.0-6.3A/2 BE4
Article: BE400209--
18 840 ₸
In stock
Motor protection circuit breaker designed for safeguarding electric motors against overload and short circuit conditions. The device ensures reliable circuit disconnection when current exceeds the set threshold. Compact construction allows easy integration into distribution panels and control cabinets.
Technical Parameters:
- Current Trip Range: 4.0-6.3A
- Execution: 2-pole
- Rated Voltage: according to EN 60947-2
- Power Loss: 5.10W
- Operating Temperature Range: -40°C to +70°C
- Compliance Standard: EN 60947-2:2006 + A1:2009 + A2:2013
- Manufacturer: Schrack
Dimensions (Net):
- Length: 73.00 mm
- Width: 37.00 mm
- Height: 82.00 mm
- Weight: 0.23 kg
Packaging Options: 1 pcs, 6 pcs, 60 pcs
| EAN Code | 9004840266139 |
|---|---|
| Net Length | 73.00 mm |
| Net Width | 37.00 mm |
| Net Height | 82.00 mm |
| Net Weight | 0.23 kg |
| Power Loss | 5.10 W |
| Min. Ambient Temperature | -40°C |
| Max. Ambient Temperature | 70°C |
| Execution | 2 |
| Current Rating | 1-6.3 A |
| Standard | EN 60947-2:2006 + A1:2009 + A2:2013 |
| Manufacturer | Schrack |
| Packaging | 1 pcs, 6 pcs, 60 pcs |
