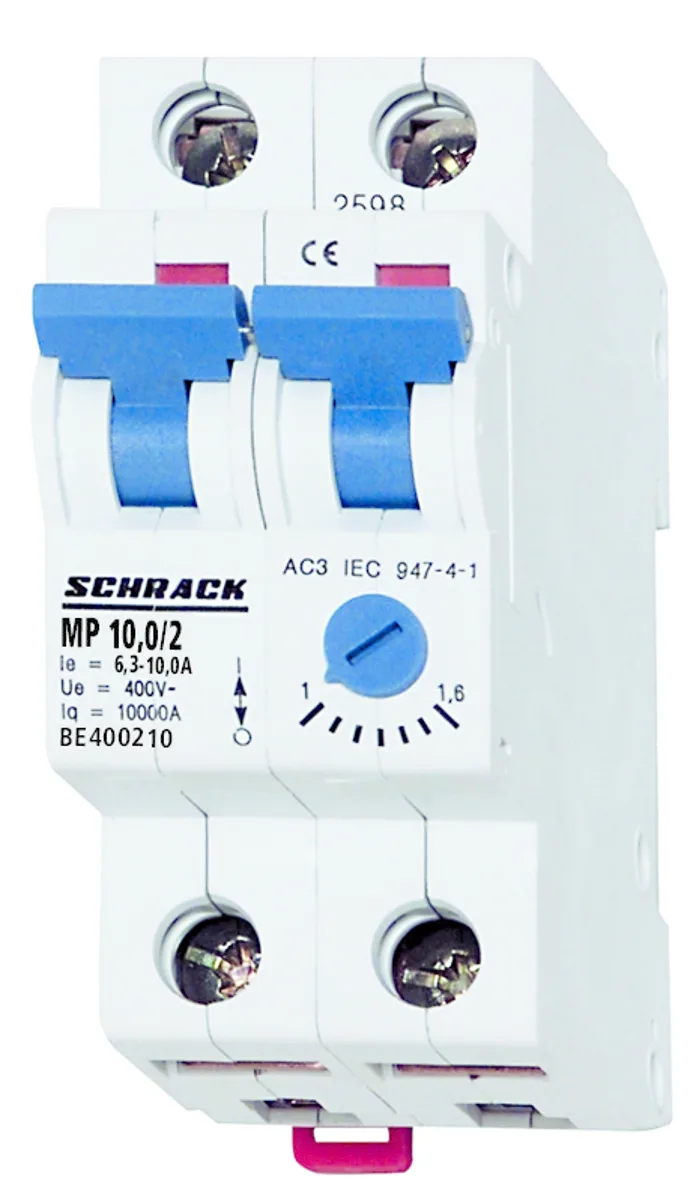

Motor Protection Automatic Switch 6.3-10.0A/2 BE4
Article: BE400210--
18 840 ₸
In stock
Motor protection automatic switch designed to protect asynchronous electric motors from overload and short circuit conditions. The device ensures reliable circuit disconnection when nominal current is exceeded and activates during emergency situations.
Main Parameters:
- Current Setting Range: 6.3-10.0 A (adjustable)
- Design: 2-pole
- Rated Current: 6.3-16 A
- Compliance Standard: EN 60947-2:2006 + A1:2009 + A2:2013
- Power Consumption: 4.70 W
- Operating Temperature Range: -40°C to +70°C
Overall Dimensions and Weight:
- Length: 73.00 mm
- Width: 37.00 mm
- Height: 82.00 mm
- Net Weight: 0.23 kg
Manufacturer: Schrack (Austria)
Supply Options: 1 pc., 6 pcs., 60 pcs.
| EAN Code | 9004840266146 |
|---|---|
| Net Length | 73.00 mm |
| Net Width | 37.00 mm |
| Net Height | 82.00 mm |
| Net Weight | 0.23 kg |
| Power Loss | 4.70 W |
| Min. Ambient Temperature | -40°C |
| Max. Ambient Temperature | 70°C |
| Design | 2 |
| Current Rating | 6.3-16 A |
| Standard | EN 60947-2:2006 + A1:2009 + A2:2013 |
| Manufacturer | Schrack |
| Packaging | 1 pc., 6 pcs., 60 pcs. |
