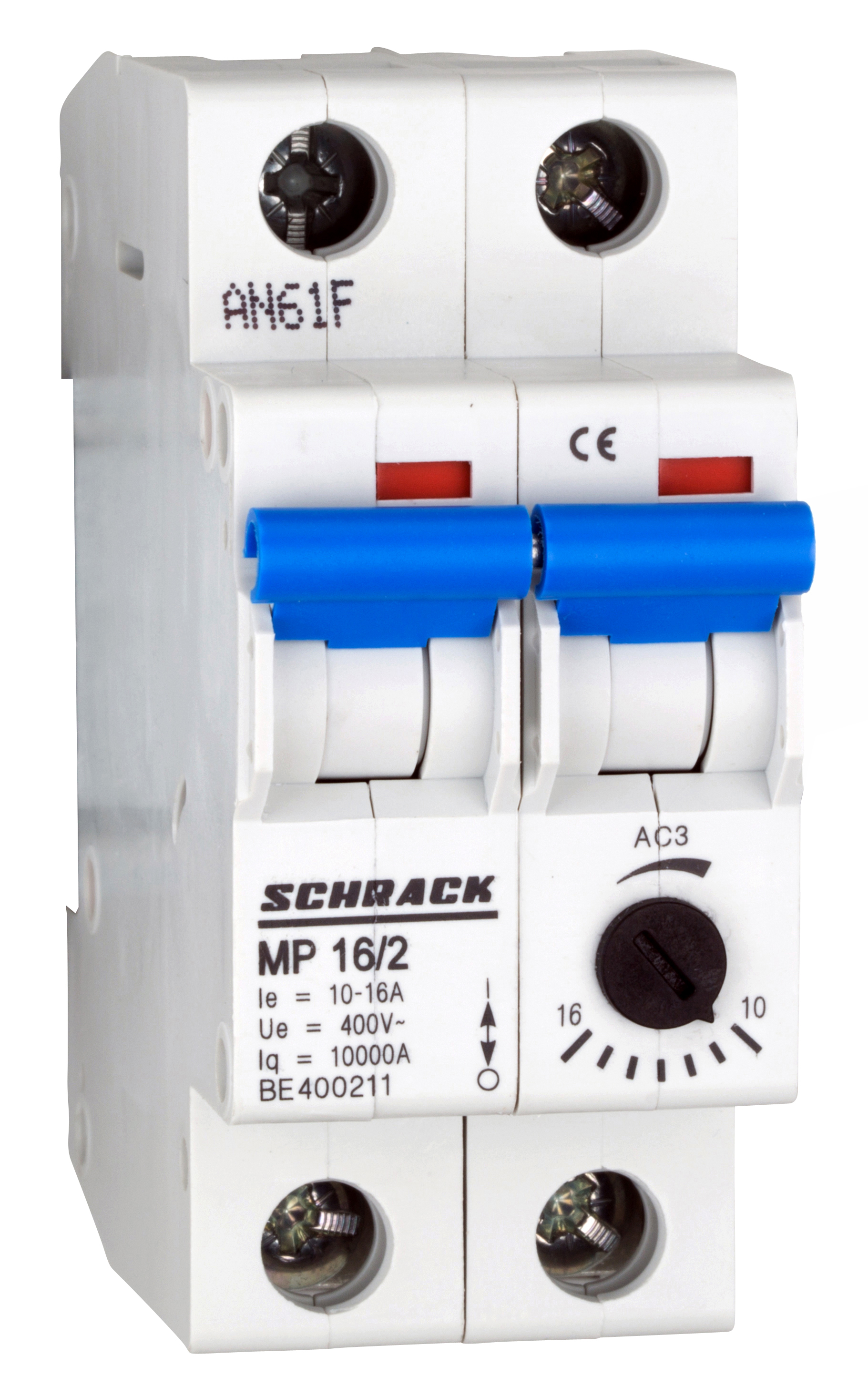

Motor Protection Switch 10.0-16.0A/2 BE4
Article: BE400211--
18 840 ₸
In stock
Motor protection switch designed for switching and protection of electrical circuits with asynchronous motors. The device provides reliable protection against overloads and short circuits in the nominal current range of 6.3-16A.
Key specifications:
- Rated current: 10.0-16.0A (version 2)
- Adjustment range: 6.3-16A
- Power loss: 6.0 W
- Ambient temperature range: -40°C to +70°C
- Standard compliance: EN 60947-2:2006 + A1:2009 + A2:2013
- Manufacturer: Schrack
Dimensional specifications:
- Length: 73 mm
- Width: 37 mm
- Height: 82 mm
- Weight: 0.23 kg
The device is supplied in packages of 1, 6, or 60 units.
| EAN code | 9004840266153 |
|---|---|
| Net length | 73.00 mm |
| Net width | 37.00 mm |
| Net height | 82.00 mm |
| Net weight | 0.23 kg |
| Power loss | 6.00 W |
| Min. ambient temperature | -40°C |
| Max. ambient temperature | 70°C |
| Version | 2 |
| Current rating | 6.3-16 A |
| Standard | EN 60947-2:2006 + A1:2009 + A2:2013 |
| Manufacturer | Schrack |
| Packaging | 1 pc., 6 pcs., 60 pcs. |
