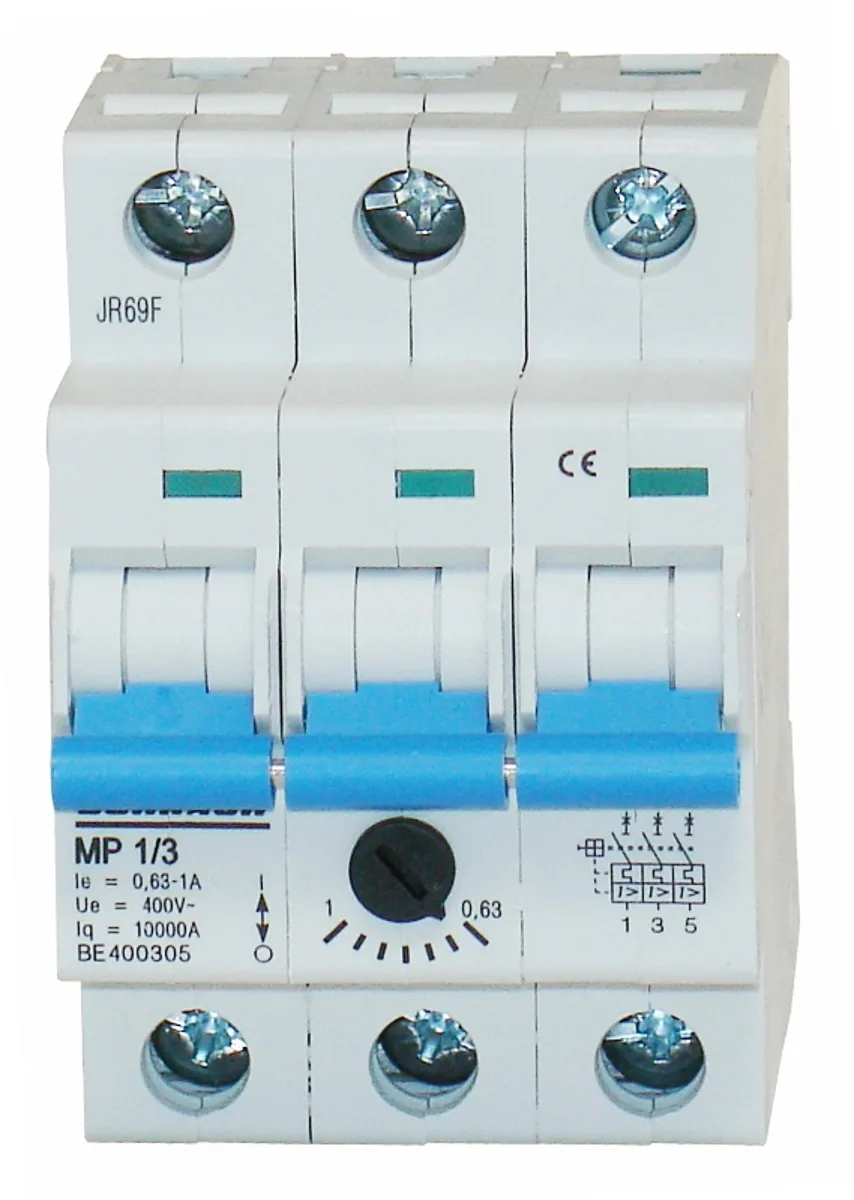

Motor Protection Switch 0.63-1.0A/3 BE4

Motor protection switch designed for protecting electric motors against overloads and short circuits. The device ensures reliable circuit disconnection in case of emergency operating conditions.

Technical specifications:

• Rated current range: 0.63–1.00 A
• Execution: 3 poles
• Compliance standard: EN 60947-2:2006 + A1:2009 + A2:2013
• Manufacturer: Schrack
• Power loss: 6.50 W
• Operating temperature range: –40°C to +70°C
• Dimensions: width 53.40 mm, height 80.00 mm, depth 71.00 mm
• Net weight: 0.34 kg
• EAN code: 9004840266221

Packaging options: 1 pc., 4 pc., 40 pc.
