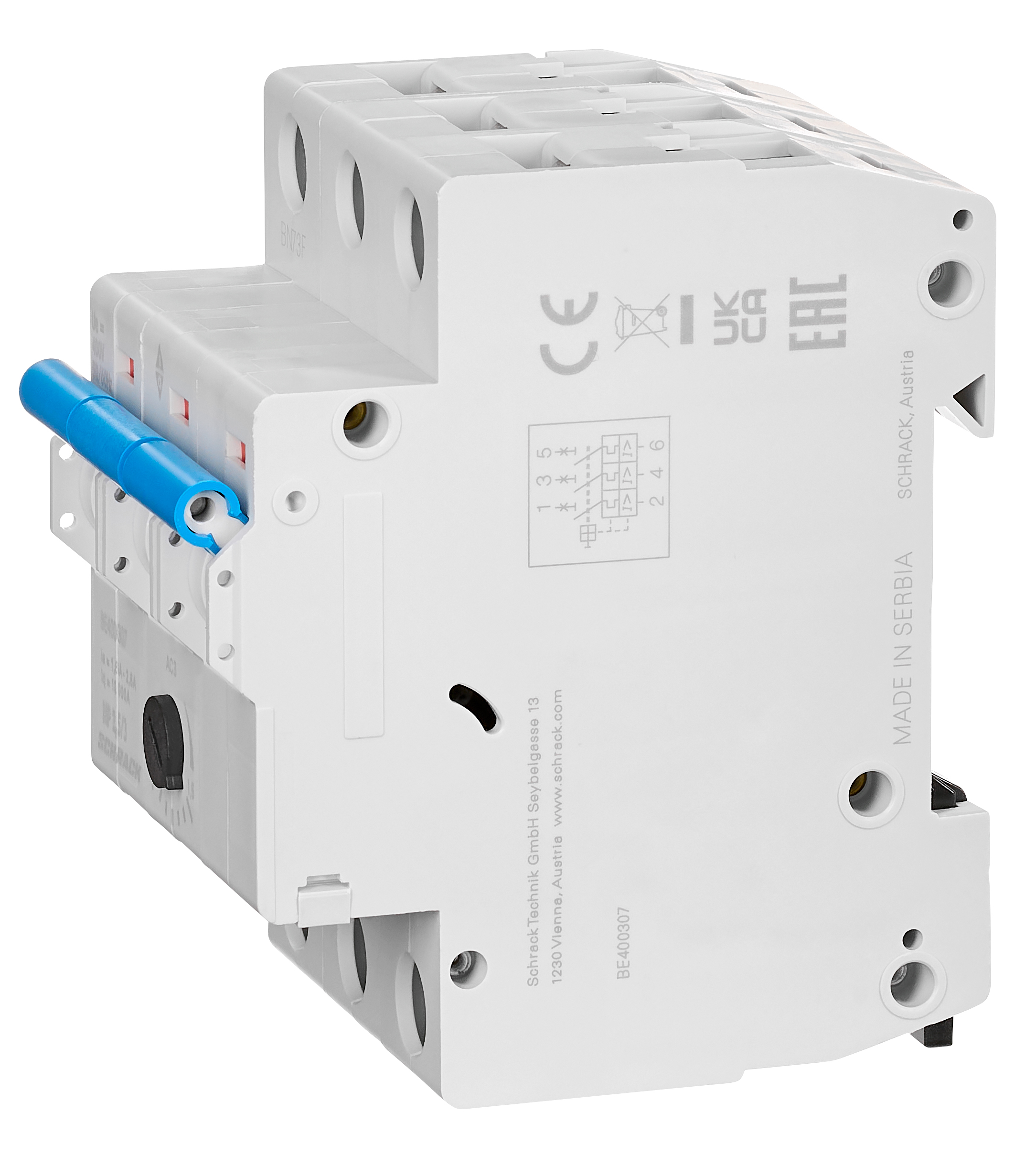

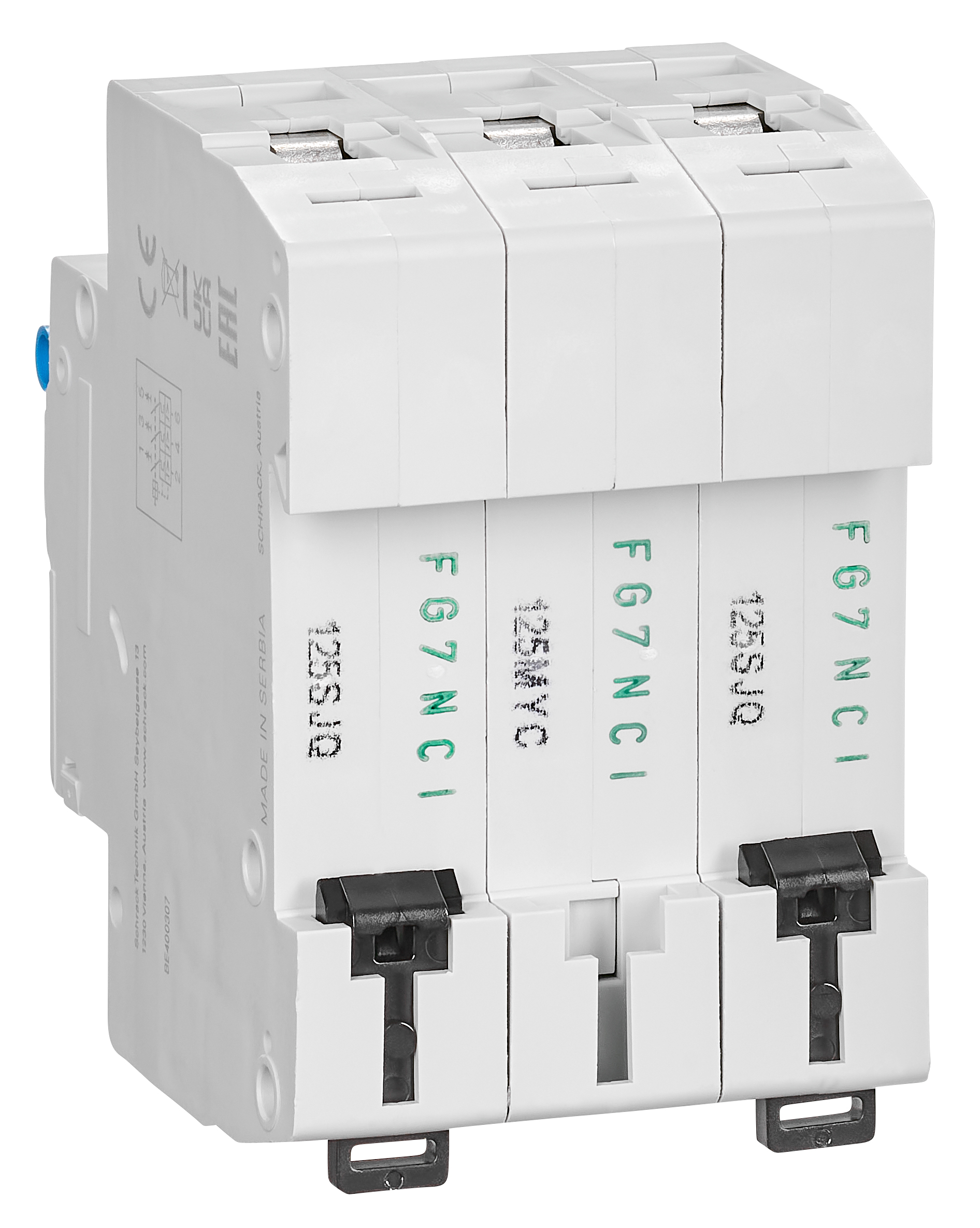

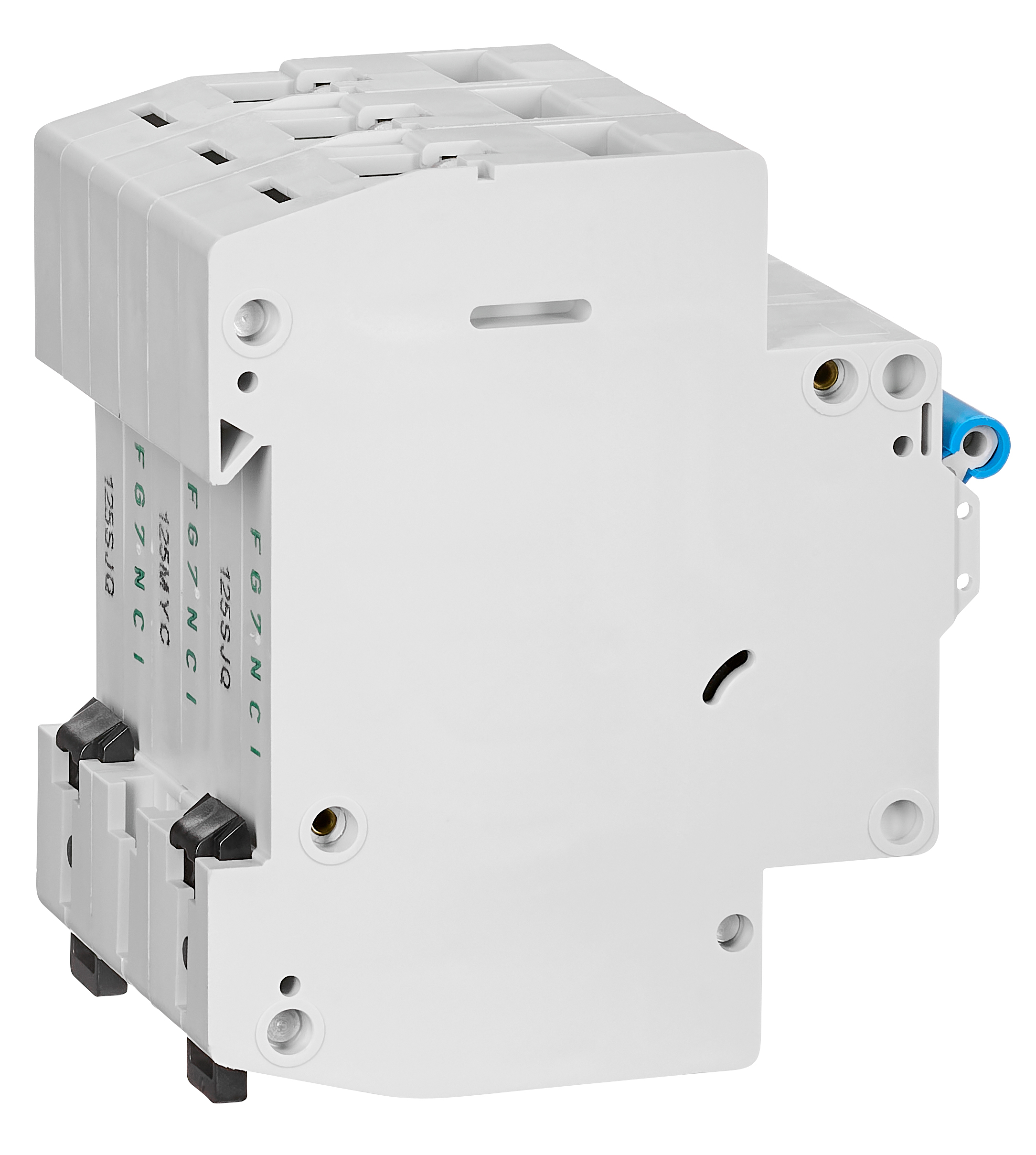

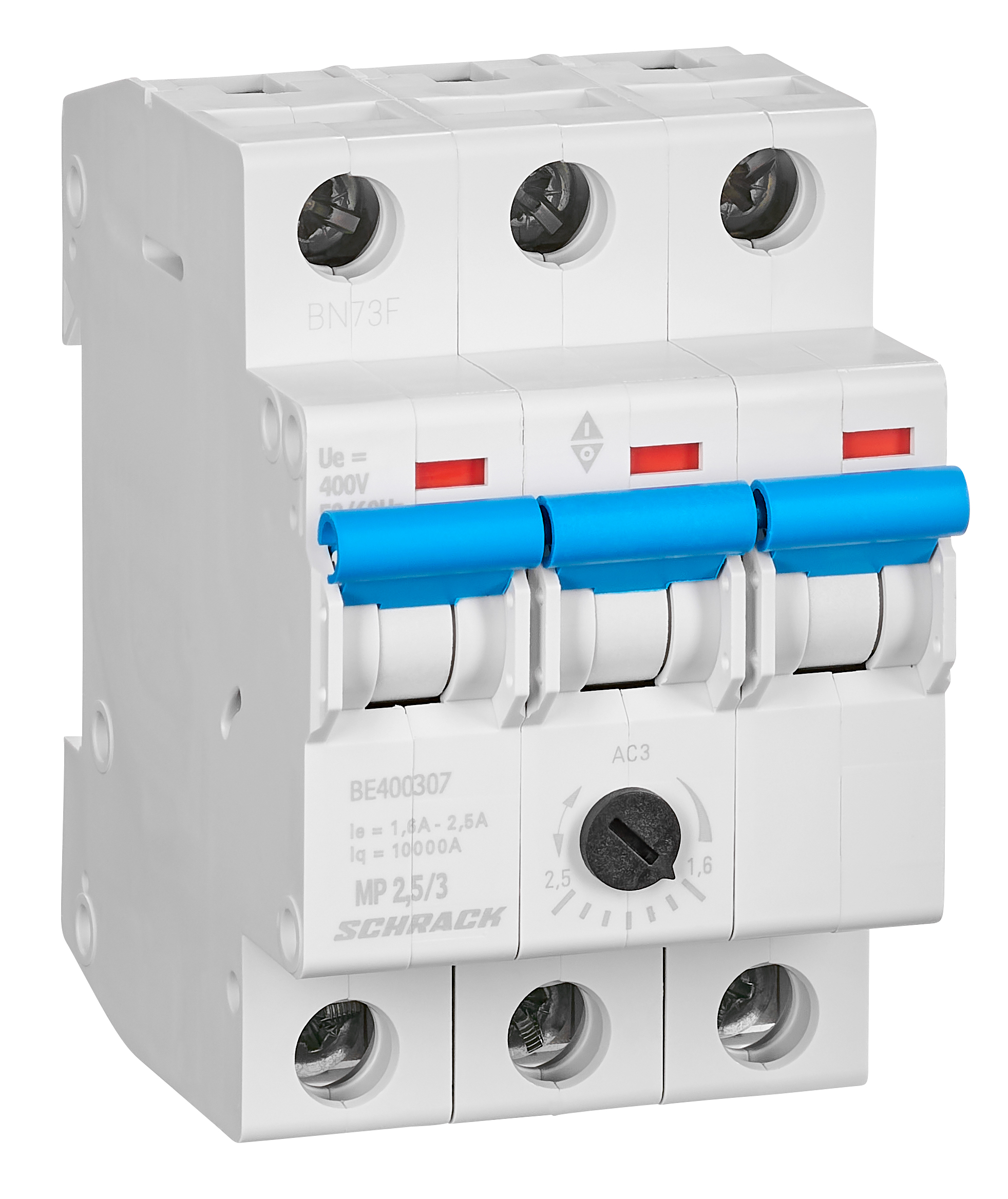

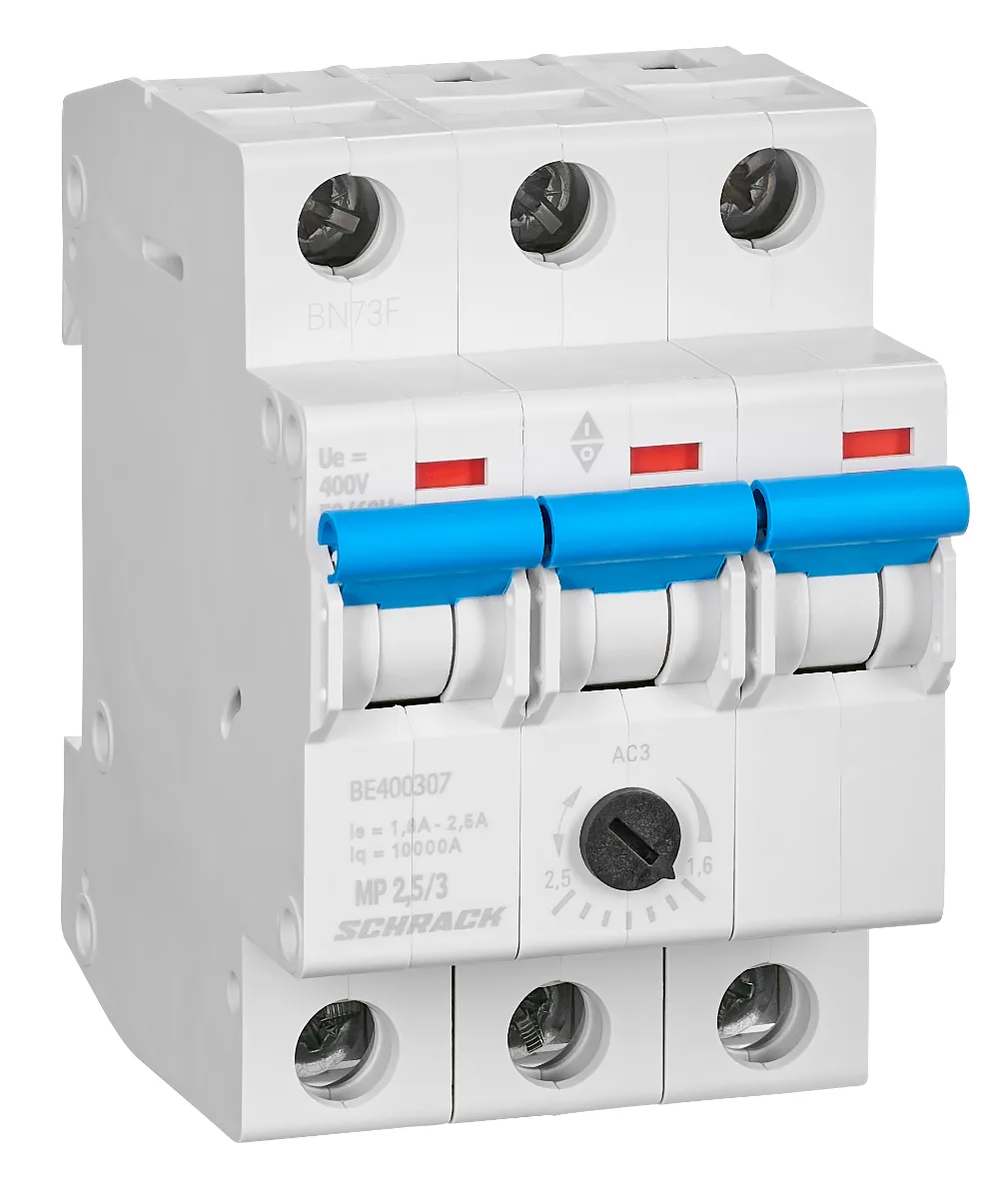

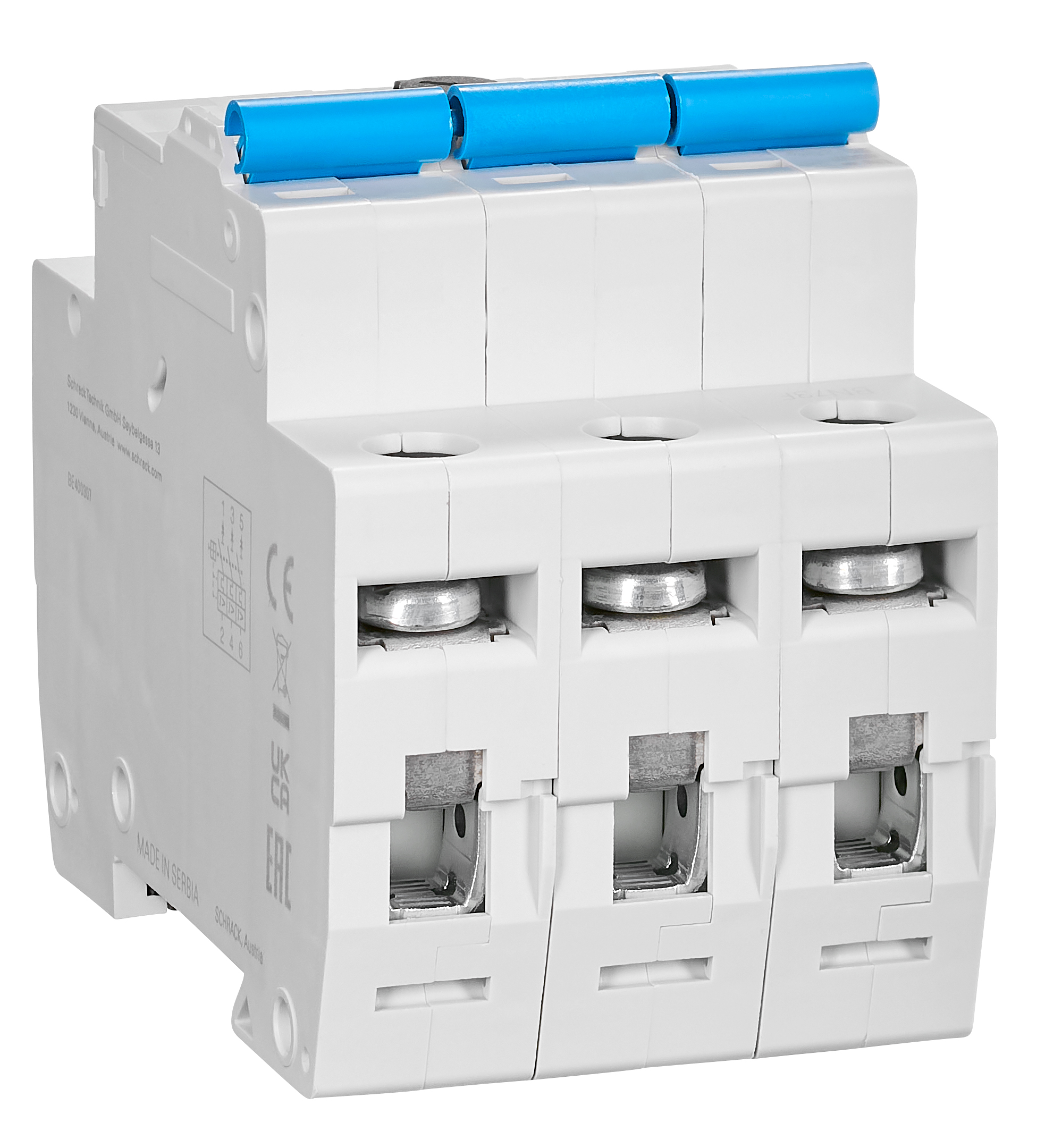

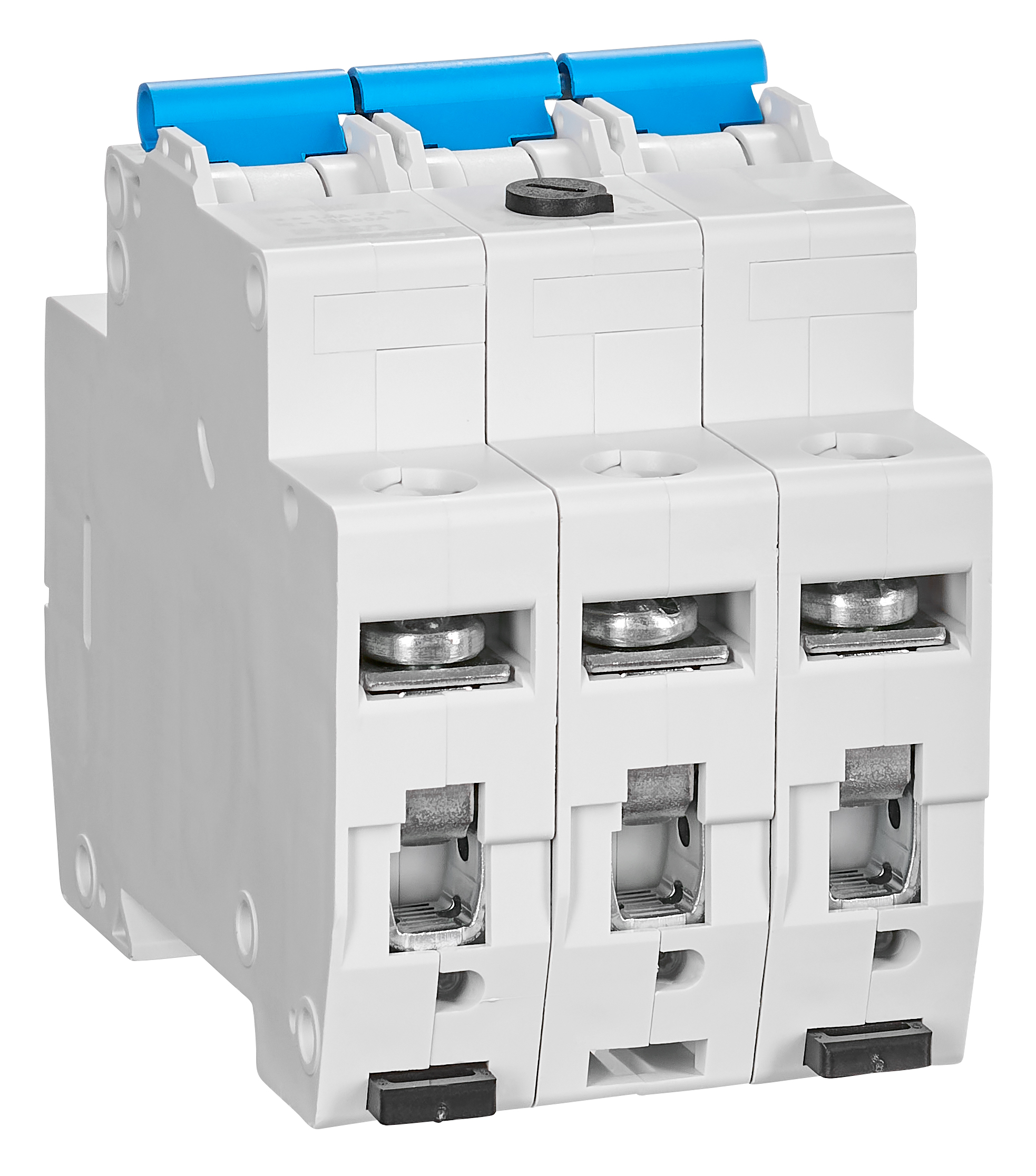

Motor Protection Switch 1.6-2.5A/3 BE4

Motor protection switch designed for protecting asynchronous electric motors against overload and short circuit conditions. The device provides reliable protection of electrical equipment as part of distribution boards and control cabinets.

Key Characteristics:

• Rated Current: 1.6–2.5 A
• Current Adjustment Range: 1–6.3 A
• Configuration: 3-pole
• Standard: EN 60947-2:2006 + A1:2009 + A2:2013
• Power Loss: 5.50 W
• Temperature Range: from –40 °C to +70 °C

Dimensions and Weight:

• Width: 53.40 mm
• Height: 80.00 mm
• Depth: 71.00 mm
• Net Weight: 0.34 kg

Manufacturer: Schrack

Packaging: 1 pc., 4 pcs., 40 pcs.
