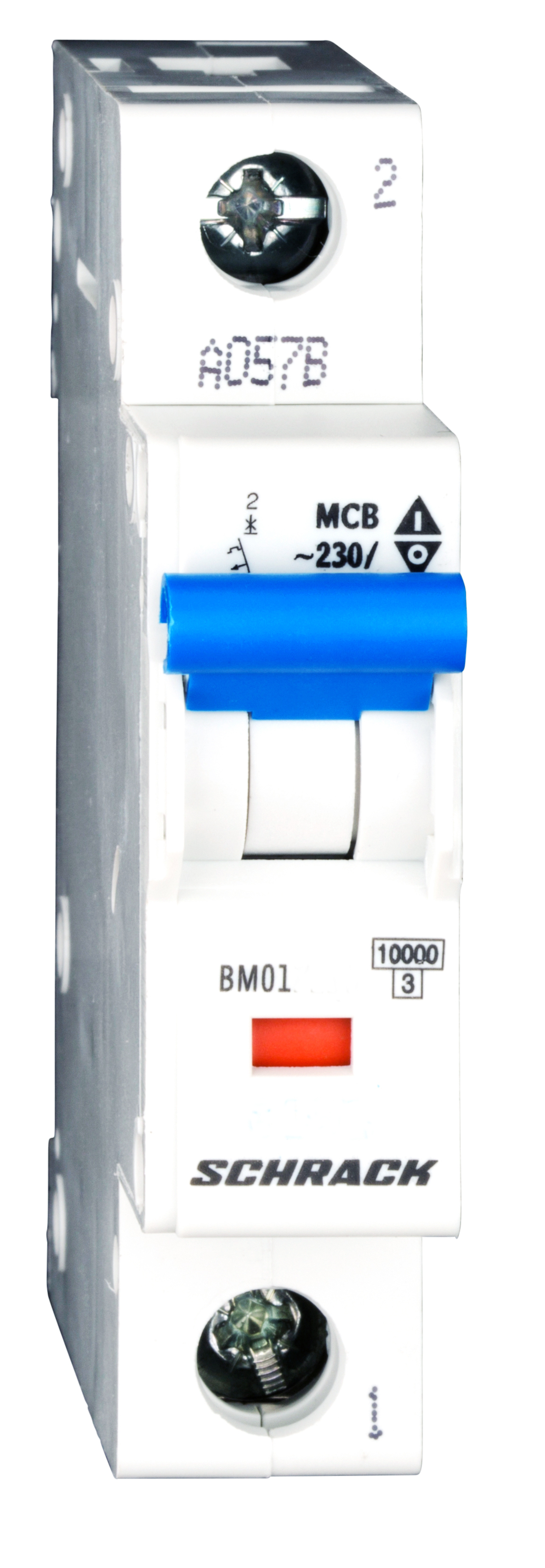

Automatic Circuit Breaker BM ME C25/1 10kA
Article: BM017125ME
3 747 ₸
To order
Single-pole automatic circuit breaker of the BMS0 series from manufacturer Schrack, designed to protect electrical circuits from overloads and short-circuit currents.
Main characteristics:
- Rated current: 25A
- Switching capacity: 10kA
- Tripping characteristic: C (trips at 5-10 times rated current)
- Number of poles: 1
- Design: AC-MCB-ME (single-phase modular circuit breaker)
- Device type: BMS0-ME
Physical characteristics:
- Dimensions (W×H×D): 17.80 × 83.00 × 74.90 mm
- Net weight: 0.12 kg
- Mounting width: one DIN module
- Power loss: 3.00W
Operating conditions:
- Temperature range: -40°C to +75°C
Conformity standards:
- EN 60898-1:2019 (automatic circuit breakers for overcurrent protection)
- EN 60947-2:2006 + A1:2009 + A2:2013 (low-voltage switchgear and control gear)
- EN 60947-2:2017 + A1:2020 (low-voltage switchgear and control gear)
- EN 63000:2018 (information on hazardous substances in electrical products)
Available packaging options: 1 pcs., 12 pcs., 120 pcs.
EAN code: 9004840527131
| EAN code | 9004840527131 |
|---|---|
| Net width | 17.80 mm |
| Net height | 83.00 mm |
| Net depth | 74.90 mm |
| Net weight | 0.12 kg |
| Power loss | 3.00 W |
| Min. ambient temperature | -40°C |
| Max. ambient temperature | 75°C |
| Characteristic | C |
| Pole | 1 |
| Rated current | 25A |
| Type | BMS0-ME |
| Series | BMS0 |
| Switching capacity | 10kA |
| Design | AC-MCB-ME |
| Standard | EN 60898-1:2019, EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018 |
| Manufacturer | Schrack |
| Packaging | 1 pcs., 12 pcs., 120 pcs. |
