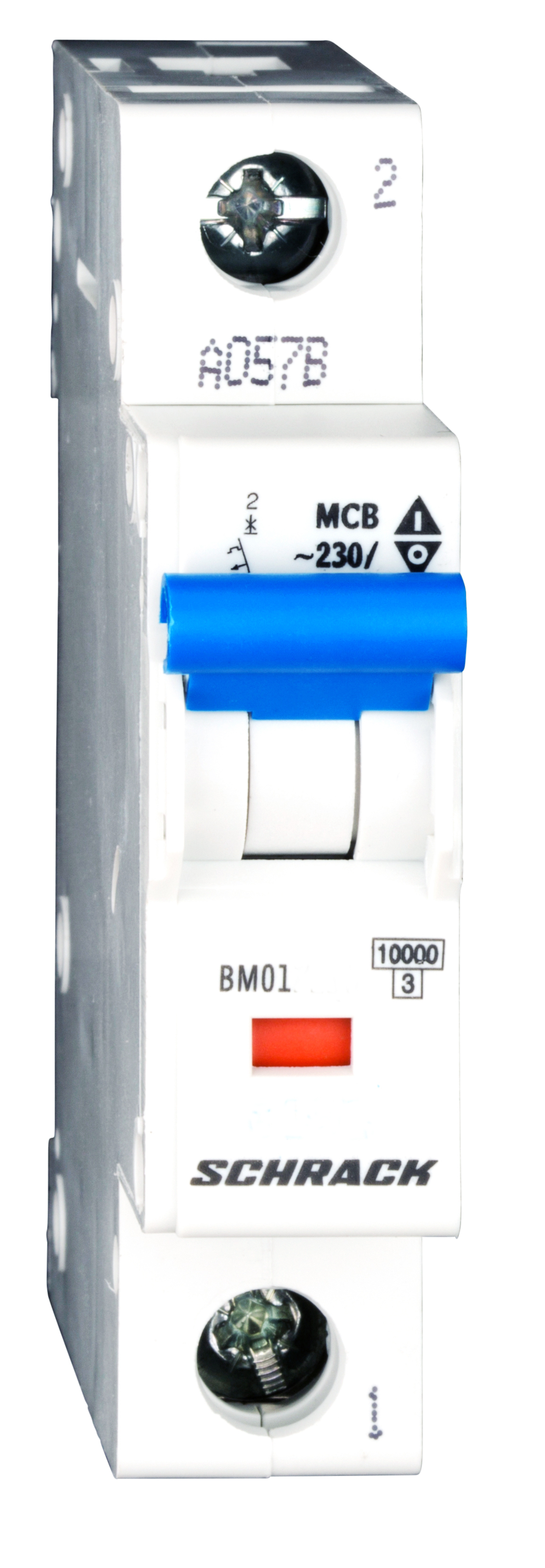

Automatic Circuit Breaker BM ME C63/1 10kA
Article: BM017163ME
6 375 ₸
To order
Single-pole automatic circuit breaker from the BMS0-ME series with rated current of 63 A and switching capacity of 10 kA. Designed to protect alternating current electrical circuits from overloads and short-circuit currents.
Main Parameters:
- Trip Characteristic: C (standard for residential and industrial networks)
- Rated Voltage: AC 230/400 V
- Number of Poles: 1
- Operating Temperature Range: from -40°C to +75°C
- Power Loss: 5.20 W
- Dimensions: 17.80 × 83.00 × 74.90 mm
- Weight: 0.12 kg
Compliance with International Standards:
The circuit breaker is designed and certified in accordance with international standards EN 60898-1:2019, EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018.
Design Execution: AC-MCB-ME (modular circuit breaker for installation in distribution panels on DIN-rail).
Manufacturer: Schrack (Austrian company with world reputation in electrical engineering).
Available Packaging Options: 1 pc., 12 pcs., 120 pcs.
| EAN Code | 9004840527179 |
|---|---|
| Width (net) | 17.80 mm |
| Height (net) | 83.00 mm |
| Depth (net) | 74.90 mm |
| Weight (net) | 0.12 kg |
| Power Loss | 5.20 W |
| Min. Ambient Temperature | -40°C |
| Max. Ambient Temperature | 75°C |
| Characteristic | C |
| Poles | 1 |
| Rated Current | 63 A |
| Type | BMS0-ME |
| Series | BMS0 |
| Switching Capacity | 10 kA |
| Execution | AC-MCB-ME |
| Standards | EN 60898-1:2019, EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018 |
| Manufacturer | Schrack |
| Packaging | 1 pc., 12 pcs., 120 pcs. |
