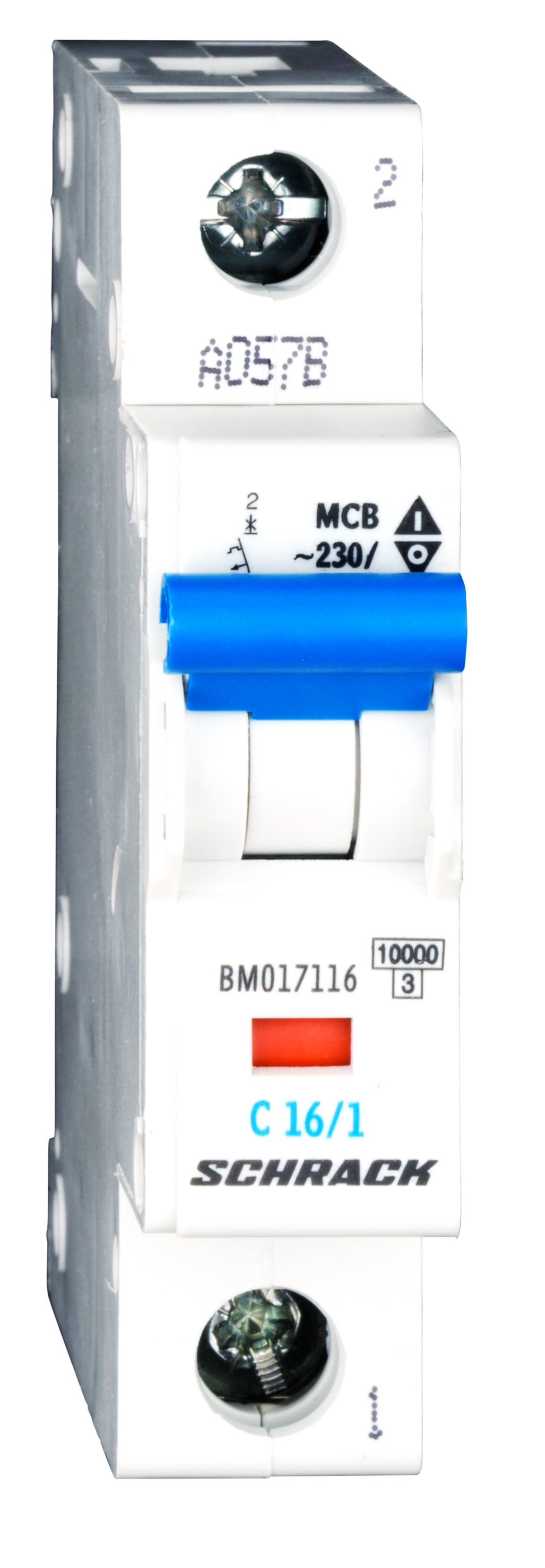

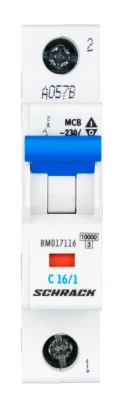

Automatic Circuit Breaker BM C16/1 10kA
1 / 7
Automatic Circuit Breaker BM C16/1 10kAAutomatic Circuit Breaker BM C16/1 10kAAutomatic Circuit Breaker BM C16/1 10kAAutomatic Circuit Breaker BM C16/1 10kAAutomatic Circuit Breaker BM C16/1 10kAAutomatic Circuit Breaker BM C16/1 10kAAutomatic Circuit Breaker BM C16/1 10kA

Automatic Circuit Breaker BM C16/1 10kA

Article: BM017116--

Автоматические выключатели BM

4 660 ₸

To order
WhatsAppTelegram

A single-pole automatic circuit breaker from Schrack's BMS0 series designed to protect electrical circuits from overloads and short circuits.

Key Specifications:

  • Rated Current: 16A
  • Breaking Capacity: 10kA
  • Trip Characteristic: C (for circuits with moderate inrush currents)
  • Type: AC-MCB (modular automatic circuit breaker for alternating current)
  • Number of Poles: 1
  • Power Loss: 2.20W

Operating Temperature Range:

  • Minimum ambient temperature: -40°C
  • Maximum ambient temperature: 75°C

Dimensions and Weight:

  • Width: 17.80mm
  • Height: 83.00mm
  • Depth: 74.90mm
  • Net weight: 0.12kg

Standards Compliance:

The circuit breaker complies with EN 60898-1:2019, EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018.

Packaging Options: 1 pc., 12 pcs., 120 pcs.

EAN Code: 9004840391756

EAN Code9004840391756
Net Width17.80mm
Net Height83.00mm
Net Depth74.90mm
Net Weight0.12kg
Power Loss2.20W
Min. Ambient Temperature-40°C
Max. Ambient Temperature75°C
CharacteristicC
Poles1
Rated Current16A
TypeBMS0
SeriesBMS0
Breaking Capacity10kA
DesignAC-MCB
StandardsEN 60898-1:2019, EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018
ManufacturerSchrack
Packaging1 pc., 12 pcs., 120 pcs.
