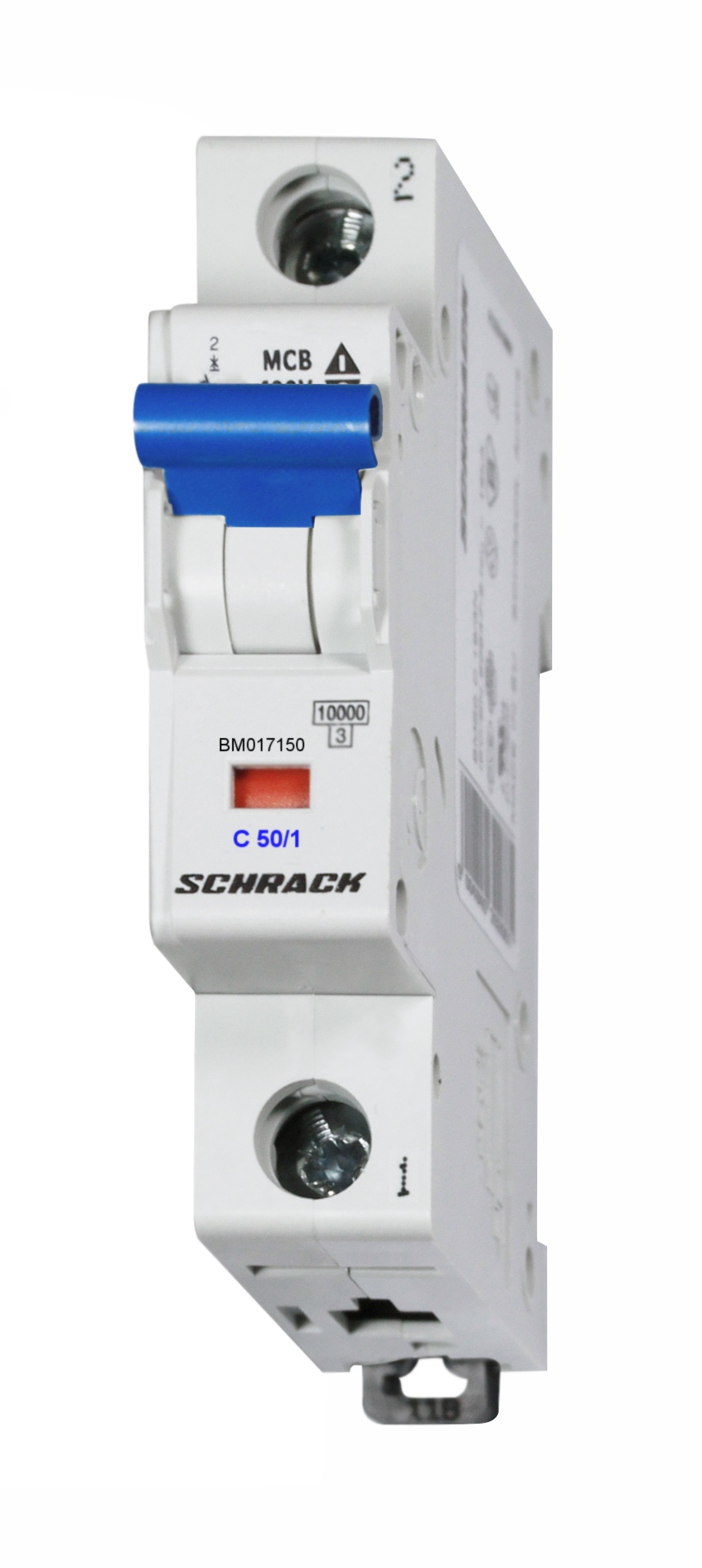

Automatic Circuit Breaker BM C50/1 10kA
Article: BM017150--
18 600 ₸
To order
The BM C50/1 modular automatic circuit breaker is designed to protect electrical circuits from overload and short circuit in AC power distribution networks. The device features a rated current of 50 A and breaking capacity of 10 kA, providing reliable protection in residential and industrial installations.
Technical Parameters:
- Single-pole design (1P) for connection to single-phase networks
- C-type tripping characteristic — suitable for circuits with moderate inrush currents
- Operating temperature range: −40°C to +75°C
- Power loss at rated current: 4.5 W
- Compact dimensions: width 17.80 mm, height 83 mm, depth 74.9 mm
- Weight: 0.12 kg
Standards Compliance: The device conforms to EN 60898-1:2019, EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018.
Manufacturer: Schrack. Available Packaging: 1 pcs., 12 pcs., 120 pcs.
| EAN Code | 9004840391800 |
|---|---|
| Width Net | 17.80 mm |
| Height Net | 83.00 mm |
| Depth Net | 74.90 mm |
| Weight Net | 0.12 kg |
| Power Loss | 4.50 W |
| Min. Ambient Temperature | −40°C |
| Max. Ambient Temperature | 75°C |
| Characteristic | C |
| Pole | 1 |
| Rated Current | 50 A |
| Type | BMS0 |
| Series | BMS0 |
| Breaking Capacity | 10 kA |
| Execution | AC-MCB |
| Standard | EN 60898-1:2019, EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018 |
| Manufacturer | Schrack |
| Packaging | 1 pcs., 12 pcs., 120 pcs. |
